Engine - Removal

REMOVAL - ENGINE ASSEMBLY
1. Release fuel pressure.





2. Disconnect negative cable at right strut tower (Fig. 7).
3. Mark hood position at hinges and remove hood.
4. Remove both wiper arms.
5. Remove both right and left cowl screens.
6. Remove strut tower brace.

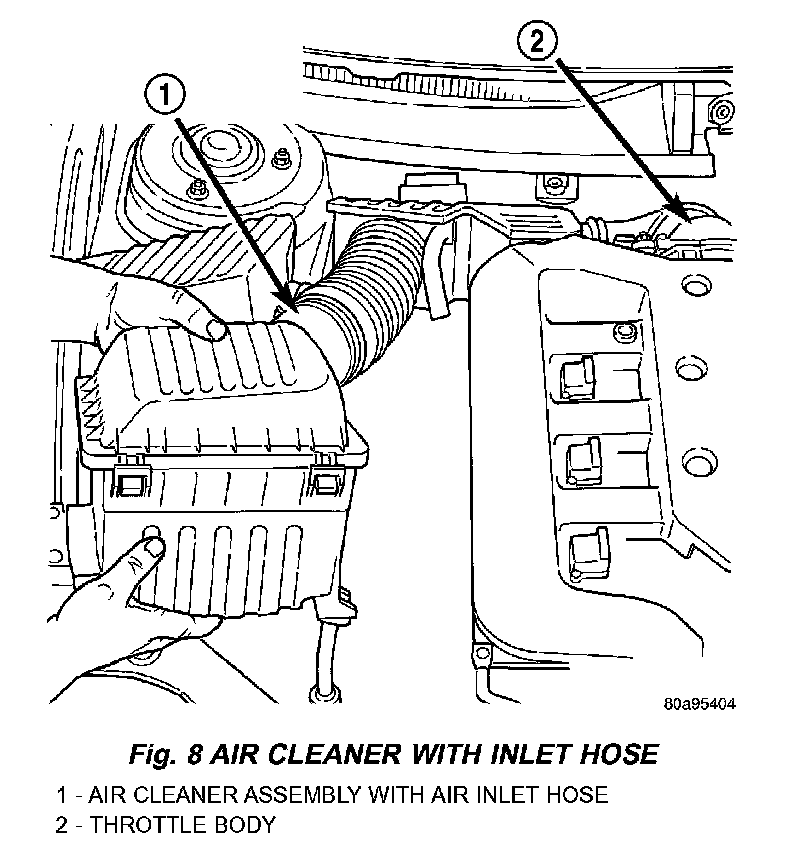

7. Remove air cleaner assembly with air inlet hose (Fig. 8).
8. Remove upper radiator crossmember.
9. Disconnect hood release cable from hood latch.
10. Drain cooling system.
11. Remove radiator fan.
12. Remove accessory drive belts.
13. Disconnect upper radiator hose at engine.
14. Disconnect lower radiator hose at radiator.
15. Disconnect engine oil and transmission cooler lines at radiator.
16. Remove power steering line bracket at left side of radiator.
17. Remove fasteners attaching air conditioning condenser to radiator.
18. Remove radiator.
19. Remove generator.
20. Remove power steering pump mounting bolts and set pump aside (Do not disconnect lines).
21. Remove air conditioning compressor mounting bolts and set aside (Do not disconnect lines).
22. Loosen and remove V-Band clamp at right exhaust manifold.
23. Remove front and rear support bracket fasteners attaching right side catalytic converter down pipe.
24. Disconnect fuel line.
25. Disconnect throttle and speed control cables from bracket.
26. Disconnect coolant hoses at coolant recovery/ pressure container.
27. Disconnect all vacuum hoses.
28. Disconnect ground straps at both cylinder heads.

CAUTION: Upper Intake manifold is a composite design. Therefore, manifold should be removed before lifting engine or damage to the manifold could occur.

29. Remove upper intake manifold and cover intake manifold openings with tape.
30. Disconnect heater hoses.
31. Remove rear throttle body support bracket.
32. Remove fastener for water pipe at transmission to block bolt.
33. Remove four upper transmission to block bolts.
34. Disconnect all electrical connections.
35. Hoist vehicle.
36. Drain engine oil.
37. Remove structural collar and mark flex plate to torque converter position.
38. Remove bolts holding torque converter to flex plate.
39. Disconnect both transmission oil cooler line brackets from engine.
40. Loosen and remove left exhaust manifold V-Band clamp.
41. For starter removal, loosen the left converter exhaust pipe band clamp and exhaust pipe support bracket at transaxle.
42. Remove starter.
43. Remove left engine mount bolts.
44. Remove right engine mount bolts.
45. Remove crankshaft position sensor.
46. Remove two lower transmission to block bolts.
47. Lower vehicle.
48. Attach lifting device to engine.
49. Insert floor jack with small block of wood under transmission pan to support transmission.
50. Hoist engine from engine compartment.
