Passenger Mirror Vertical Sensor Out of Range Low

Test 1 - 2:

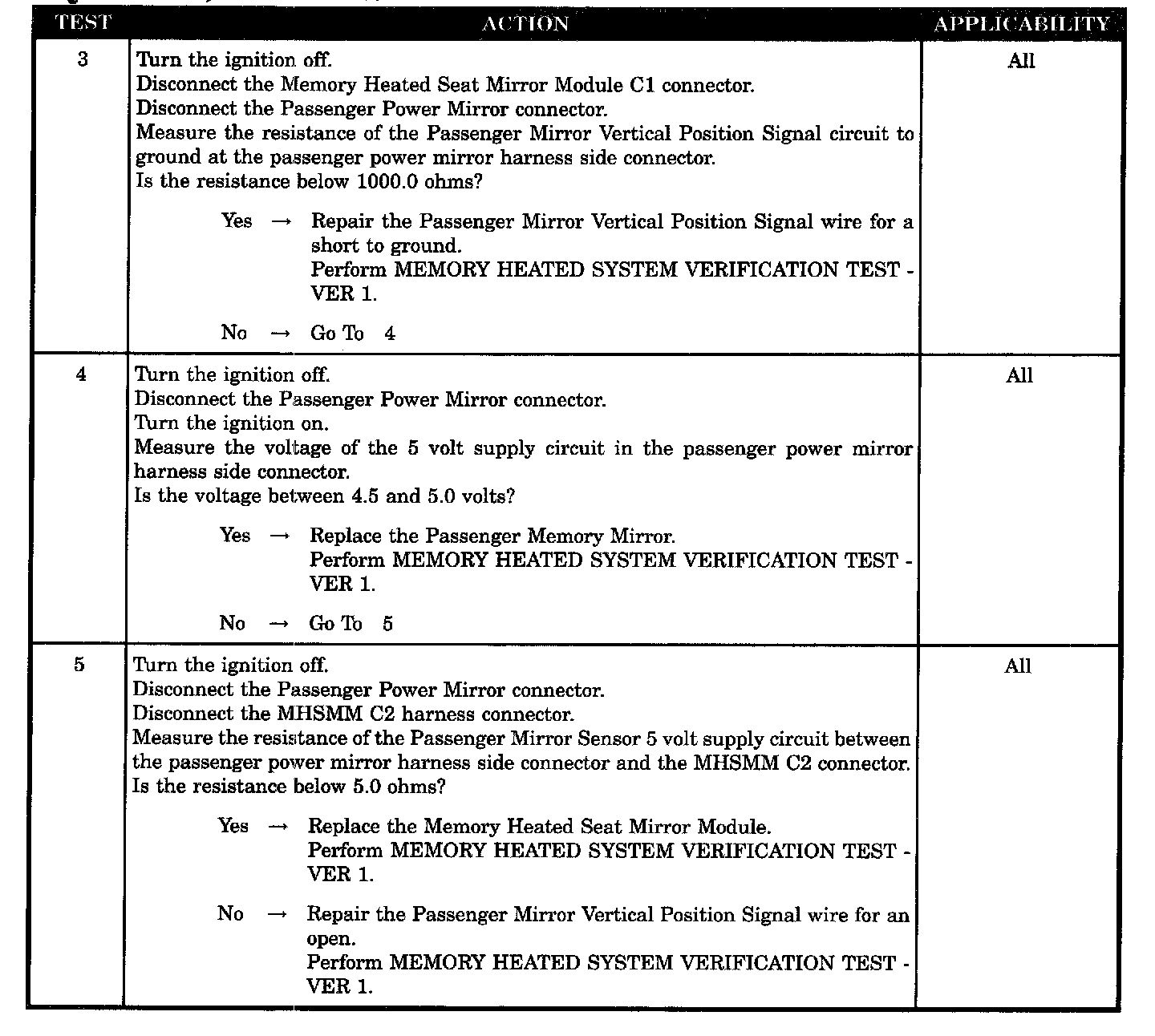

Test 3 - 5:

SYMPTOM
PASSENGER MIRROR VERTICAL SENSOR OUT OF RANGE LOW (IF EQUIPPED)

WHEN MONITORED
Ignition on.

SET CONDITION
This code is set when the mirror sensor feedback to the MHSMM is less than the mirror out of range low value stored in EEPROM.

POSSIBLE CAUSES
- MHSMM 5 volt supply
- 5 volt supply to mirror
- Mirror vertical circuit check
- Passenger mirror 5 volt supply open
- Passenger mirror vertical position signal wire open
- Passenger mirror vertical position signal wire shorted to ground
- Passenger memory mirror
