Driver Mirror Horizontal Sensor Out of Range Low

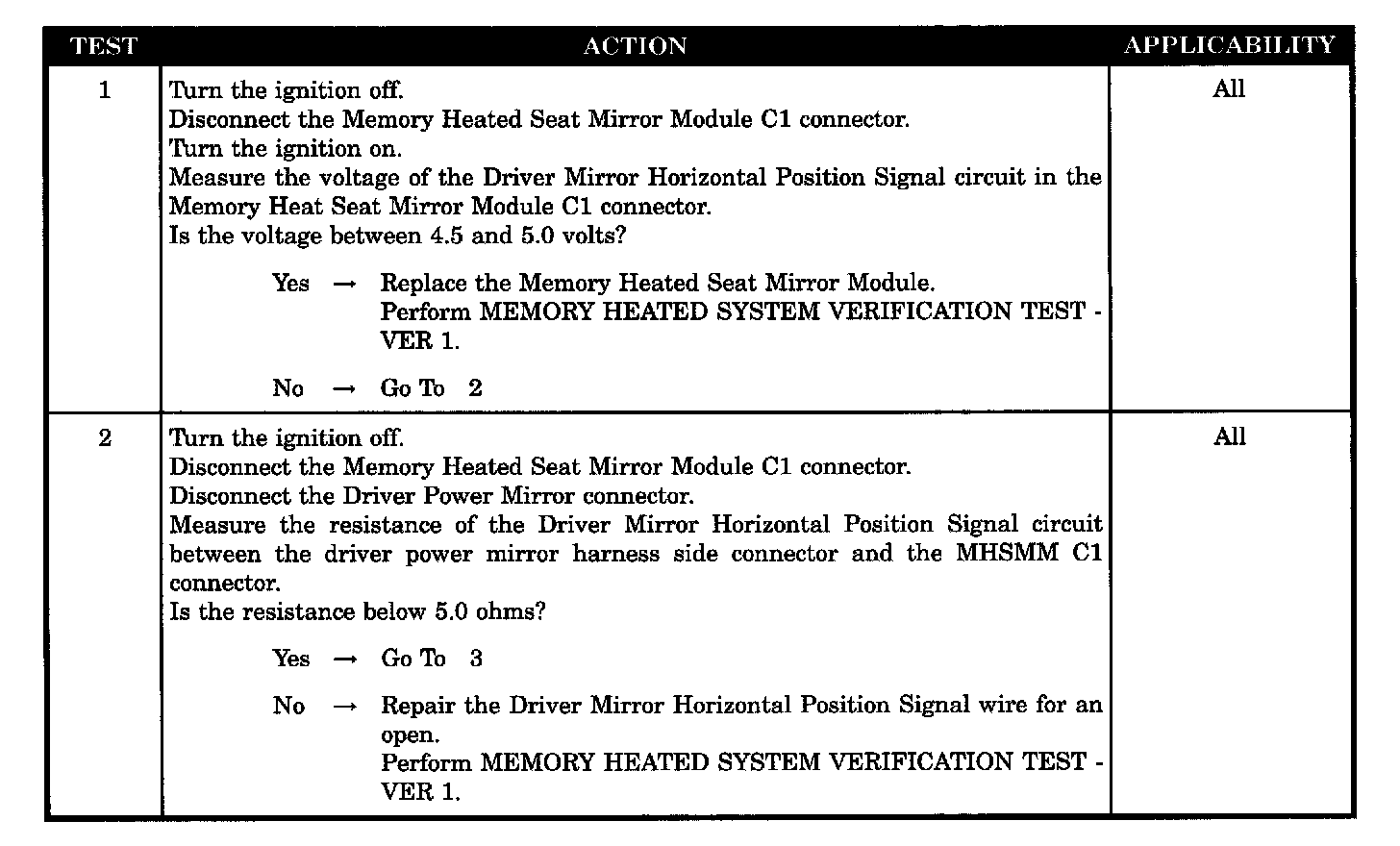

Test 1 - 2:

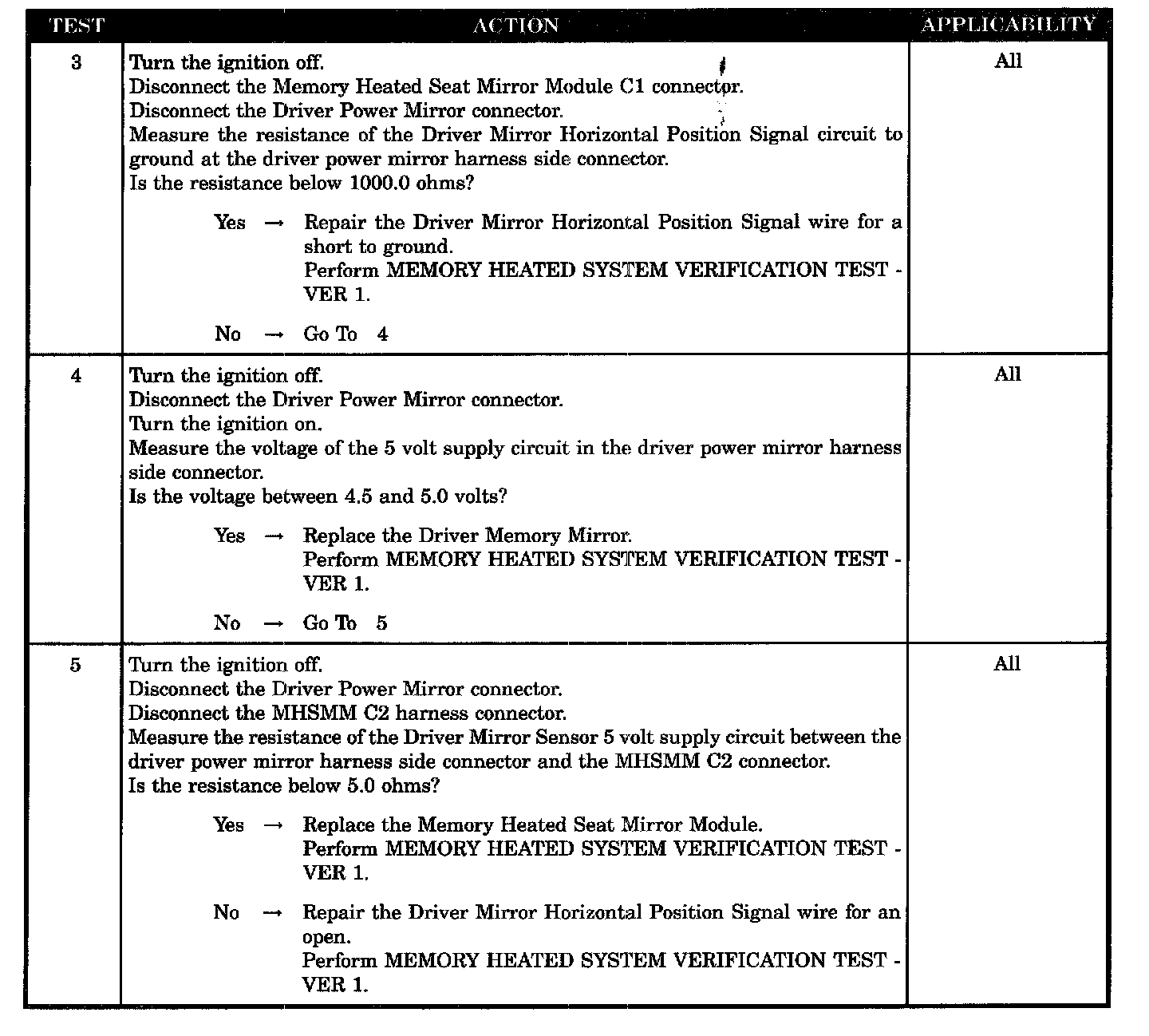

Test 3 - 5:

SYMPTOM
DRIVER MIRROR HORIZONTAL SENSOR OUT OF RANGE LOW

WHEN MONITORED
Ignition on.

SET CONDITION
This code is set when the mirror sensor feedback to the MHSMM is less than the mirror out of range low value stored in EEPROM.

POSSIBLE CAUSES
- MHSMM 5 volt supply
- 5 volt supply to mirror
- Driver mirror 5 volt supply open
- Driver mirror horizontal position signal wire open
- Driver mirror horizontal position signal wire shorted to ground
- Mirror horizontal circuit check
- Driver memory mirror
