Transmission Cooler: Description and Operation
TRANSMISSION OIL COOLERDESCRIPTION

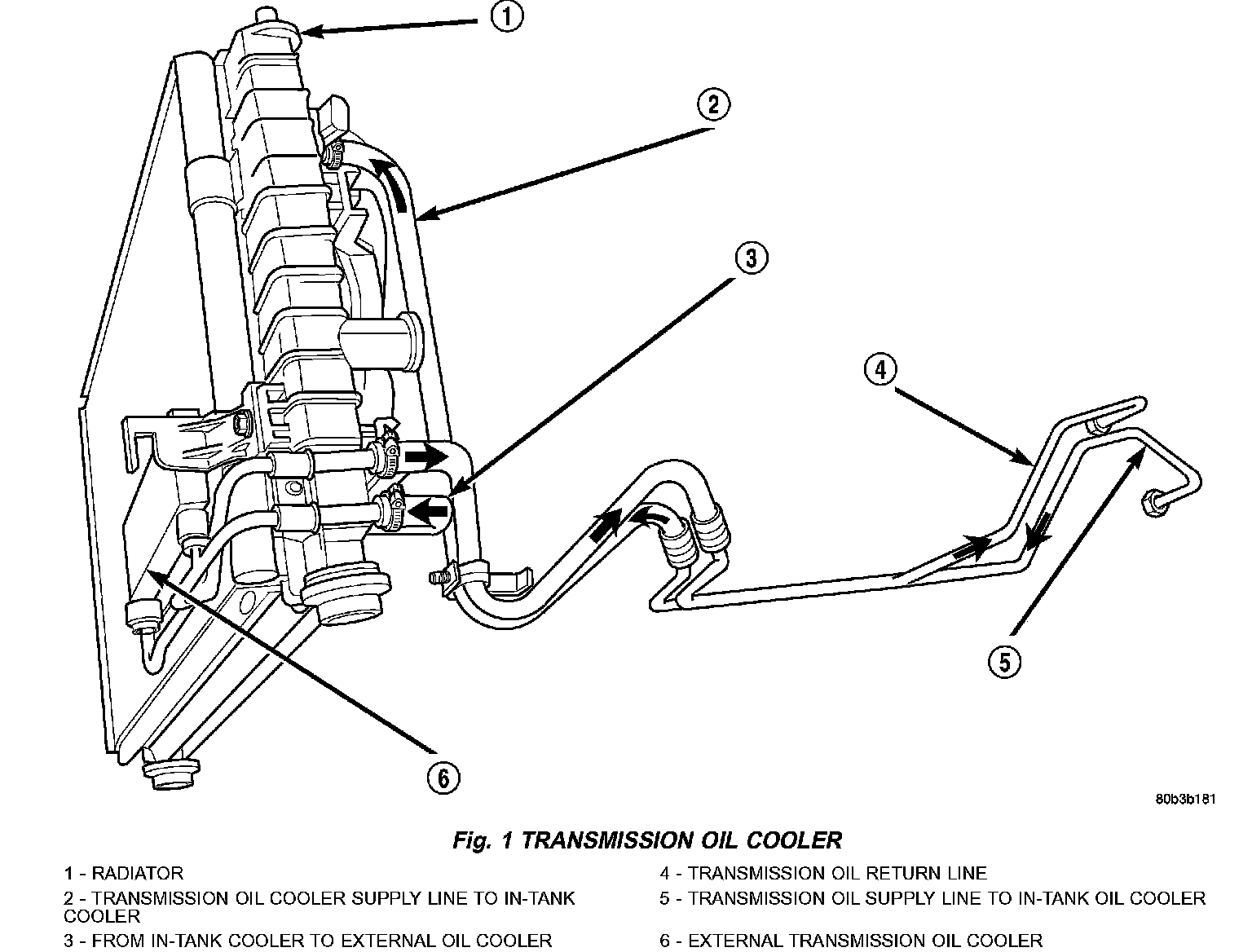

The transmission oil cooler circuit consists of a series connected internal cooler mounted inside the left radiator tank and an external oil cooler mounted to the front of the air conditioning condenser (Fig. 1).
OPERATION
Transmission oil is supplied to the internal (in tank) transmission cooler (Fig. 1). The oil is then routed to the external cooler mounted to the front side of the A/C condenser. Oil is then returned to the transmission from the external oil cooler (Fig. 1).
