Assembly

42LE - Automatic Transmission

ASSEMBLY

NOTE: If the valve body assembly is being reconditioned or replaced, it is necessary to perform the Quick Learn Procedure using the DRBIII (R) Scan Tool.

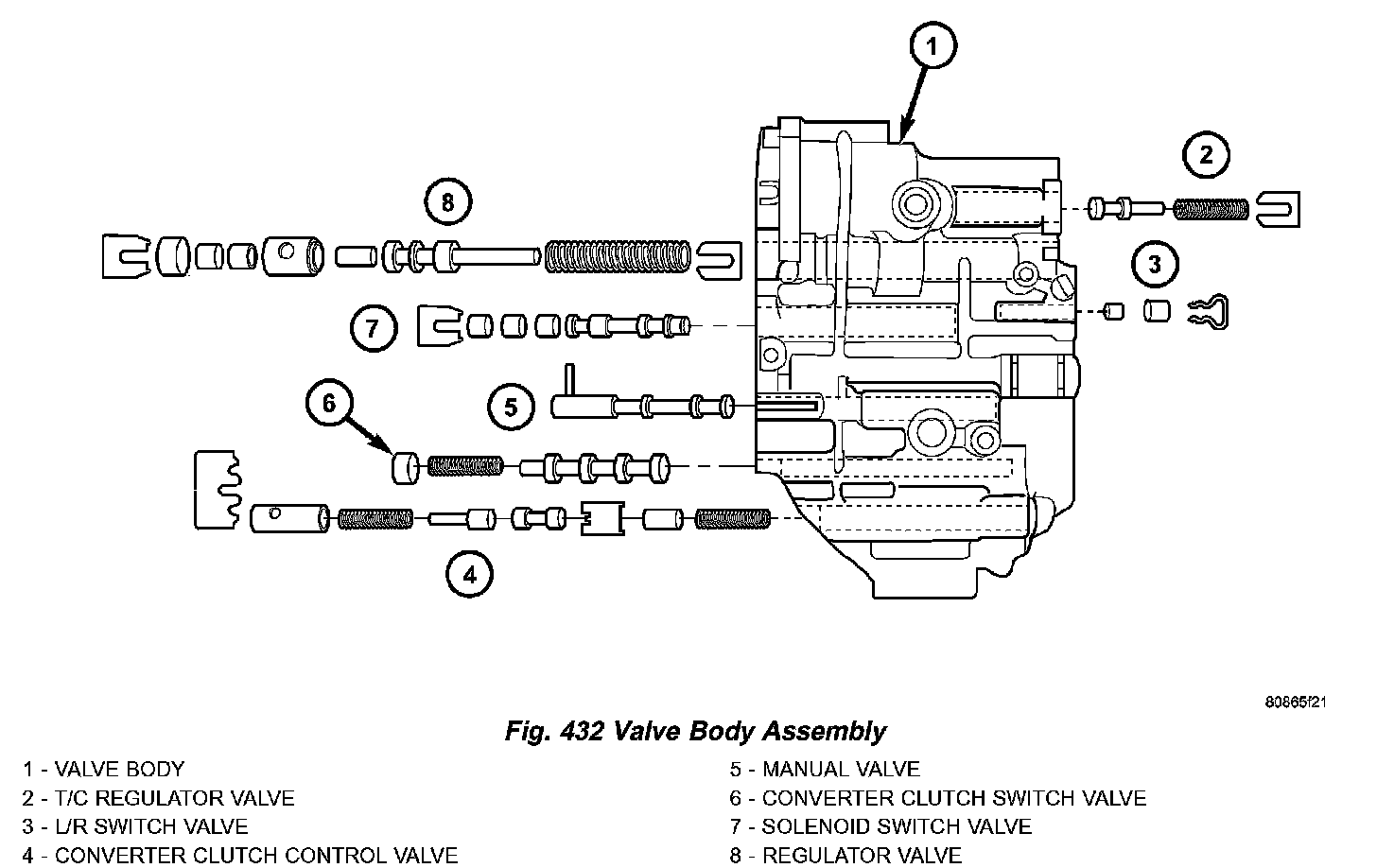

1. Install valves and springs as shown in (Fig. 432).





2. Install regulator valve spring retainer (Fig. 433).

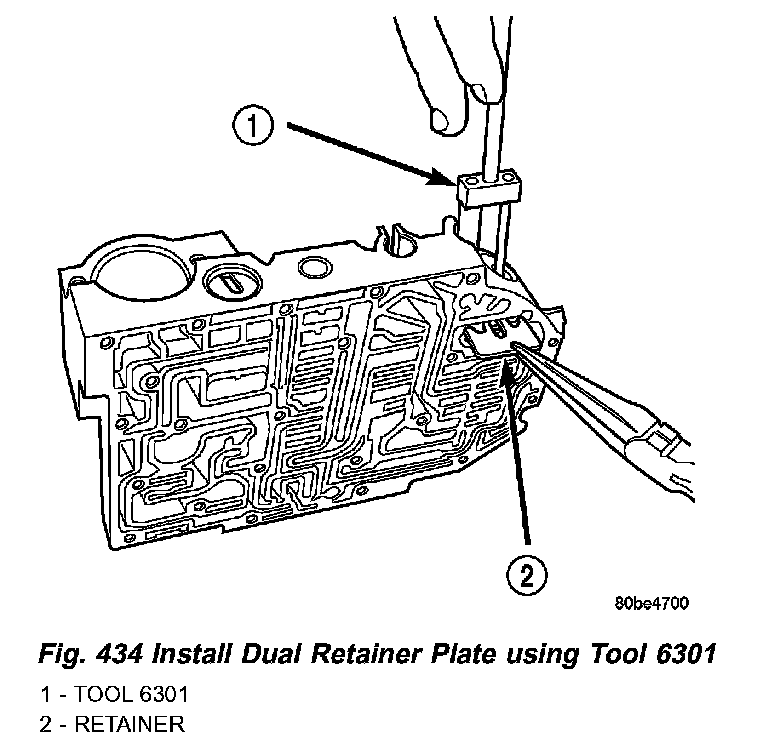

3. Install dual retainer plate using Tool 6301 (Fig. 434).

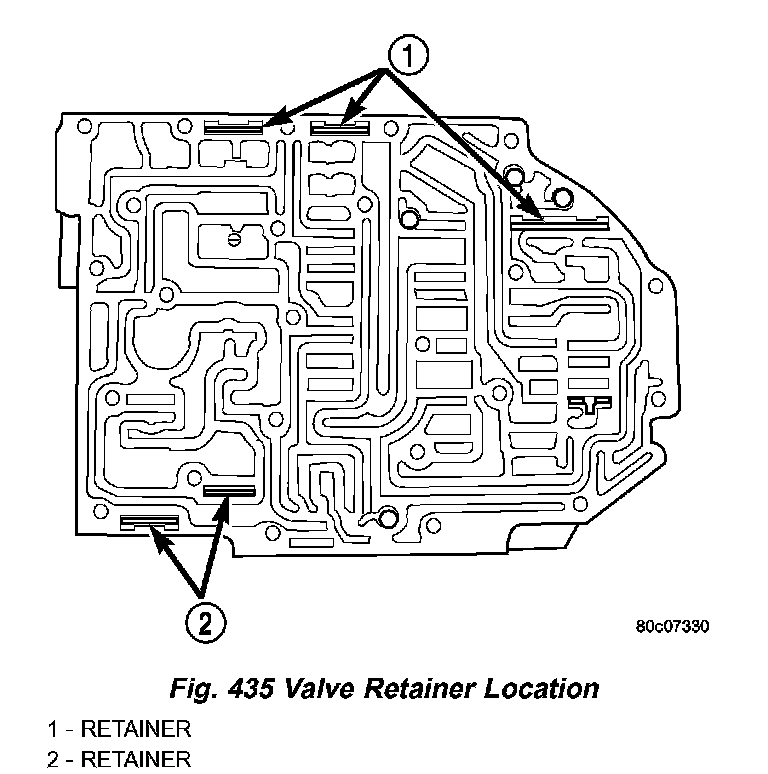

4. Verify that all retainers are installed as shown in (Fig. 435). Retainers should be flush or below valve body surface.

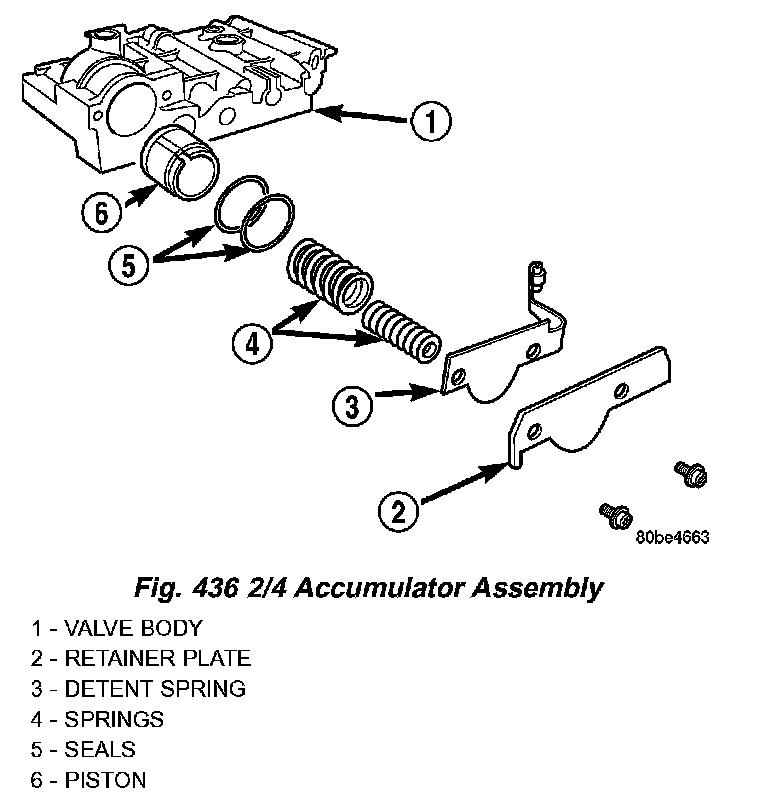

5. Install 2/4 Accumulator components as shown in (Fig. 436). Torque 2/4 Accumulator retainer plate to 5 Nm (45 inch lbs.).

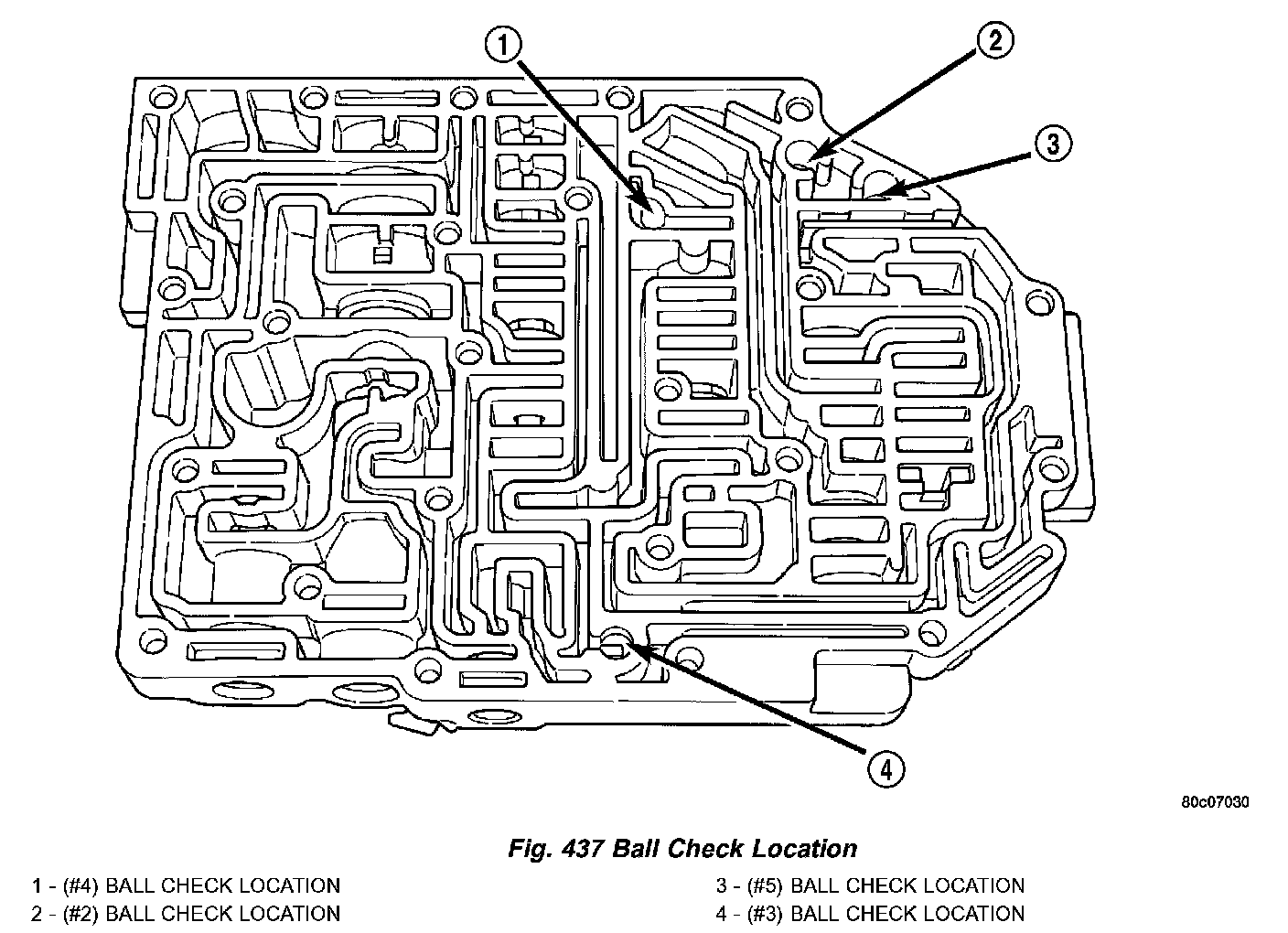

6. Install check balls into position as shown in (Fig. 437). If necessary, secure them with petrolatum or transmission assembly gel for assembly ease.

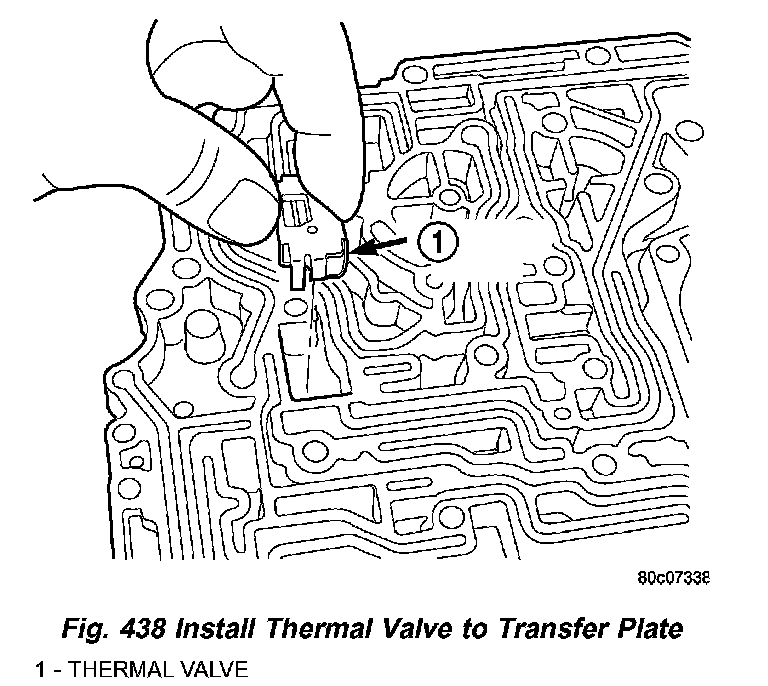

7. Install thermal valve to the transfer plate (Fig. 438).

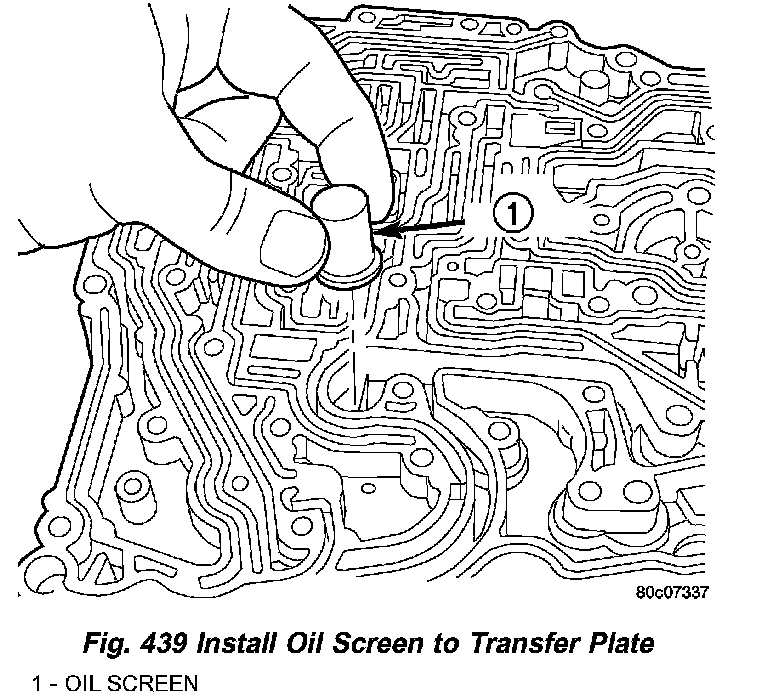

8. Install oil screen to transfer plate (Fig. 439).

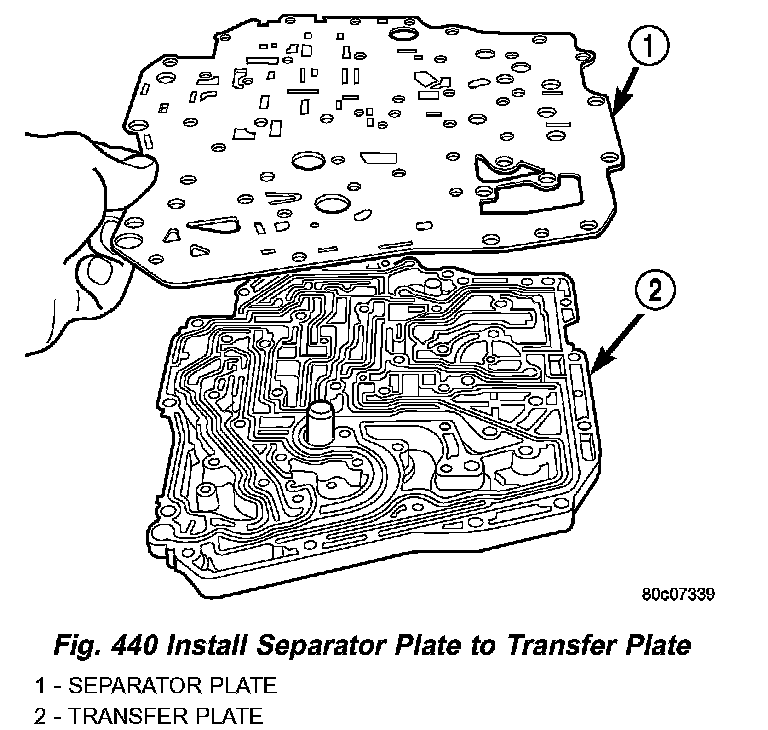

9. Install separator plate to transfer plate (Fig. 440).

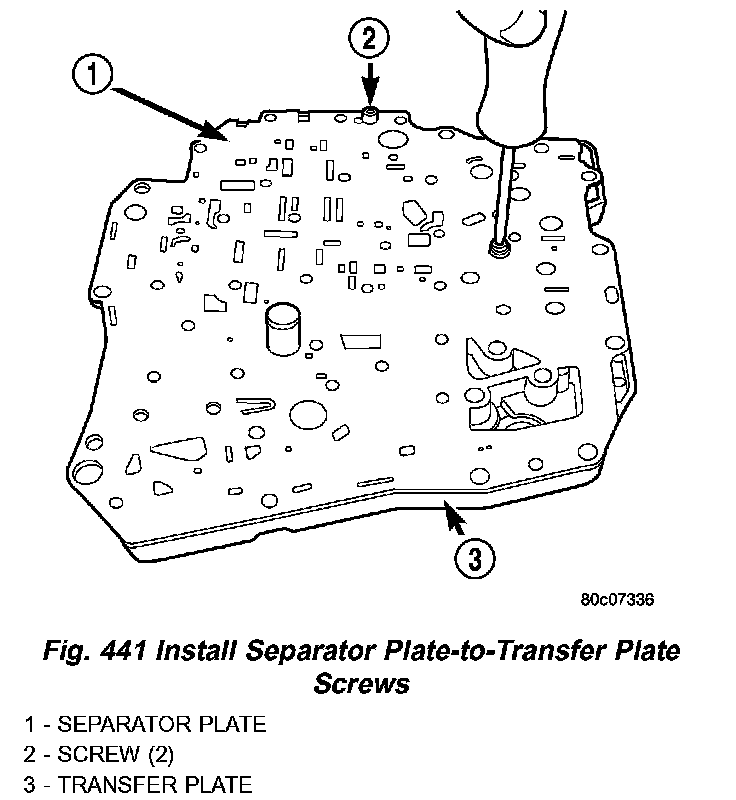

10. Install the two separator plate-to-transfer plate screws (Fig. 441).

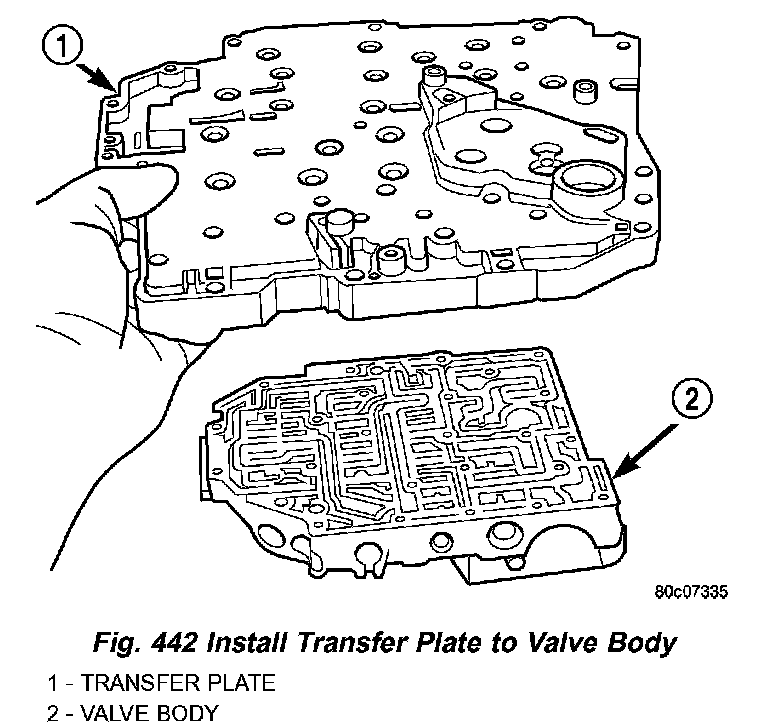

11. Install the transfer plate to the valve body (Fig. 442).

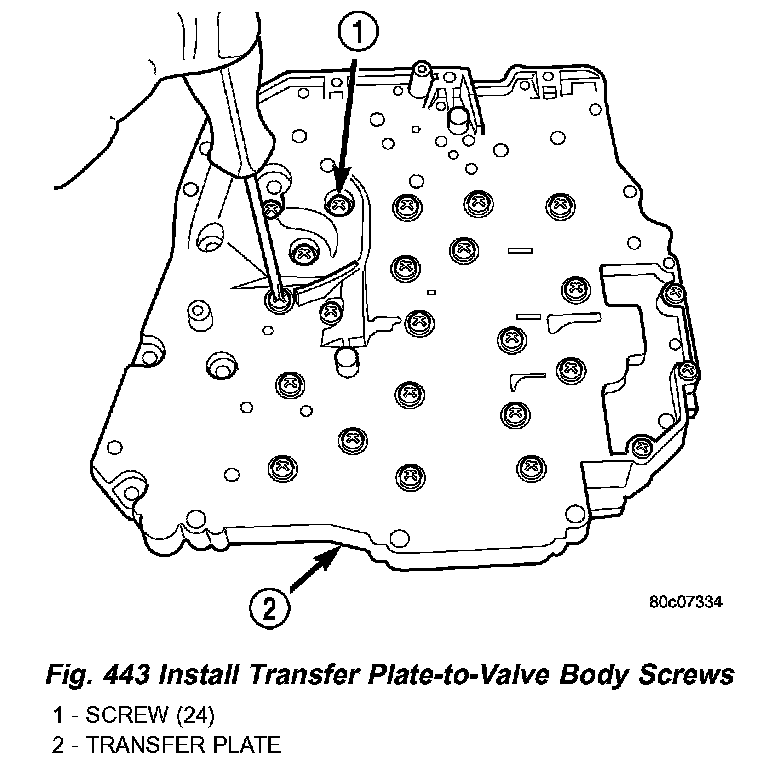

12. Install the transfer plate-to-valve body screws (Fig. 443) and torque to 5 Nm (45 inch lbs.).

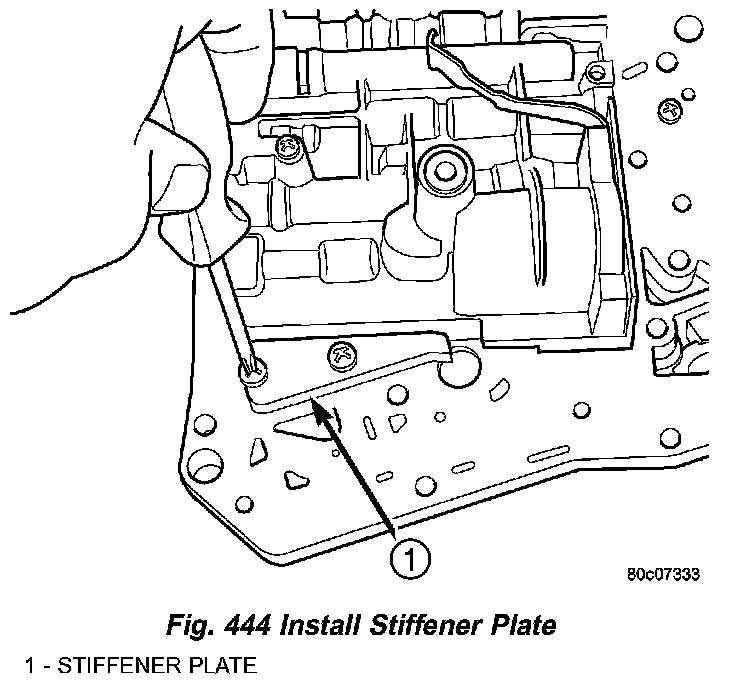

13. Install the stiffener plate (Fig. 444).





14. Install the solenoid/pressure switch assembly and to the transfer plate (Fig. 445) and torque to 6 Nm (35 inch lbs.).

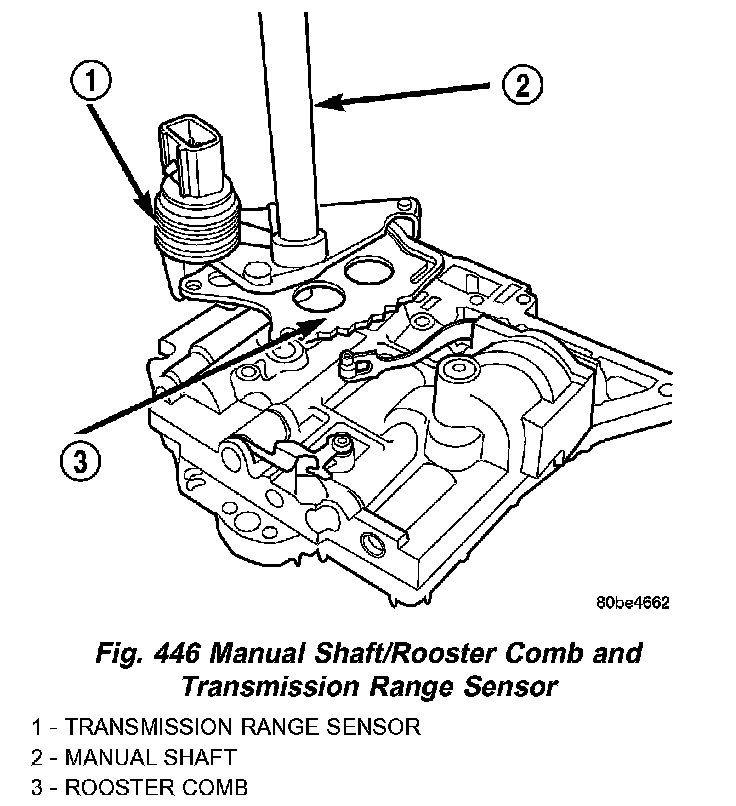

15. Install the manual shaft/rooster comb and transmission range sensor to the valve body (Fig. 446).





16. Install the TRS/manual shaft retaining screw (Fig. 447) and torque to 5 Nm (45 inch lbs.).
17. Install manual shaft seal.
