Shift Solenoid Position Sensor/Switch: Service and Repair
42LE - Automatic TransmissionSOLENOID/PRESSURE SWITCH ASSY
REMOVAL
NOTE: If the Solenoid/Pressure Switch Assembly is being replaced, the Quick Learn Procedure must be performed.
1. Raise vehicle on hoist.
2. Remove valve body assembly from transaxle.

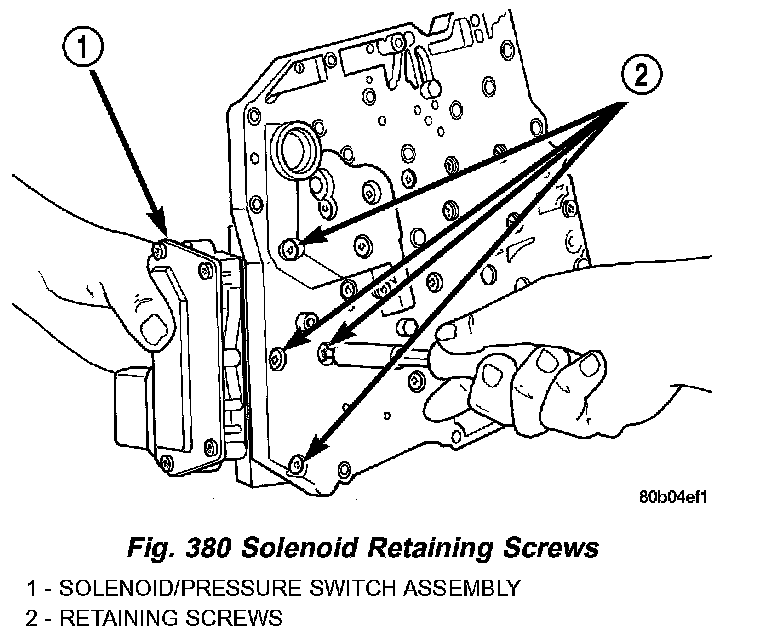

3. Remove Solenoid/Pressure Switch Assembly retaining screws from solenoid (Fig. 380).

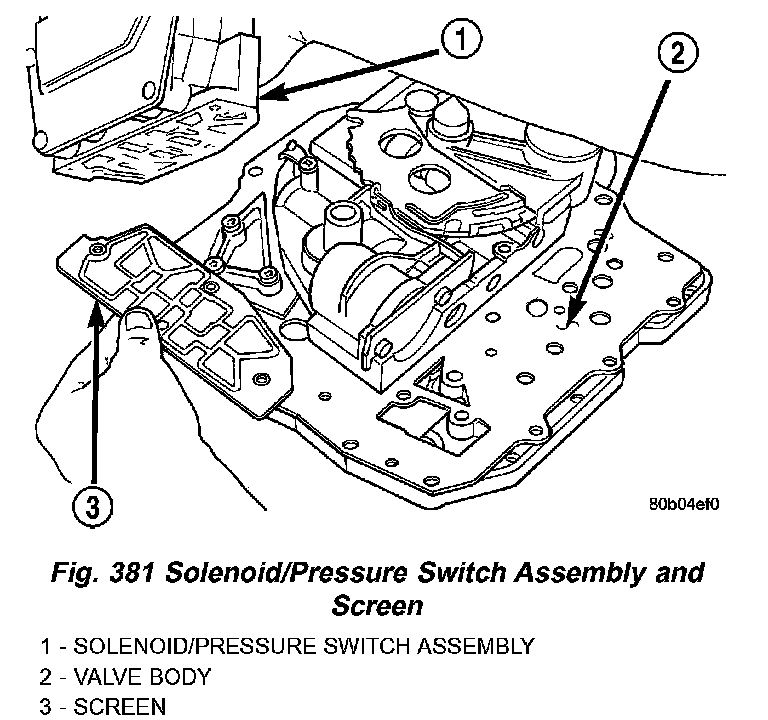

4. Remove Solenoid/Pressure Switch Assembly and screen from valve body (Fig. 381).
INSTALLATION
NOTE: If the Solenoid/Pressure Switch assembly is being replaced, the Quick Learn Procedure must be performed.
1. Install Solenoid/Pressure Switch Assembly and screen to the separator and transfer plates (Fig. 381).
2. Install and tighten retaining screws (Fig. 380) to 6 Nm (35 inch lbs.) torque.
3. Install valve body.
