Standard Procedures
42LE - Automatic TransaxleSTANDARD PROCEDURE - Fluid Level and Condition Check
NOTE: The transmission and differential have separate oil sumps. The transmission sump requires automatic transmission fluid. Refer to proper fluid required for this transaxle. The differential sump requires petroleum based hypoid gear lube. Refer to proper fluid required for this differential.
TRANSMISSION SUMP - FLUID LEVEL CHECK
The transmission sump has a dipstick to check oil similar to most automatic transmissions. It is located on the left side of the engine. Be sure to wipe all dirt from dipstick handle before removing.

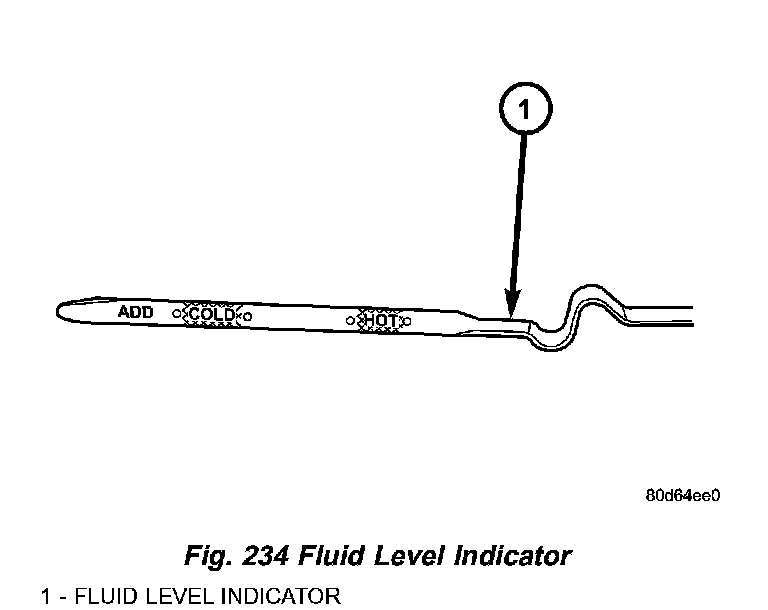

The torque converter fills in both the P Park and N Neutral positions. Place the selector lever in P Park to be sure that the fluid level check is accurate. The engine should be running at idle speed for at least one minute, with the vehicle on level ground. At normal operating temperature (approximately 82°C. or 180°F.), the fluid level is correct if it is in the HOT region (cross-hatched area) on the oil level indicator (Fig. 234). The fluid level should be in COLD region at 80' F fluid temperature. Adjust fluid level as necessary. Use only Mopar ATF +4 (Automatic Transmission Fluid-Type 9602).
FLUID LEVEL CHECK USING DR13
NOTE: Engine and Transaxle should be at normal operating temperature before performing this procedure.
1. Start engine and apply parking brake.
2. Connect DRBIII (R) scan tool and select transmission.
3. Select sensors.
4. Read the transmission temperature value.
5. Compare the fluid temperature value with the chart.

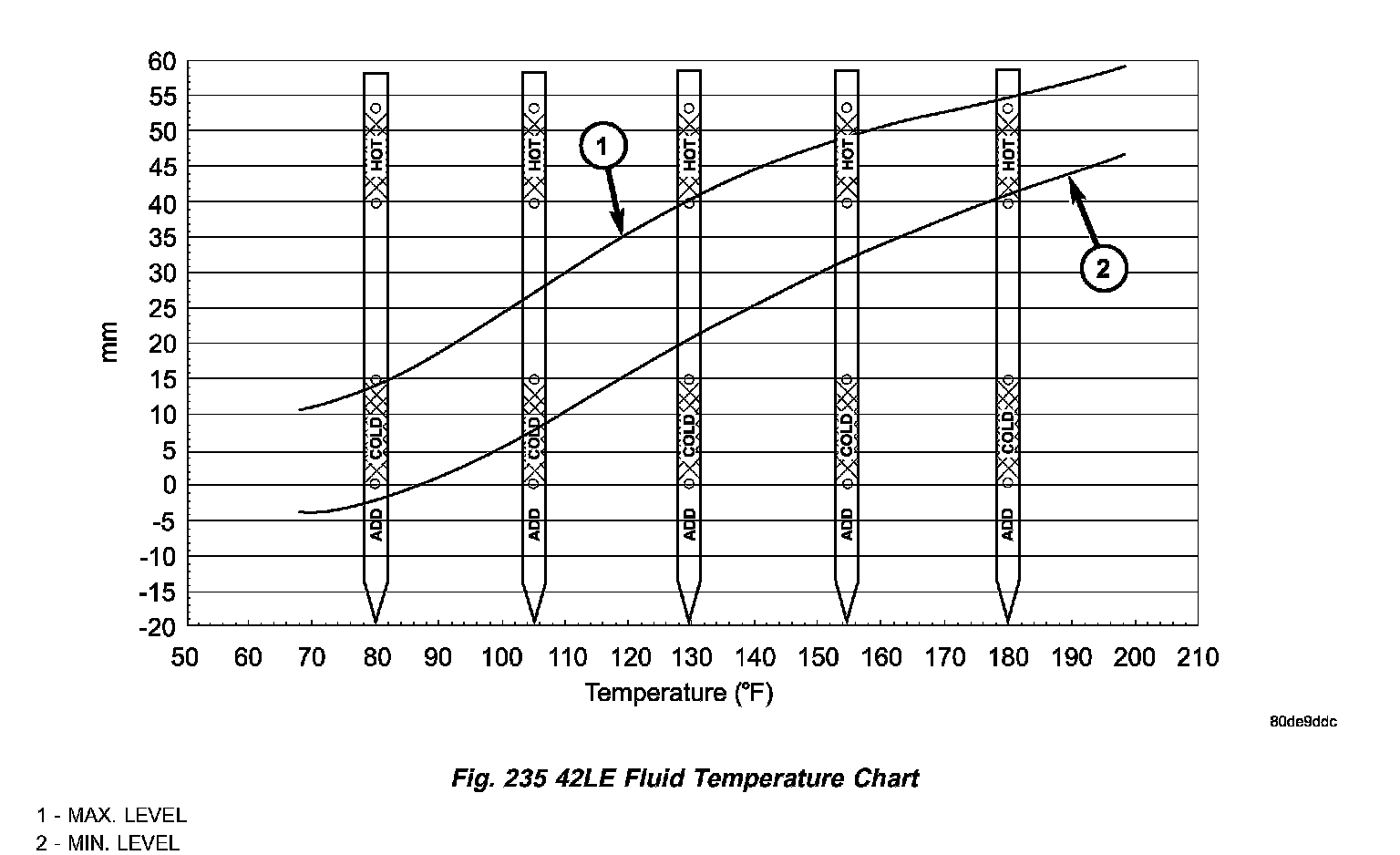

6. Adjust transmission fluid level shown on the dipstick according to the chart (Fig. 235). Use only Mopar ATF +4 Automatic Transmission Fluid (MS 9602).
7. Check transmission for leaks.
Low fluid level can cause a variety of conditions because it allows the pump to take in air along with the fluid. As in any hydraulic system, air bubbles make the fluid spongy, therefore, pressures will be low and build up slowly.
Improper filling can also raise the fluid level too high. When the transaxle has too much fluid, the gears churn up foam and cause the same conditions which occur with a low fluid level.
In either case, air bubbles can cause overheating and/or fluid oxidation, and varnishing. This can interfere with normal valve, clutch, and accumulator operation. Foaming can also result in fluid escaping from the transaxle vent where it may be mistaken for a leak.
Along with fluid level, it is important to check the condition of the fluid. When the fluid smells burned, and is contaminated with metal or friction material particles, a complete transaxle recondition is needed.
Be sure to examine the fluid on the dipstick closely. If there is any doubt about its condition, drain out a sample for a double check.
Mopar ATF +4 (Automatic Transmission Fluid Type 9602) when new is red in color. The ATF is dyed red so it can be identified from other fluids used in the vehicle such as engine oil or antifreeze. The red color is not permanent and is not an indicator of fluid condition. As the vehicle is driven, the ATF will begin to look darker in color and may eventually become brown. This is normal. ATF +4 also has a unique odor that may change with age. Consequently, odor and color cannot be used to indicate the fluid condition or the need for a fluid change.
After the fluid has been checked, seat the dipstick fully to seal out water and dirt.
