Fluid Diagrams

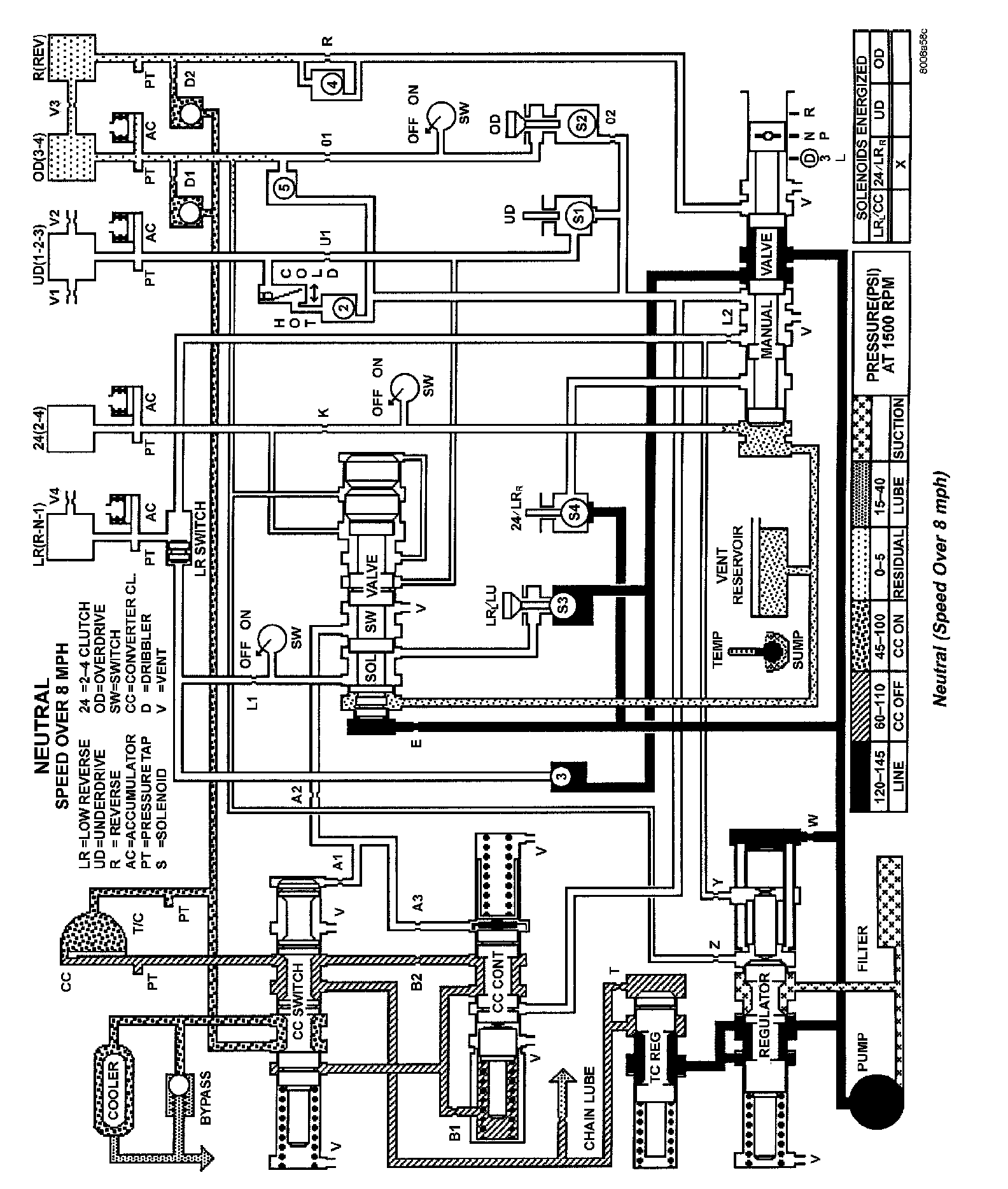

Neutral (Speed Over 8 Mph):

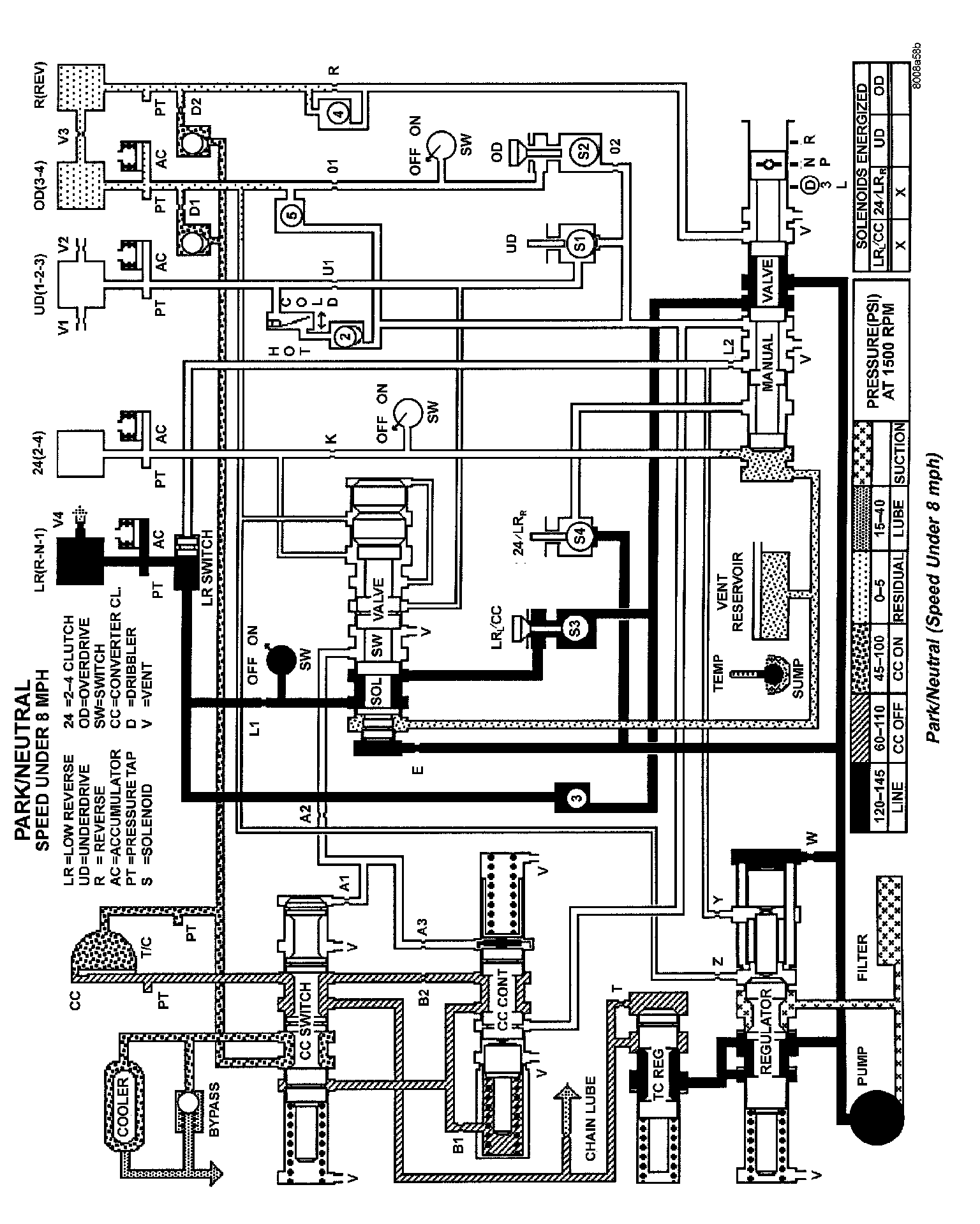

Park/Neutral (Speed Under 8 Mph:

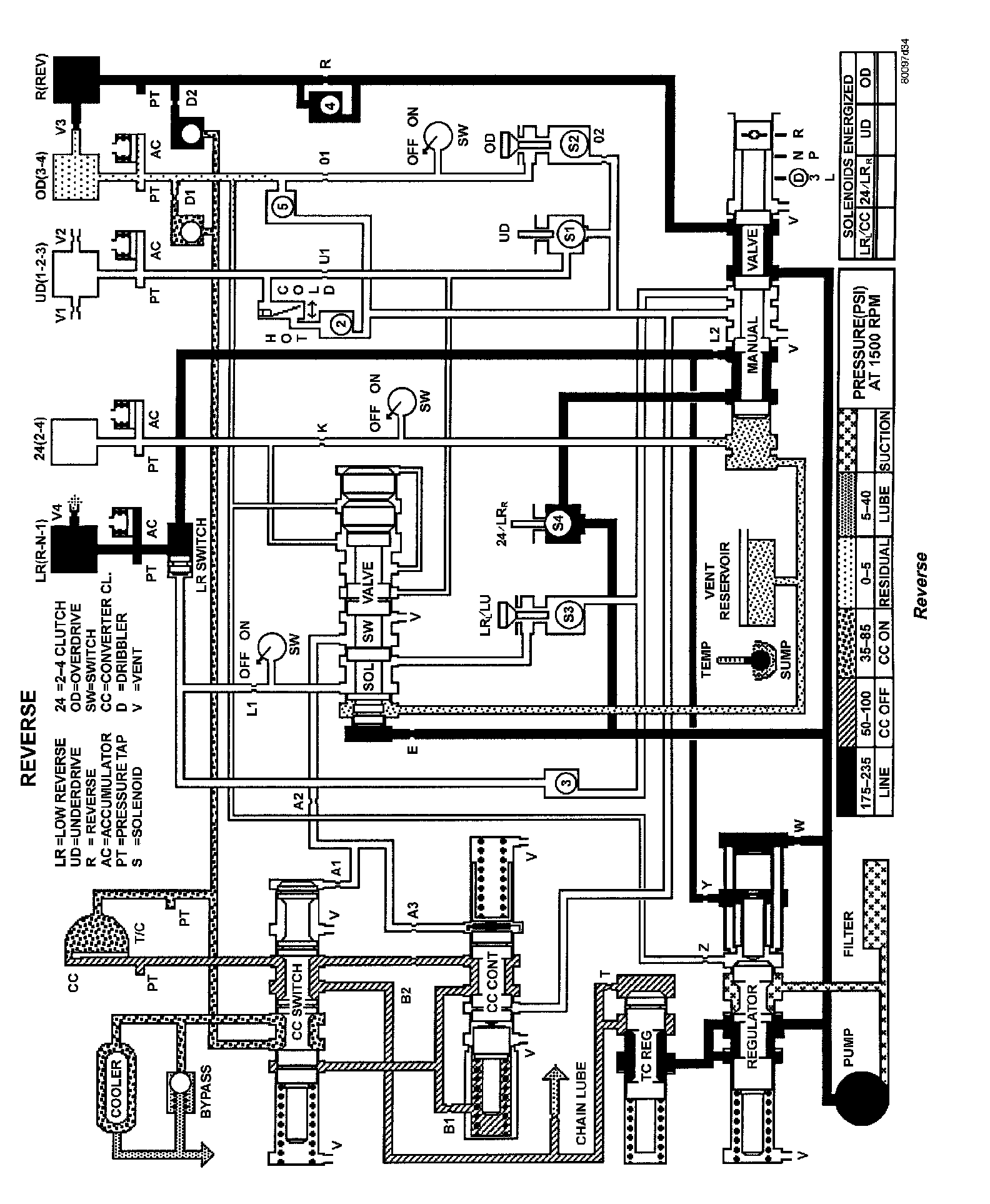

Reverse:

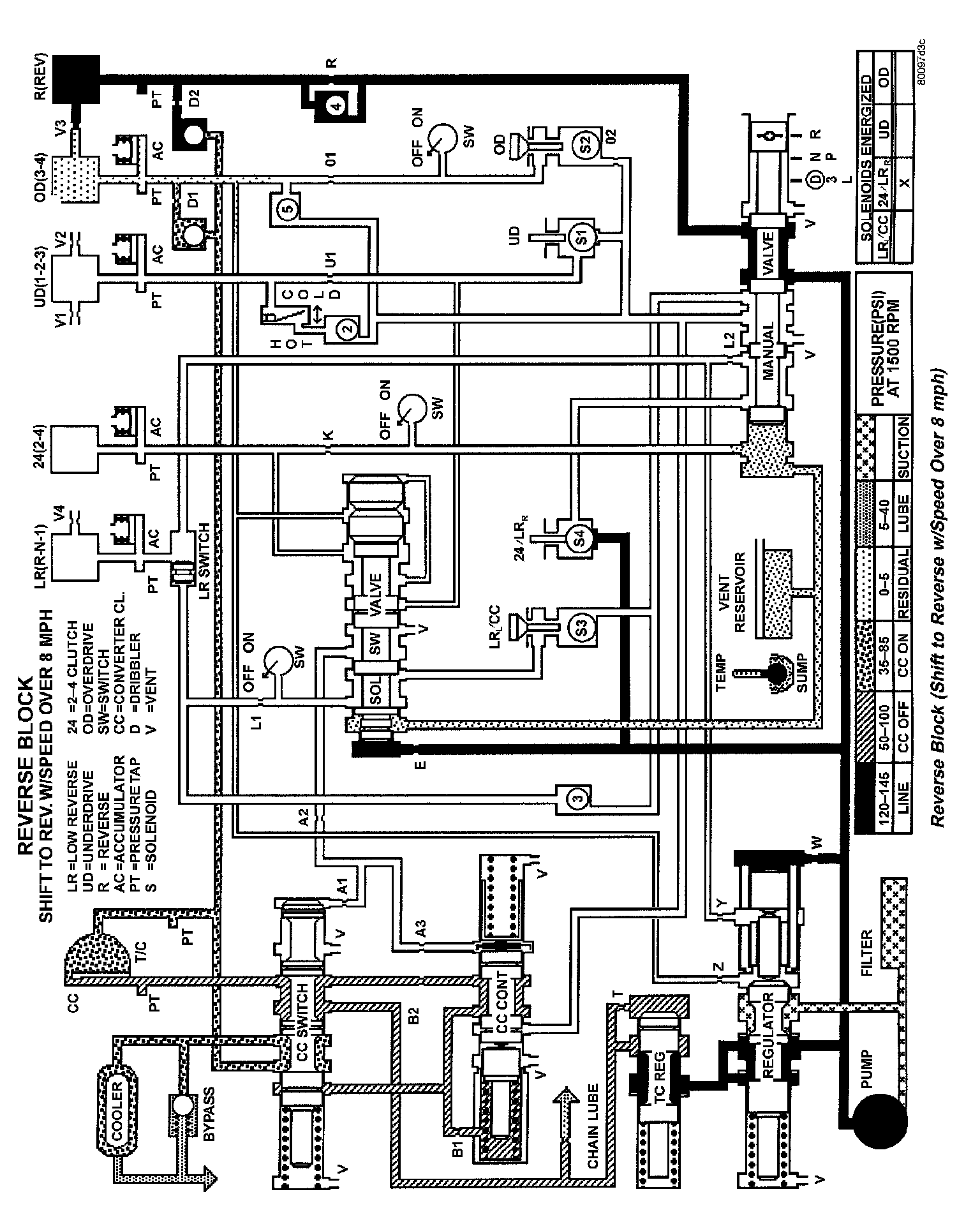

Reverse Block (Shift to Reverse w/Speed Over 8 Mph):

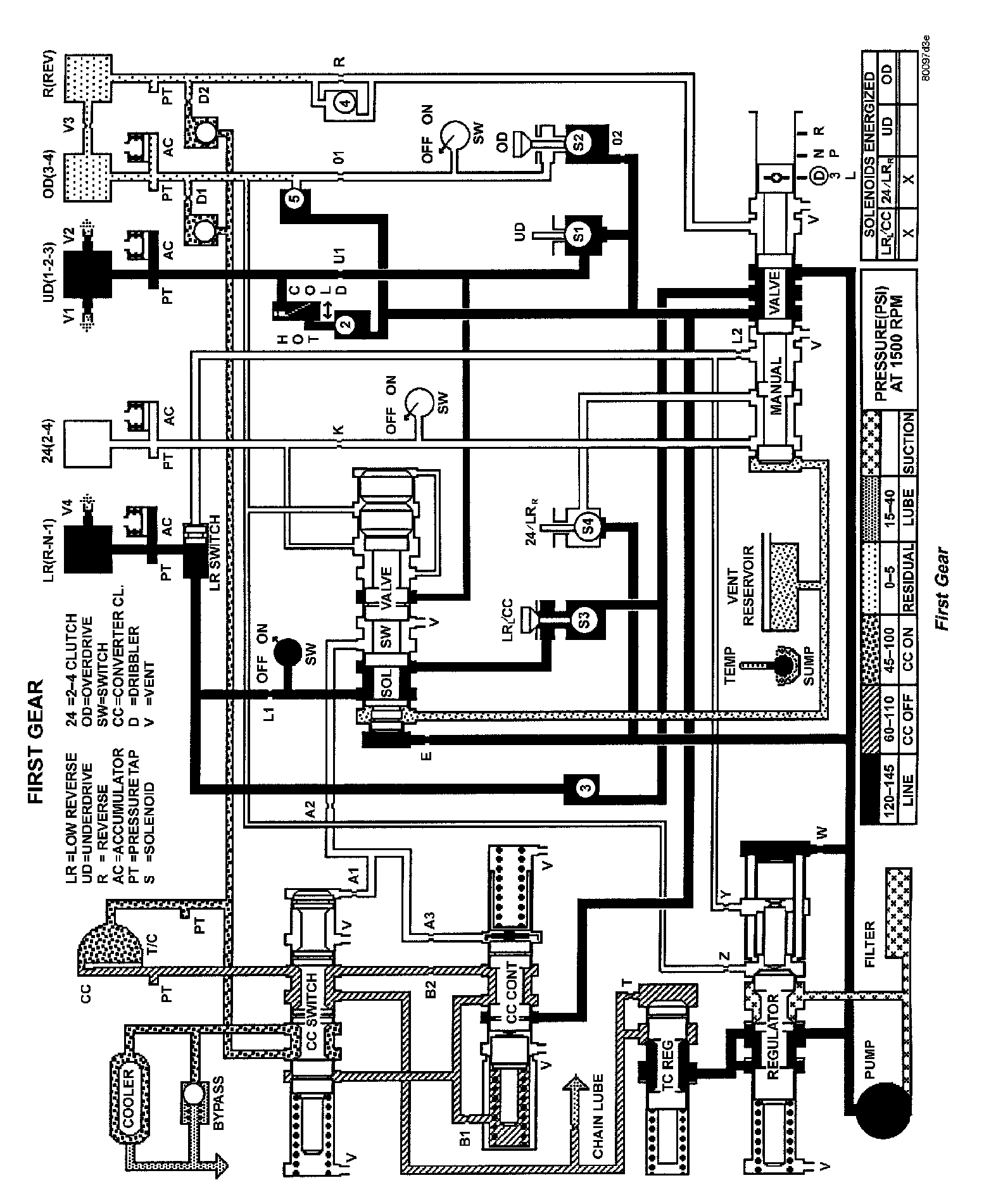

First Gear:

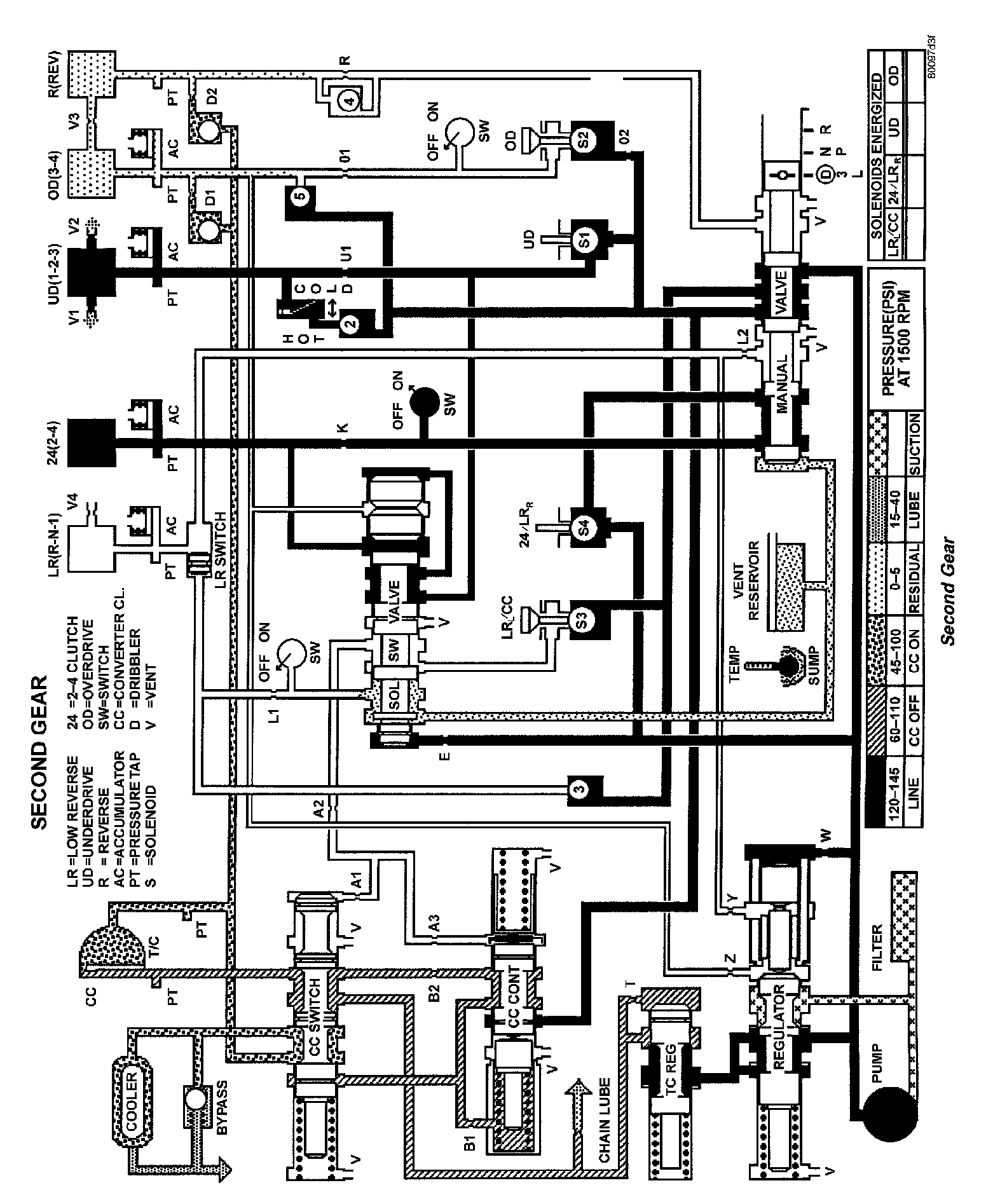

Second Gear:

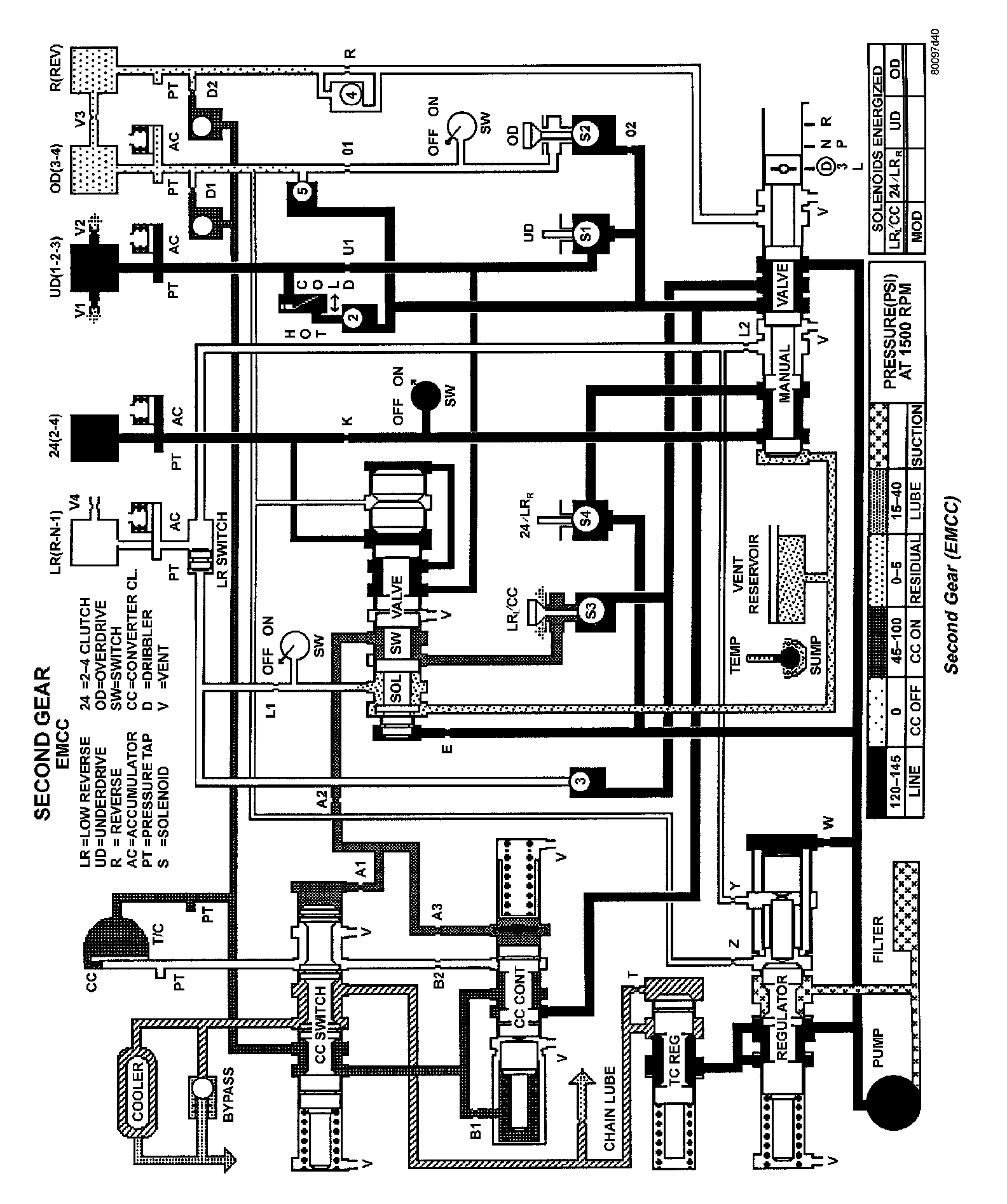

Second Gear (EMCC):

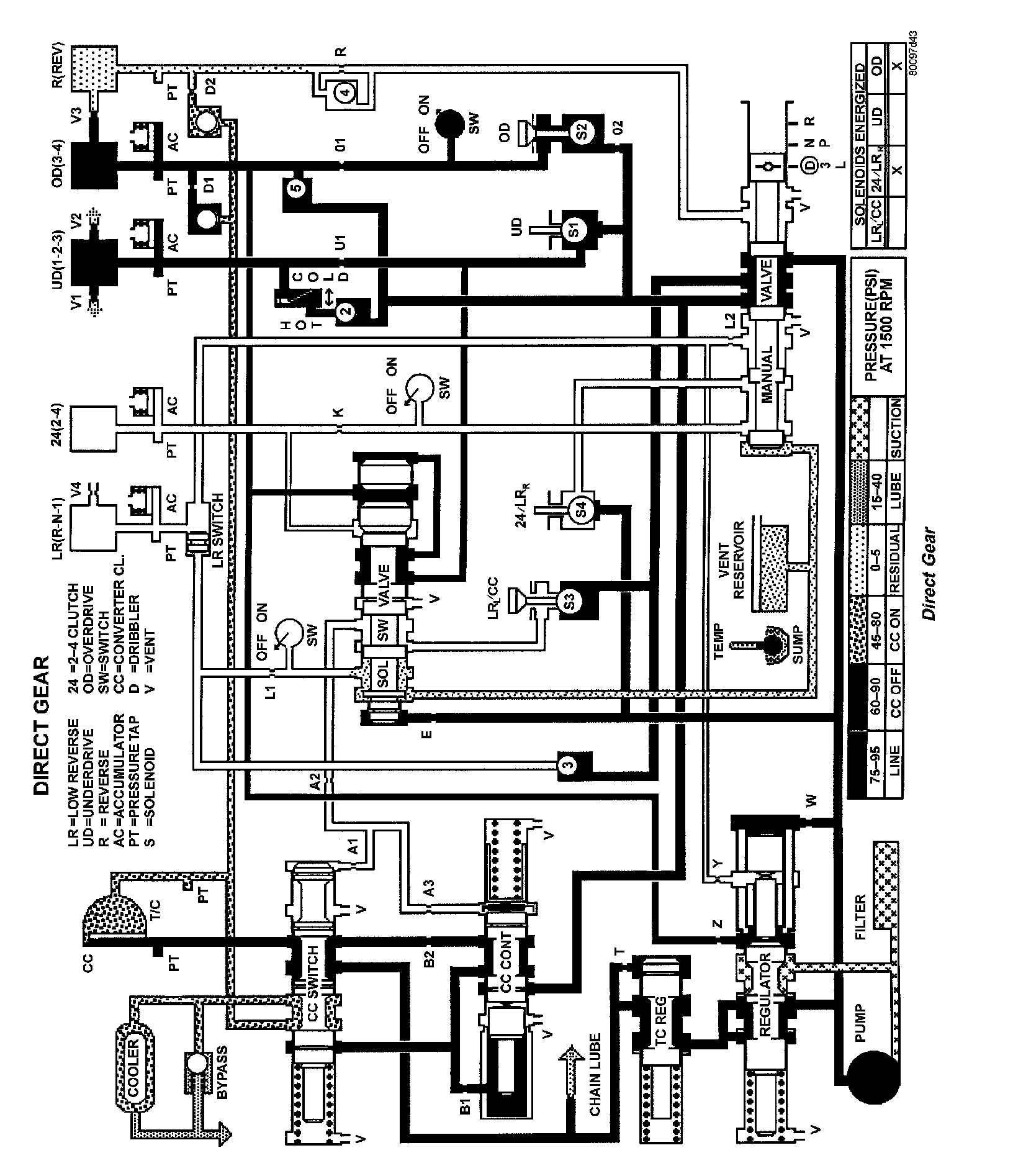

Direct Gear:

Direct Gear (EMCC):

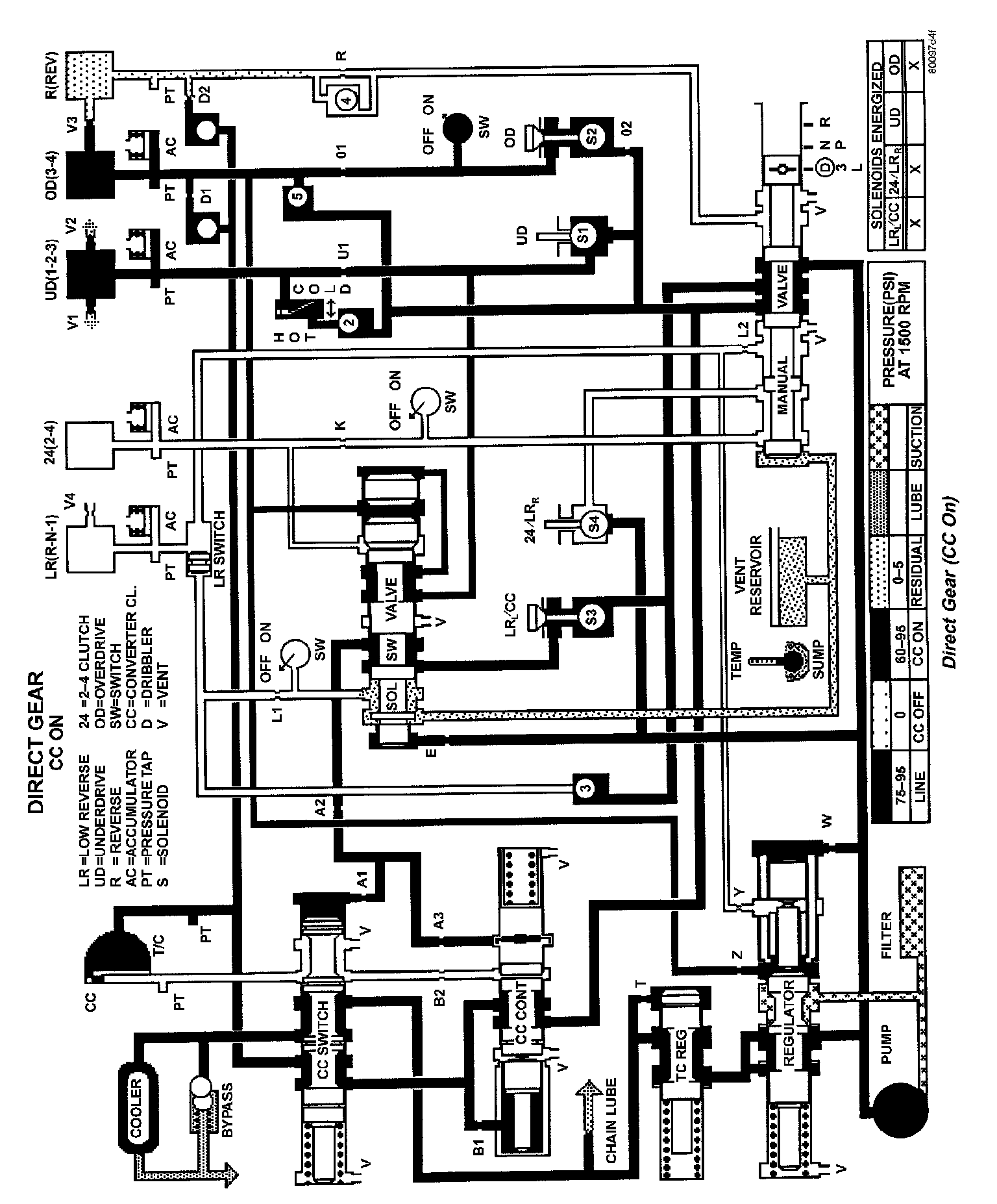

Direct Gear (CC On:

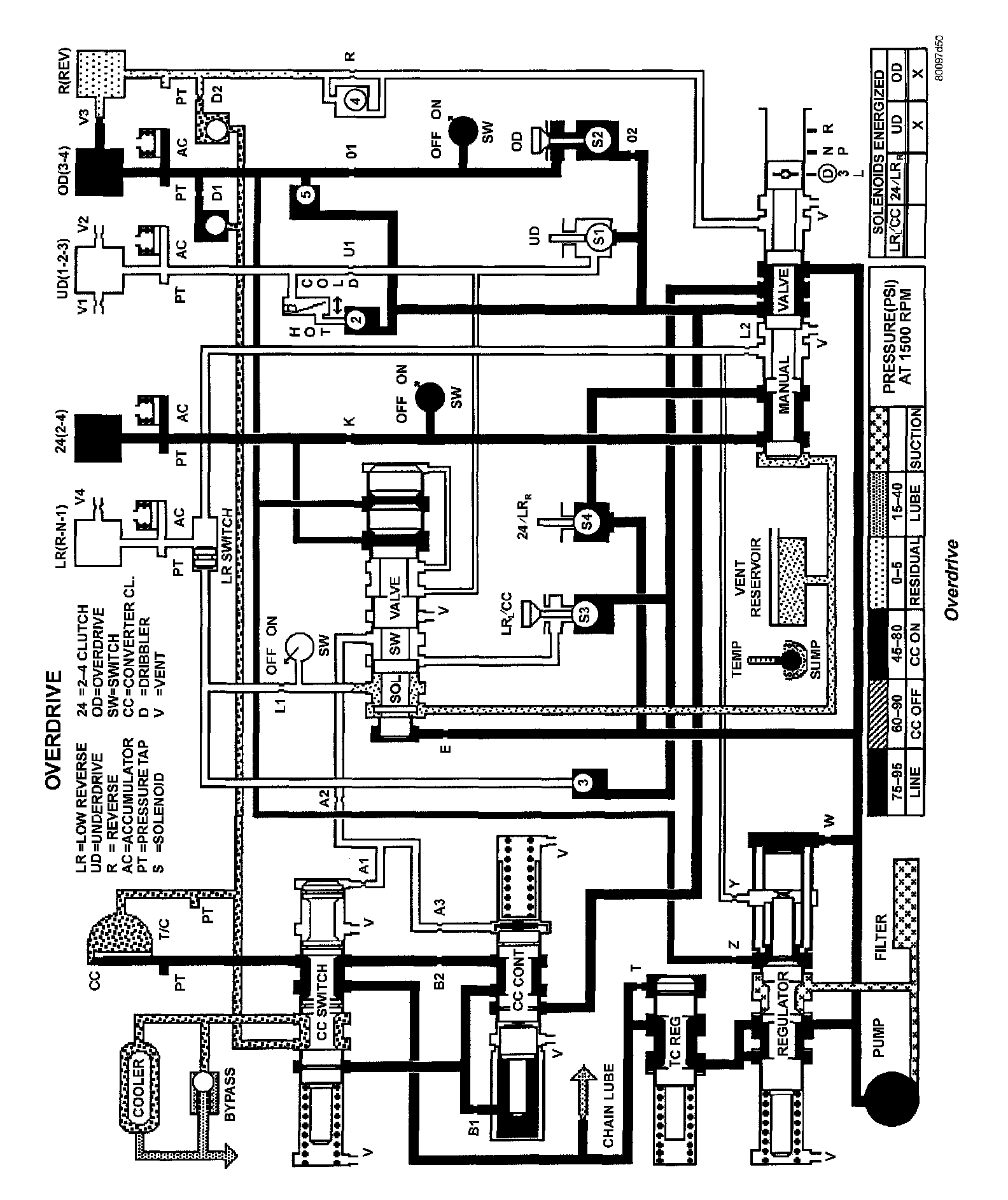

Overdrive:

Overdrive (EMCC):

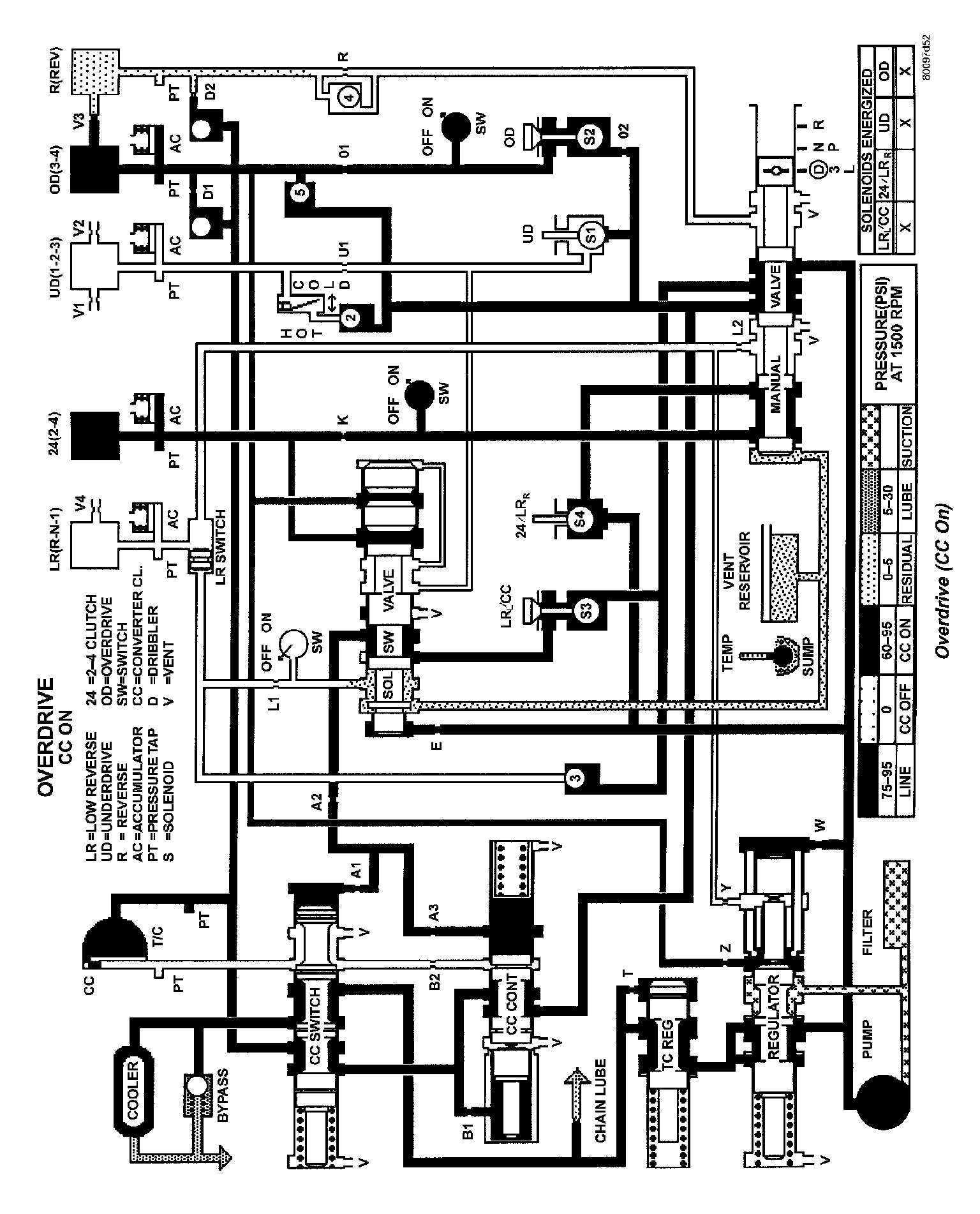

Overdrive (CC On):
