Front

CAUTION:Only frame contact hoisting equipment can be used on this vehicle. All vehicles have a fully independent rear suspension. The vehicles cannot be hoisted using equipment designed to lift a vehicle by the rear axle. If this type of hoisting equipment is used, damage to rear suspension components will occur.

Caution:If the vehicle is equipped with the Tire Pressure Monitoring (TPM) System, the tire/wheel assembly needs to be reinstalled in the same location it is removed from or the TPM System (sensors) will need to be retrained. Mark each tire/wheel assembly indicating location, prior to its removal. If the tire/wheel assemblies are switched, rotated or replaced, the TPM System needs to be retrained.

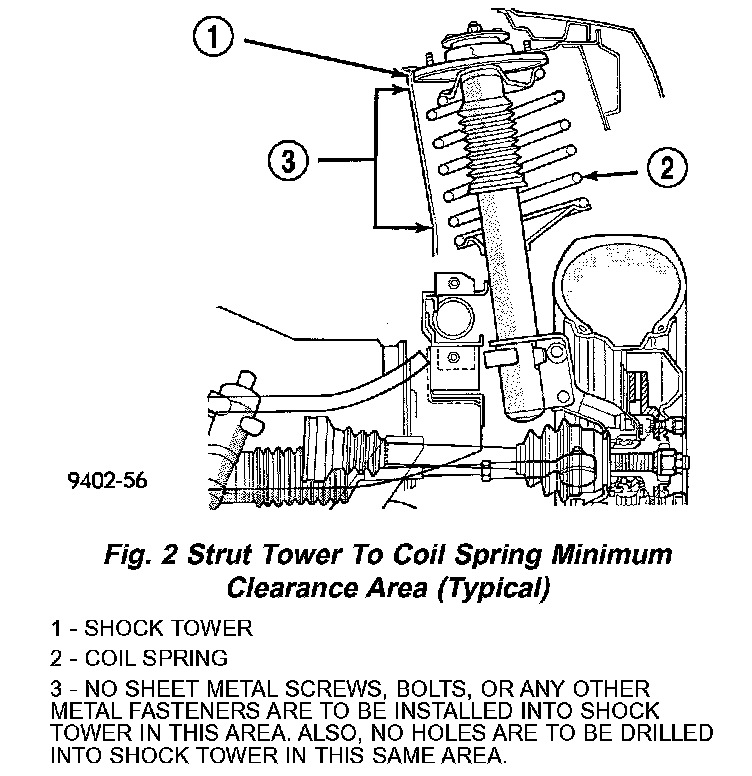

Caution: At no time when servicing a vehicle, can a sheet metal screw, bolt or other metal fastener be installed in the shock tower to take the place of an original plastic clip. Also, NO holes can be drilled into the front shock tower in the area shown, for the installation of any metal fasteners into the shock tower. Because of the minimum clearance in this area, installation of metal fasteners could damage the coil spring coating and lead to a corrosion failure of the spring.
