Power Steering Fluid: Testing and Inspection
STANDARD PROCEDURE - POWER STEERING FLUID LEVEL CHECKINGWARNING: FLUID LEVEL SHOULD BE CHECKED WITH ENGINE OFF TO PREVENT INJURY FROM MOVING PARTS.

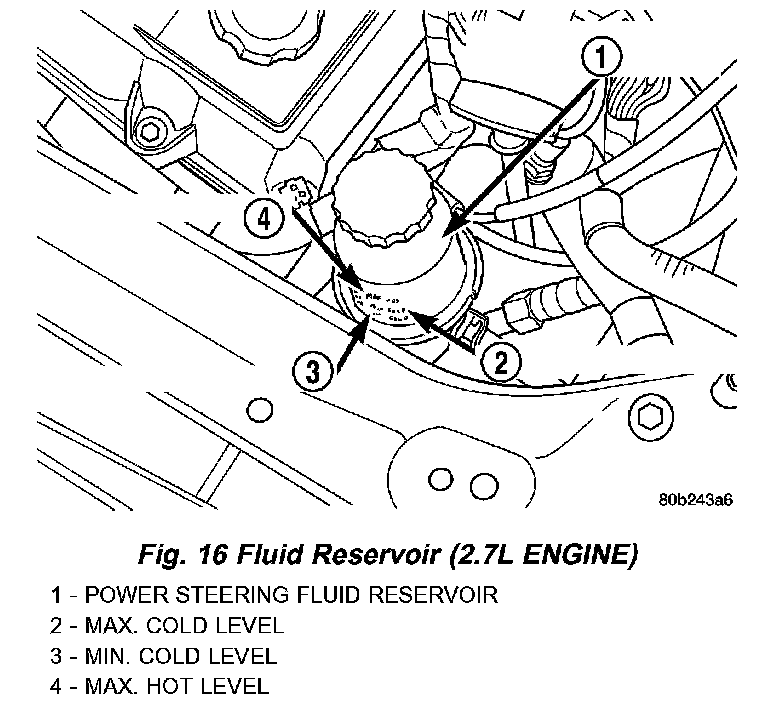

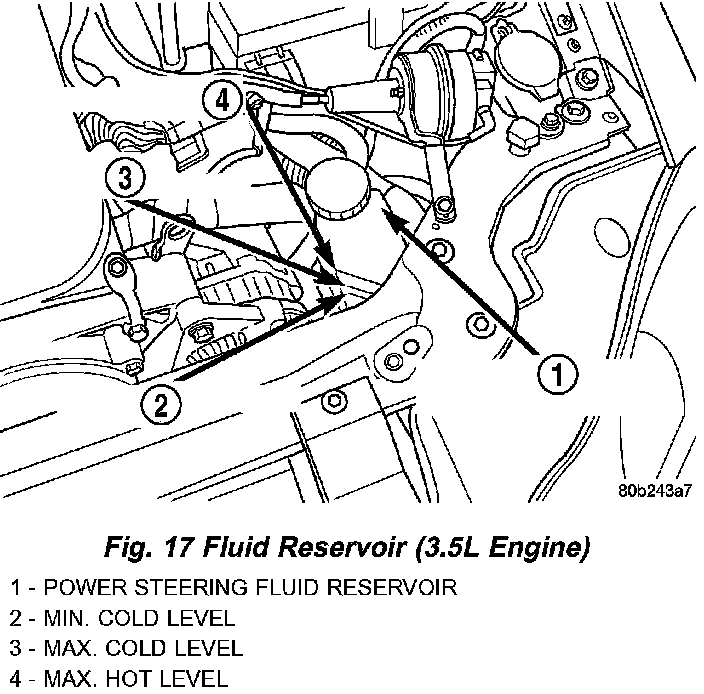

Wipe off the power steering fluid reservoir so that it is free of dirt. Check the fill level of the fluid in the reservoir according to the markings on the side of the reservoir. Measure the MAX. COLD/MIN. COLD fluid levels when the fluid is at normal ambient temperature, approximately 32 - 43 °C (90 - 110 °F). Add fluid as necessary and do not overfill. Use only Mopar ATF+4 Automatic Transmission Fluid in this power steering system.
