Fog/Driving Lamp Switch: Description and Operation

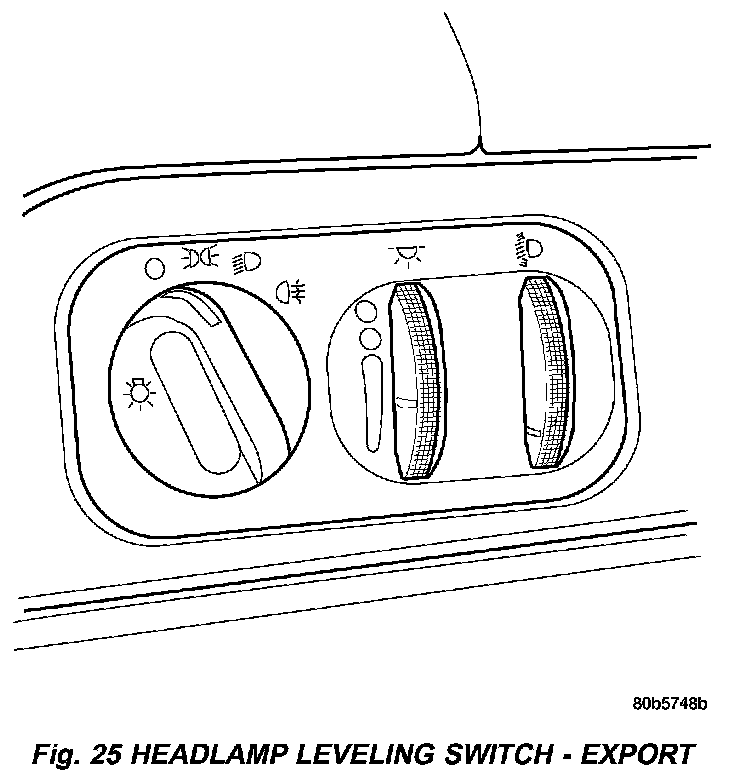

Fig. 25 Headlamp Leveling Switch - Export:

REAR FOG LAMP SWITCH - EXPORT
Vehicles equipped with rear fog lamps utilize a rear fog lamp switch. This switch is located next to the headlamp switch on (Fig. 43). The rear fog lamp switch is the primary controller of the rear fog lamps.

With the rotation of the rear fog lamp switch, voltage is sent through the rear fog lamp switch. This illuminates the rear fog lamp or lamps. The headlamps must be "ON" in order for the rear fog lamp/s to function. Refer to the appropriate wiring information. The wiring information includes wiring diagrams, proper wire and connector repair procedures, details of wire harness routing and retention, connector pin-out information and location views for the various wire harness connectors, splices and grounds.
