Brake Light Switch: Locations

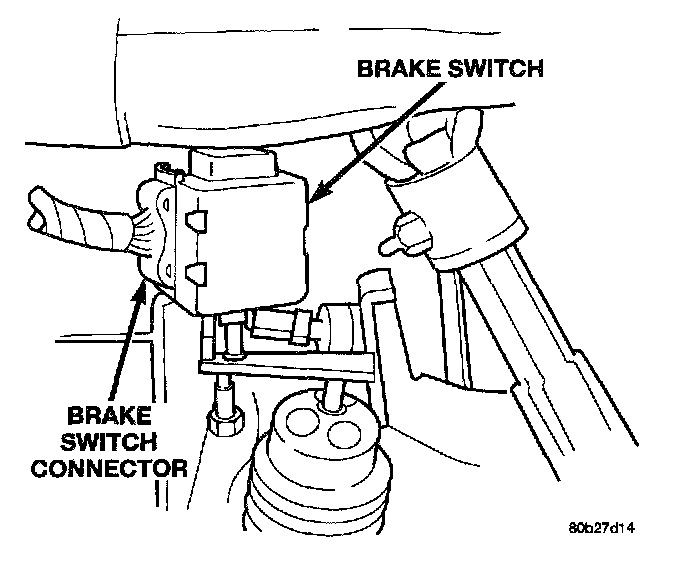

Fig. 1 Brake Lamp Switch:










The brake lamp switch is located under the instrument panel at the brake pedal arm.
