Ambient Temperature Sensor / Switch HVAC: Locations

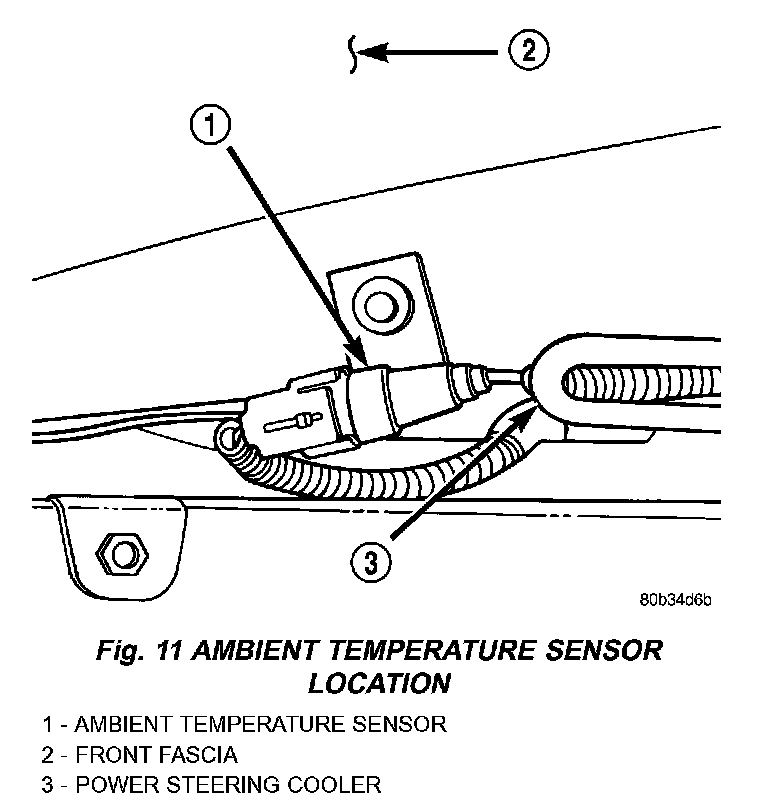

Fig. 11 Ambient Temperature Sensor Location:




The ambient air temperature sensor is located on the inside of the right front bumper beam.
