Seat Belt and Retractor - Rear Seat

REMOVAL

WARNING: INSPECT THE CONDITION OF THE SHOULDER/LAP BELT. REPLACE THE RETRACTOR IF THE BELT IS CUT, FRAYED, TORN, OR DAMAGED IN ANY WAY.

1. Remove the seat cushion and back.
2. Remove the upper quarter trim panel.
3. Remove the lower quarter trim panel.
4. Remove the nut attaching the lower seat belt anchor to the floor.
5. Remove the turning loop bolt.

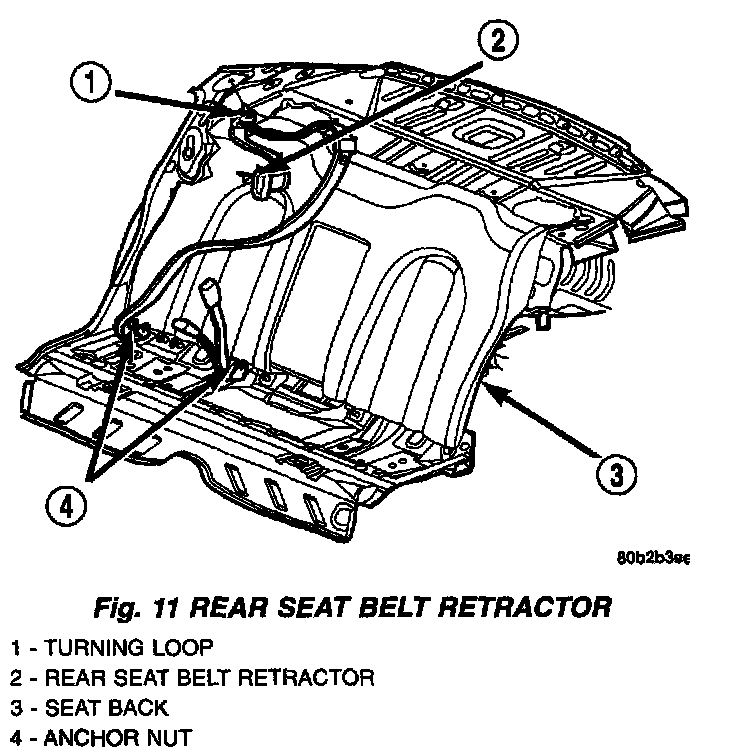

Fig.11 Rear Seat Belt Retractor:

6. Remove the bolt attaching the seat belt retractor to the quarter panel..
7. Remove the seat belt retractor from the vehicle.

INSTALLATION

WARNING: INSPECT THE CONDITION OF THE SHOULDER/LAP BELT. REPLACE THE RETRACTOR IF THE BELT IS CUT, FRAYED, TORN, OR DAMAGED IN ANY WAY.

1. Place belt in position in the vehicle.
2. Install the bolt to attach the seat belt retractor to the quarter panel.
3. Install the turning loop.
4. Route the anchor end of the seat belt through the upper quarter trim opening. Tighten to 40 Nm (30 ft. lbs.).
5. Install the nut to attach the lower seat belt anchor to the floor. Tighten nut to 40 Nm (30 ft. lbs.) torque
6. Install the lower quarter trim panel.
7. Install the upper quarter trim panels.
8. Install the seat back and cushion.
