Transmission Control System Relay: Locations




Transmission Control Relay

Transmission Control Relay:






The Transmission Control Relay is located in the Power Distribution Center (PDC) on the left side of the engine compartment.

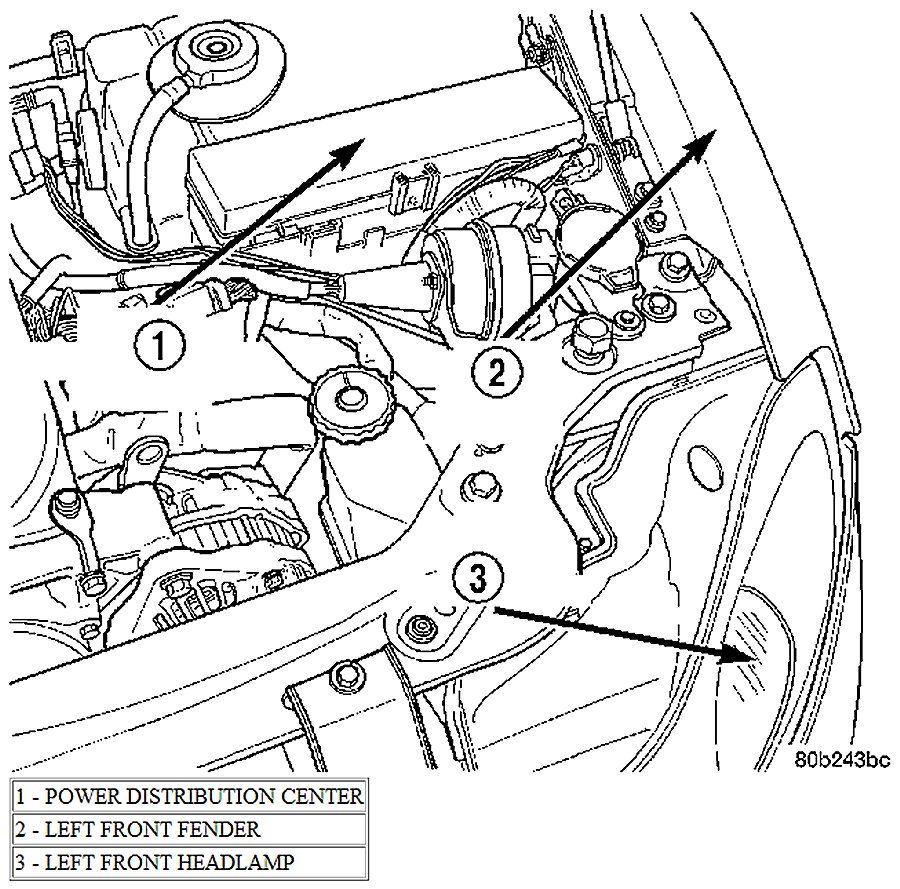

Power Distribution Center (PDC) Location:






The PDC is located in the left front corner of the engine compartment, just in front of the coolant reservoir bottle.
