Headlamp Time Delay Inoperative

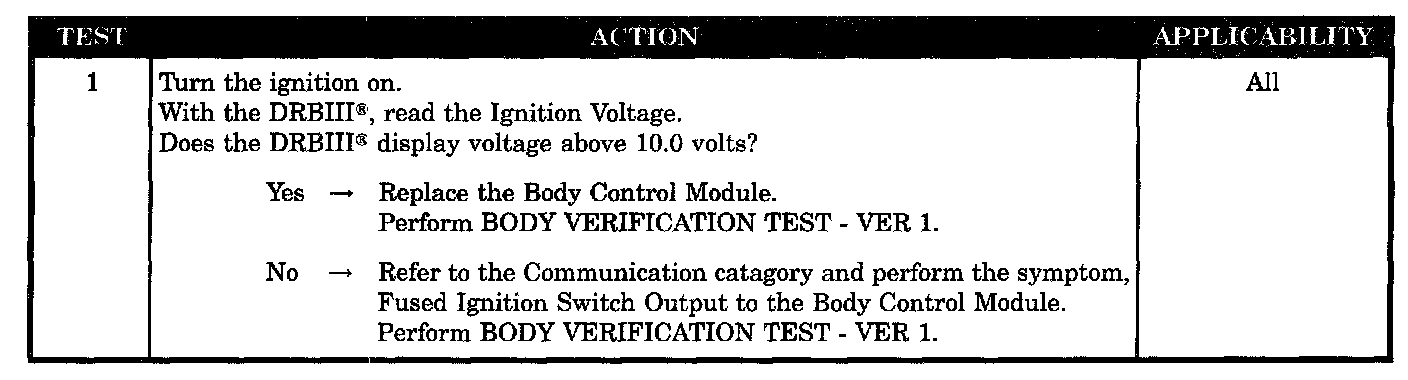

Test 1:






SYMPTOM
HEADLAMP TIME DELAY INOPERATIVE

POSSIBLE CAUSES
- Ignition voltage low
- Body control module
