EVIC Inoperative

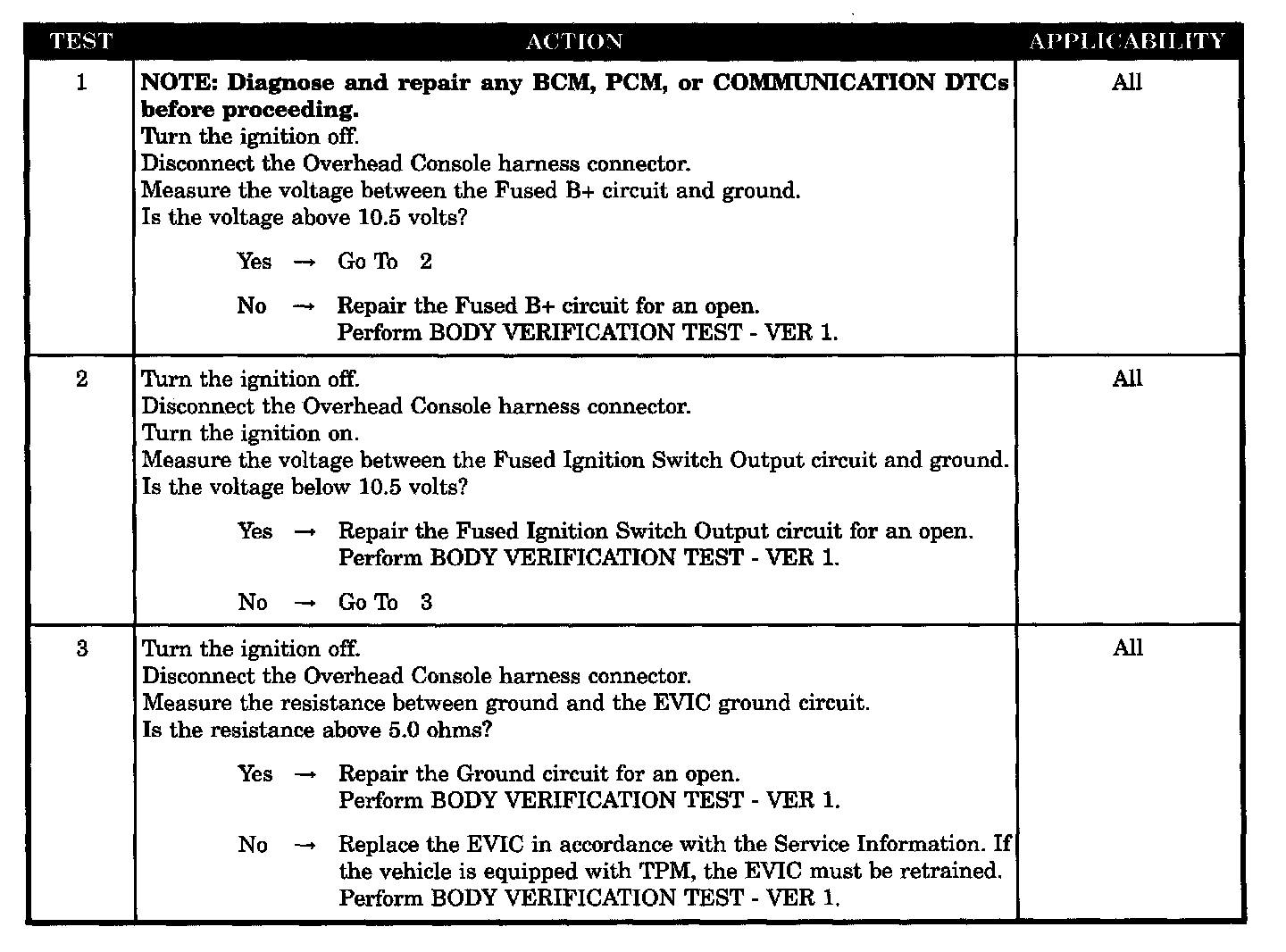

Test 1 - 3:






SYMPTOM
EVIC INOPERATIVE

POSSIBLE CAUSES
- Fused B(+) circuit open
- Fused ignition switch output circuit open
- Ground circuit open
- Electronic vehicle information center
