Ignition Switch Lock Cylinder: Description and Operation
KEY/LOCK CYLINDERDESCRIPTION
The lock cylinder is inserted in the end of the housing opposite the ignition switch.
OPERATION

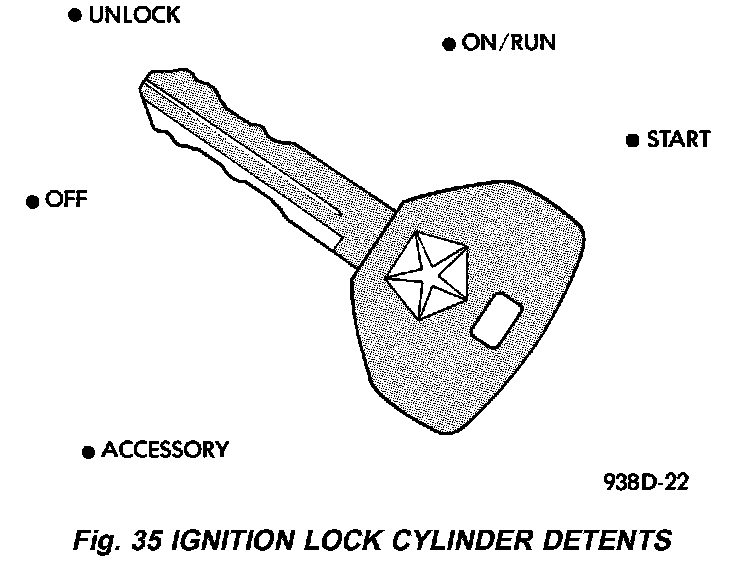

The ignition key rotates the cylinder to 5 different detents (Fig. 35):
- Accessory
- Off (lock)
- Unlock
- On/Run
- Start
