Oxygen Sensor: Diagrams

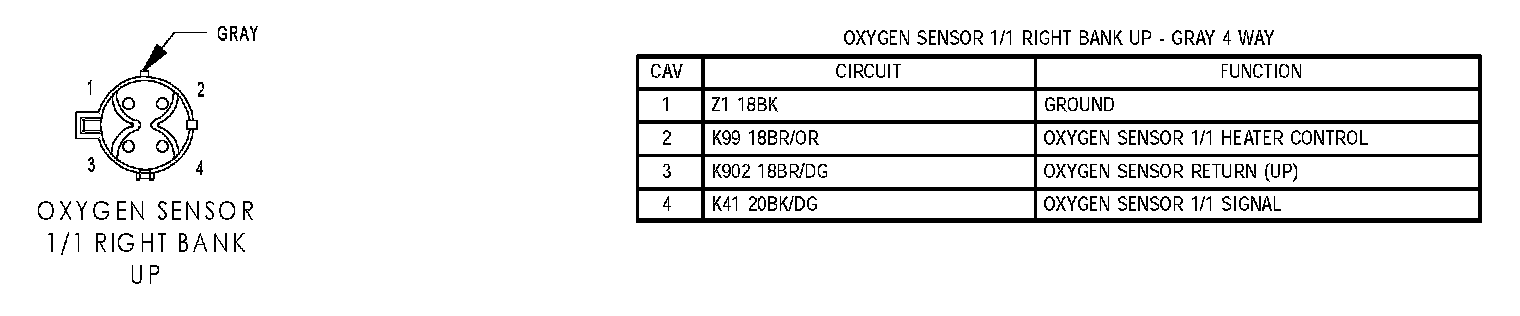

Oxygen Sensor 1/1 Right Bank Upstream:

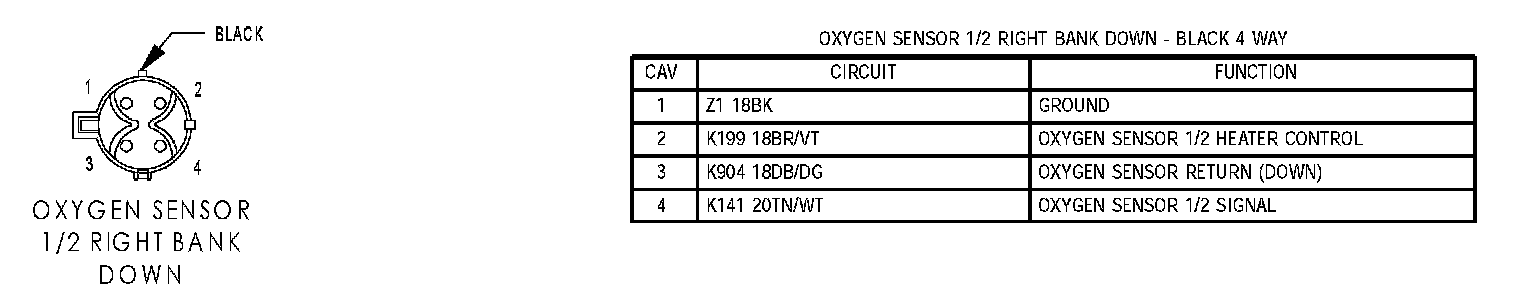

Oxygen Sensor 1/2 Right Bank Downstream:

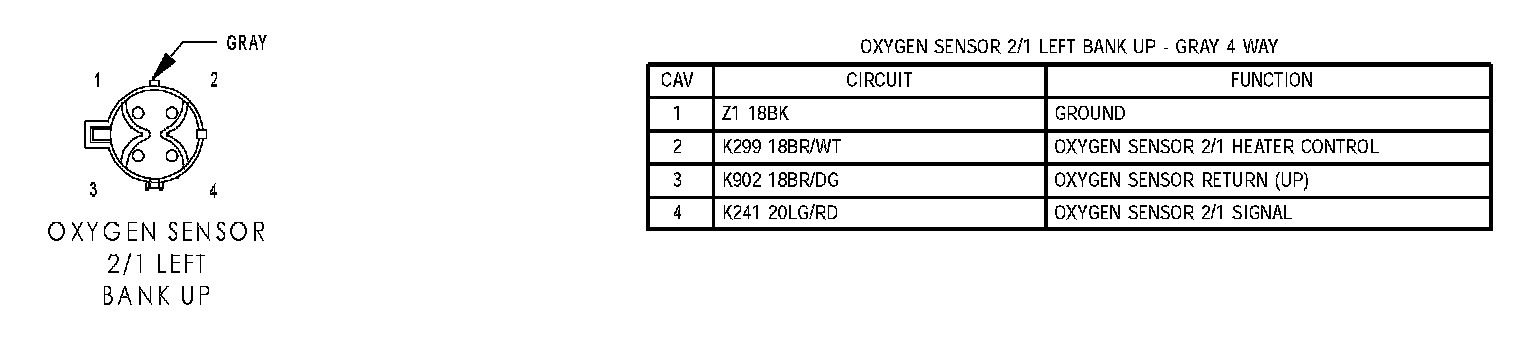

Oxygen Sensor 2/1 Left Bank Upstream:

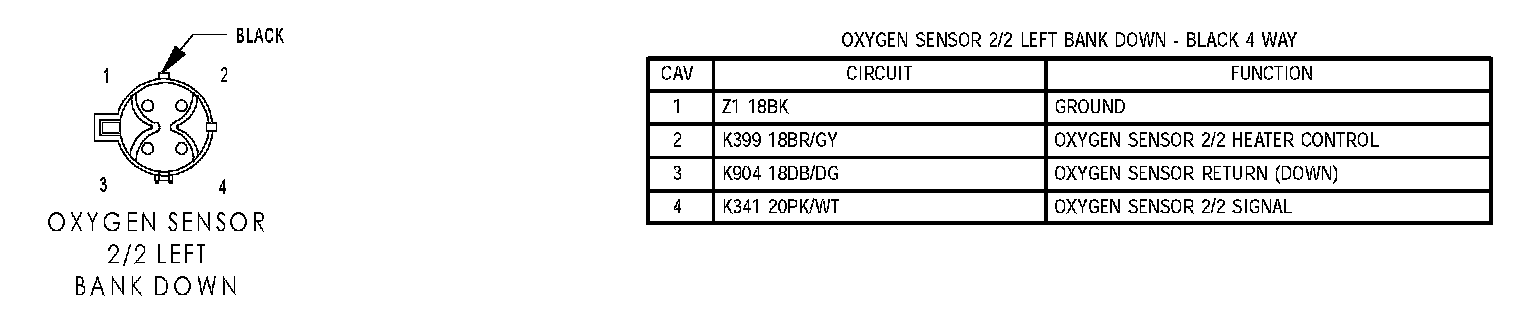

Oxygen Sensor 2/2 Left Bank Downstream:
