One Remote Radio Switch Inoperative With Ignition on

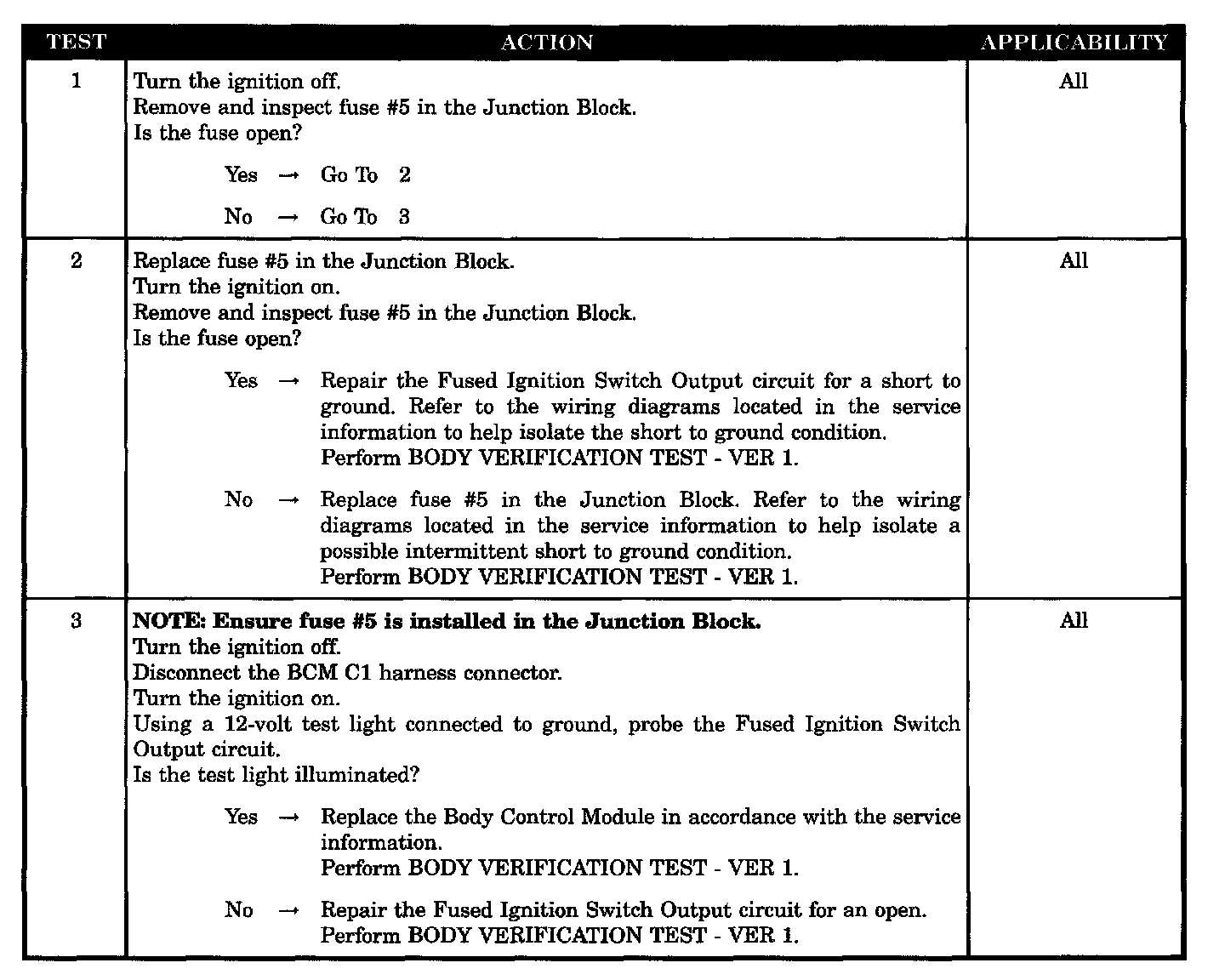

Test 1 - 3:






SYMPTOM
REMOTE RADIO SWITCHES INOPERATIVE WITH IGNITION ON

POSSIBLE CAUSES
- Intermittent short - fuse # 5
- Fused ignition switch output circuit shorted to ground
- Open fused ignition switch output circuit
- Body control module
