Odometer Not Operating Properly

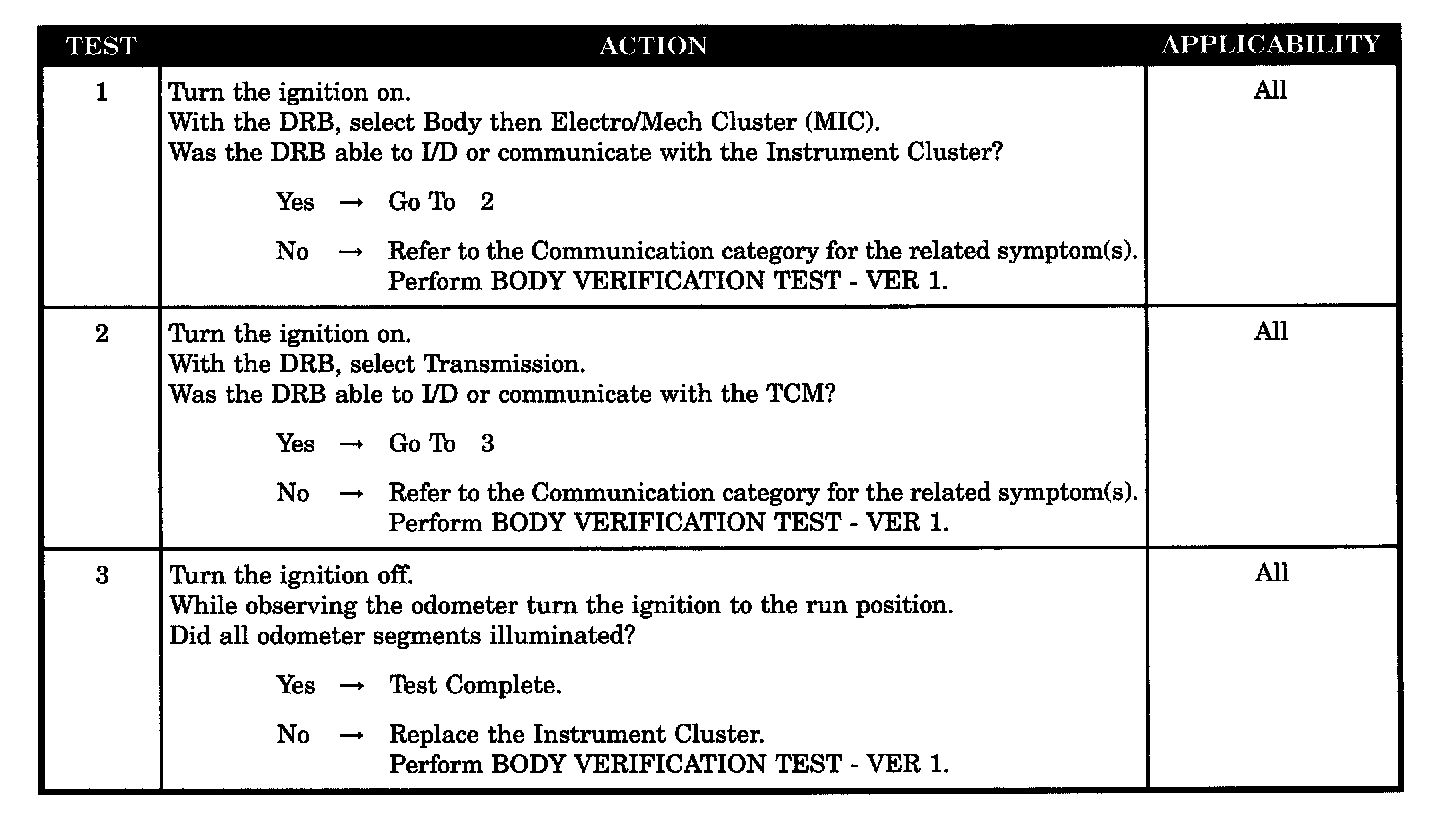

Test 1 - 3:






SYMPTOM
ODOMETER NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Attempt to communicate with the instrument cluster
- Attempt to communicate with the TCM
- Observe the instrument cluster
