Manual A/C System Test

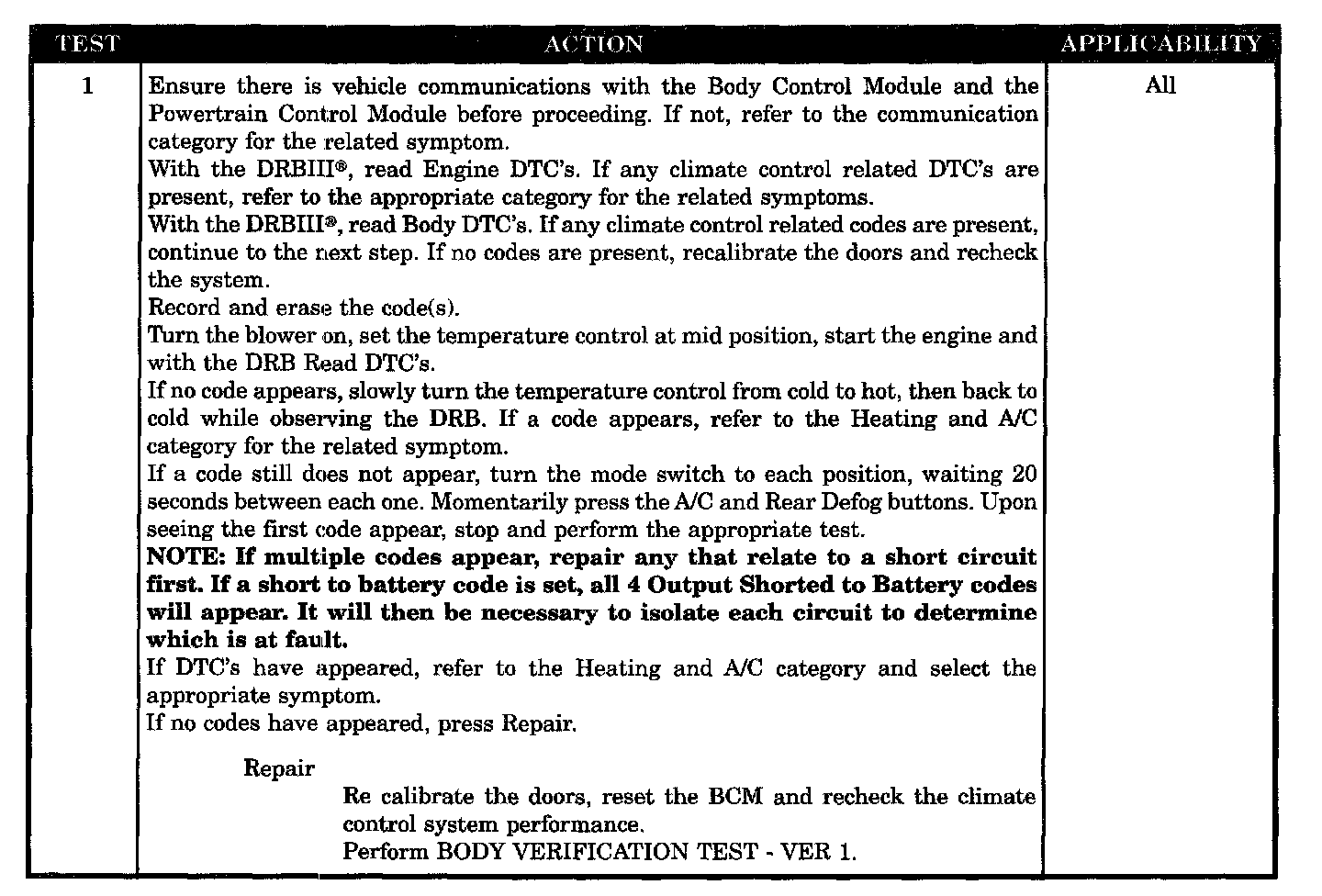

Test 1:
SYMPTOM
MANUAL A/C SYSTEM TEST
POSSIBLE CAUSES
-
Manual A/C system test
