Home >> Chrysler >> 2002 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Body Control Module >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> ATC System Test

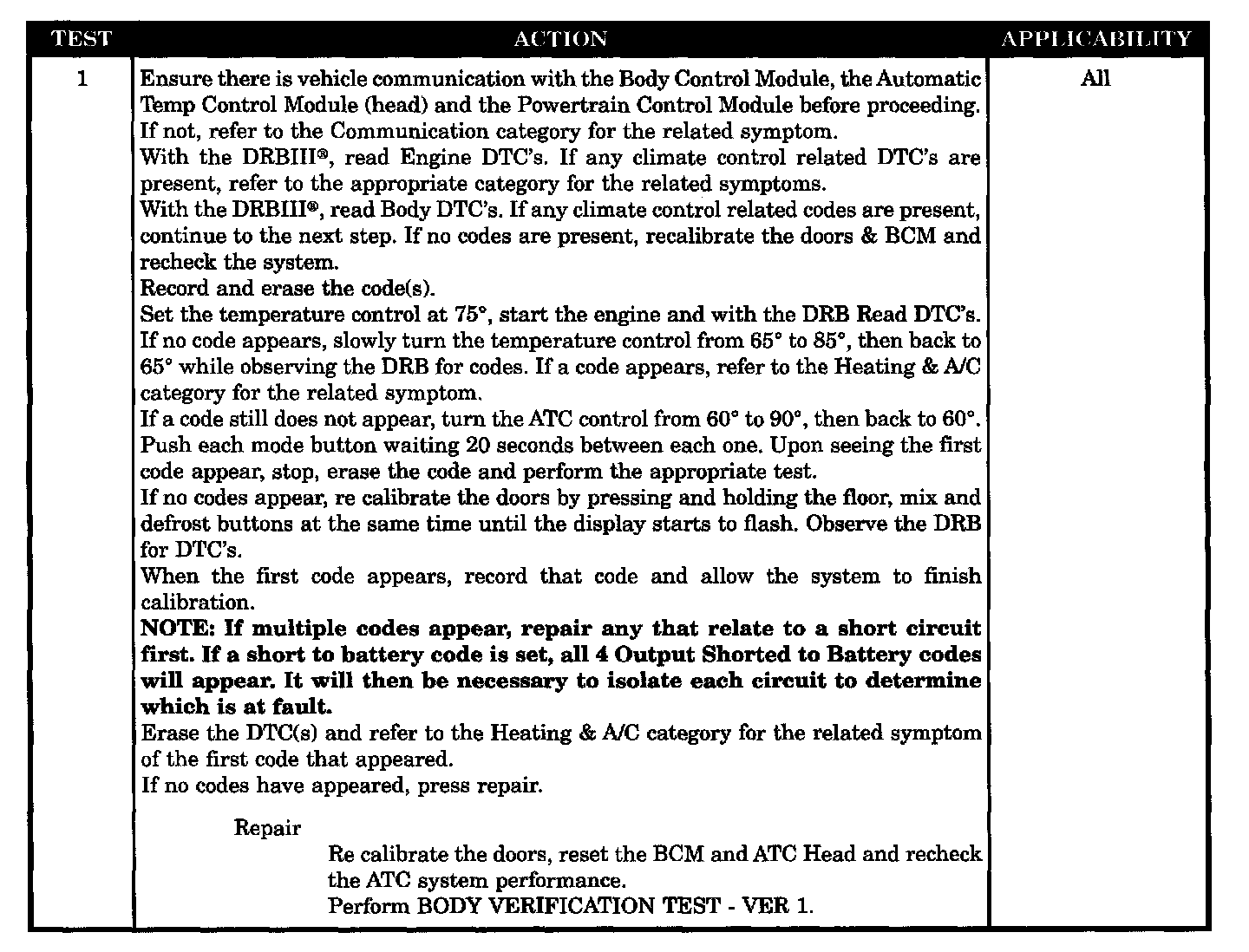

ATC System Test



Test 1:






SYMPTOM
ATC SYSTEM TEST

POSSIBLE CAUSES
- ATC system test
