Data Link Connector: Description and Operation

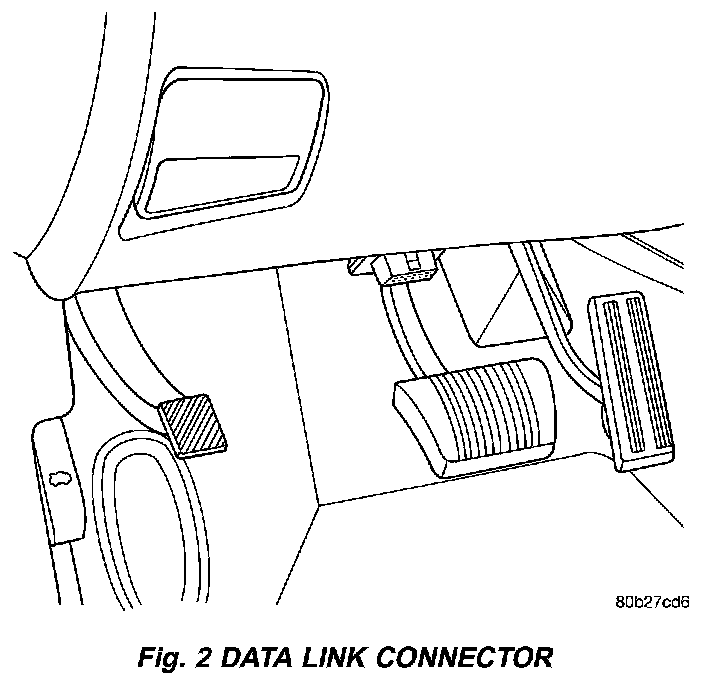

Fig.2 Data Link Connector:

The data link connector is located inside the vehicle, below instrument panel next to the center column.

The data link connector (diagnostic connector) links the DRB scan tool with the Powertrain Control Module (PCM). Refer to On-Board Diagnostics.
