Wiper No Wipe After Wash

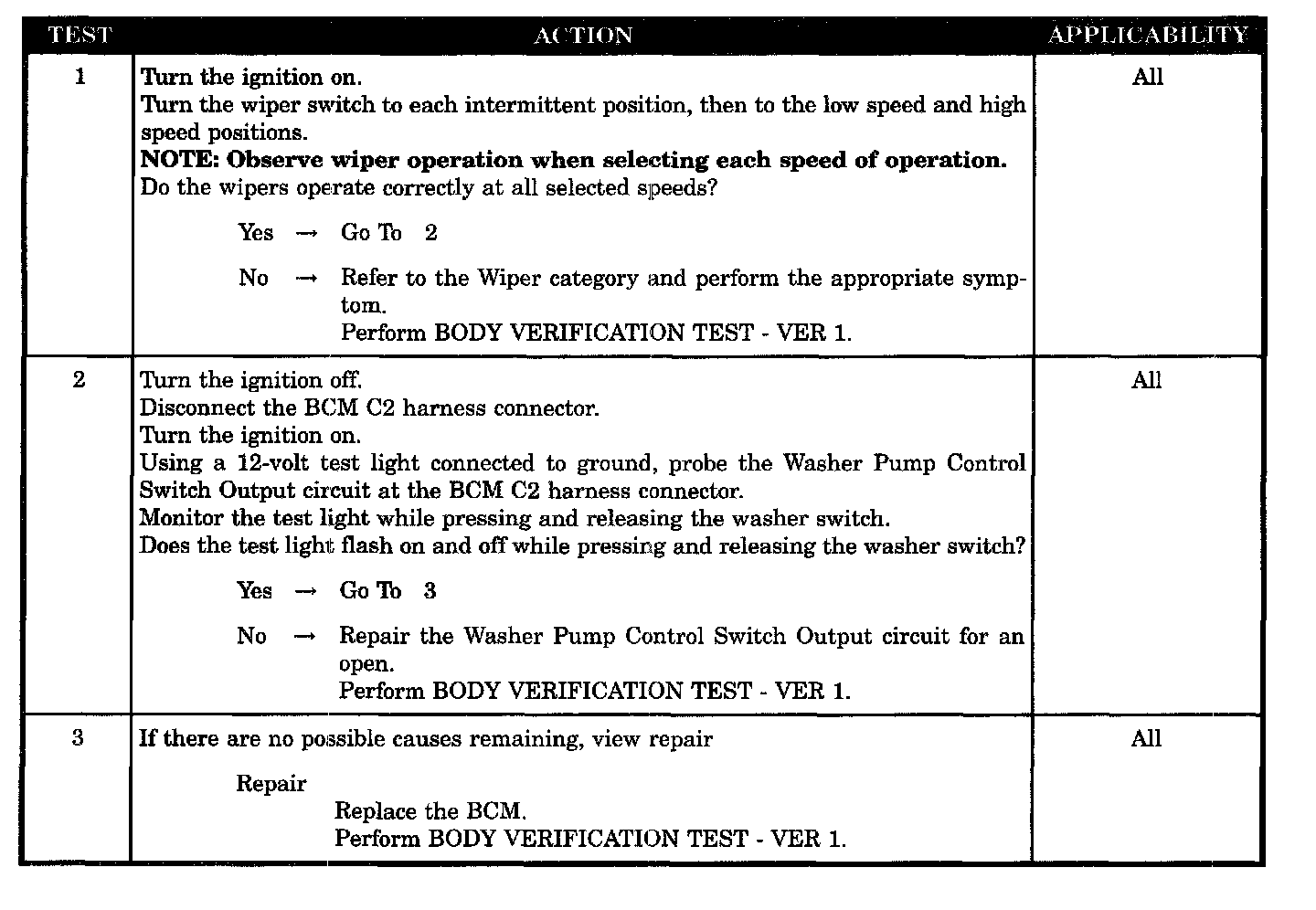

Test 1 - 3:
SYMPTOM
WIPER NO WIPE AFTER WASH
POSSIBLE CAUSES
-
Wiper operation
-
Washer pump control switch output circuit open
-
BCM
