Washer Runs All the Time With Ignition on

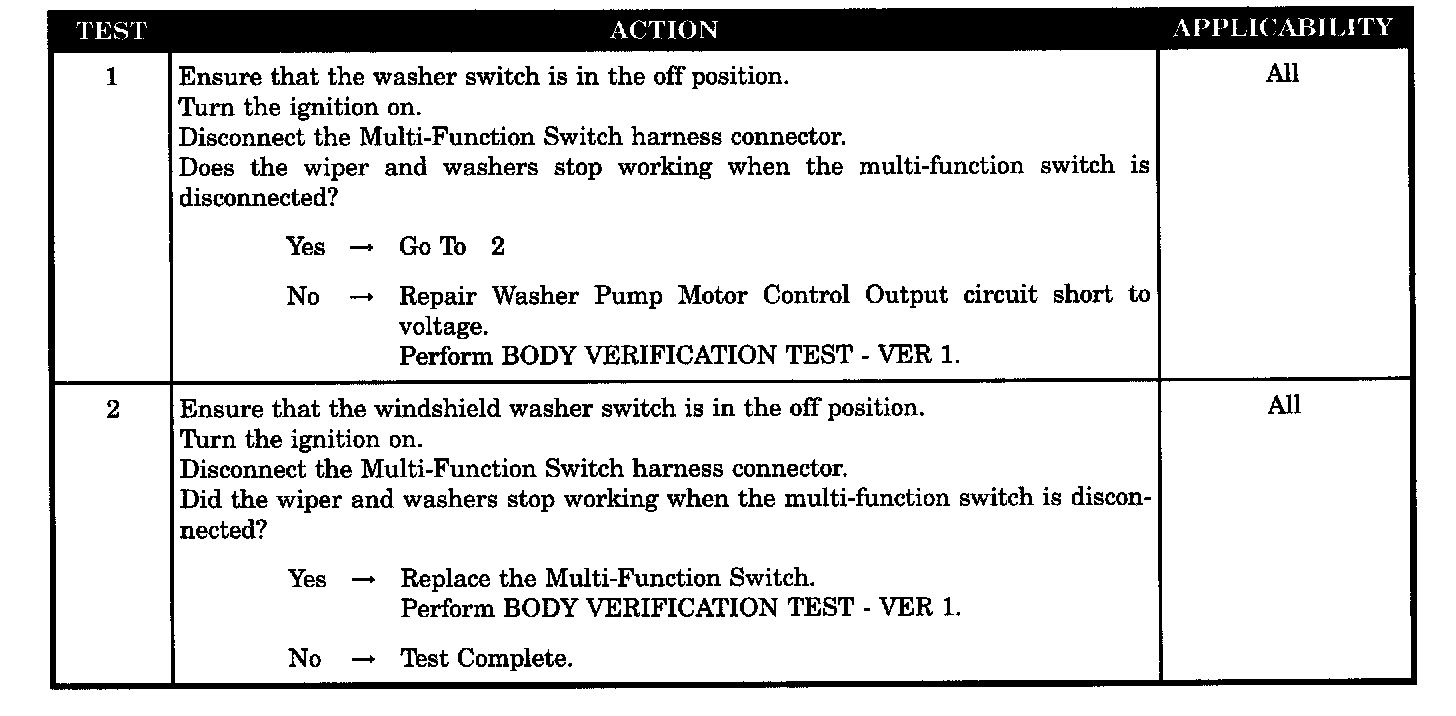

Test 1 - 2:






SYMPTOM
WASHER RUNS ALL THE TIME WITH IGNITION ON

POSSIBLE CAUSES
- Washer pump motor control output circuit shorted to voltage
- Washer pump switch shorted to voltage
