VTSS Will Not Arm

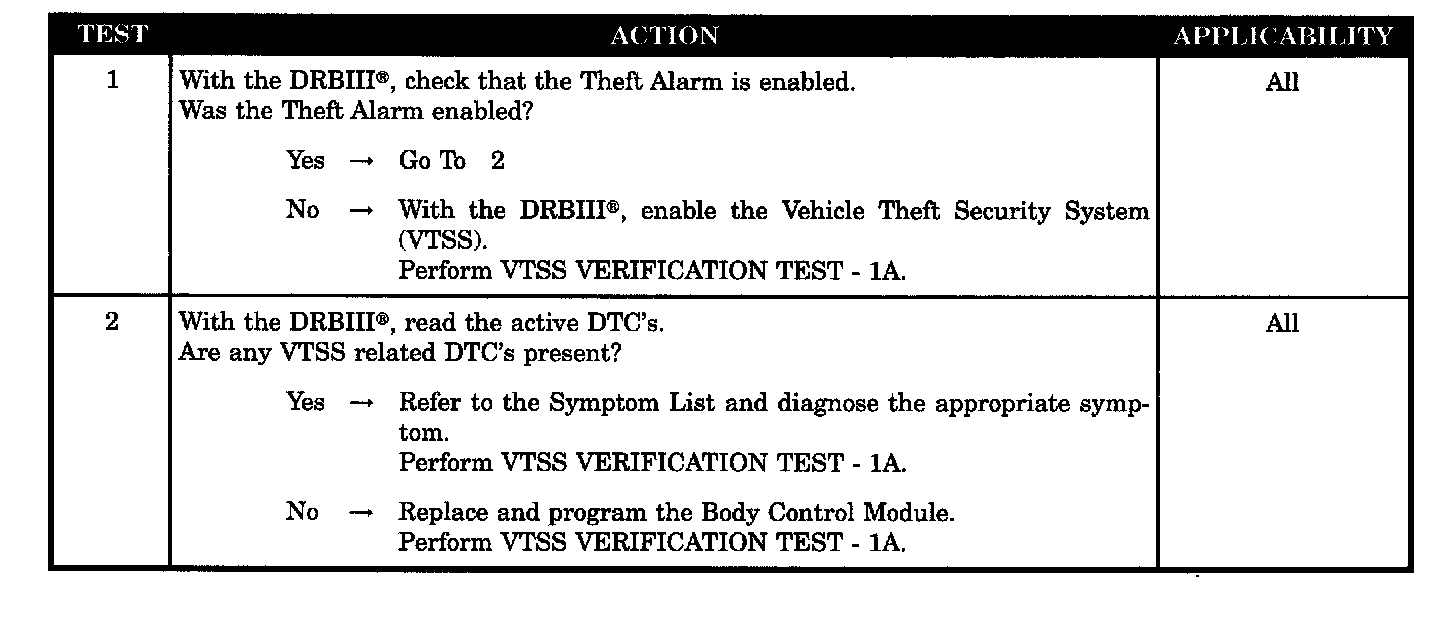

Test 1 - 2:
SYMPTOM
VTSS WILL NOT ARM
POSSIBLE CAUSES
-
Check the VTSS status
-
Check the
BCM
for DTCS
-
Body control module
- No alarm output
