VTSS Does Not Trip With Trunk Knockout Switch

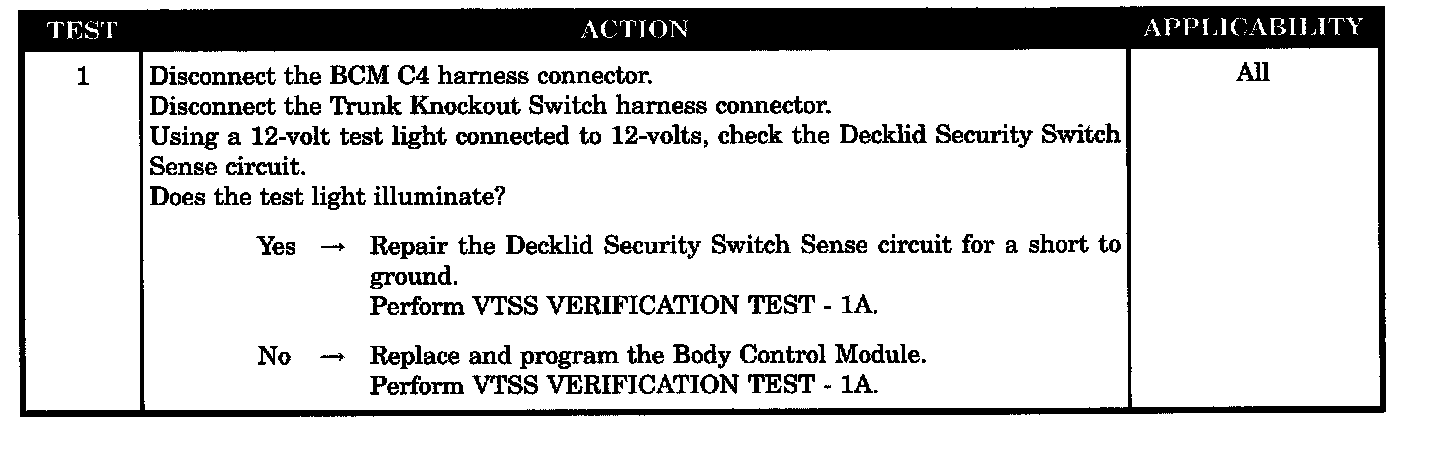

Test 1:






SYMPTOM
VTSS DOES NOT TRIP WITH TRUNK KNOCKOUT SWITCH

POSSIBLE CAUSES
- Decklid security switch sense circuit shorted to ground
- BCM - No alarm from trunk knockout switch
