Headlamp/Park Lamps Fail to Flash With Alarm Tripped

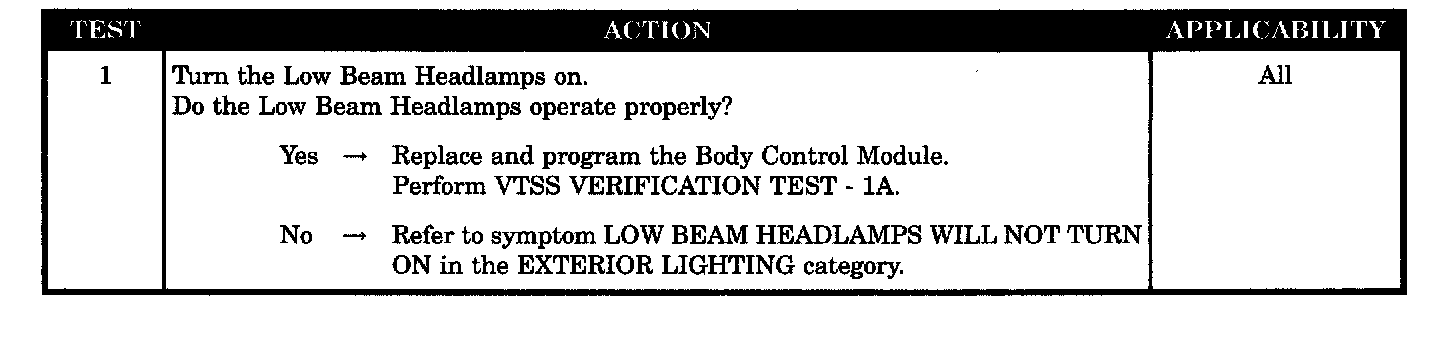

Test 1:






SYMPTOM
HEADLAMP/PARK LAMPS FAIL TO FLASH WITH ALARM TRIPPED

POSSIBLE CAUSES
- Verify low beam operation
- BCM - headlamps fail to flash when VTSS is in alarm
