Courtesy Lamps Inoperative - Door Lamps

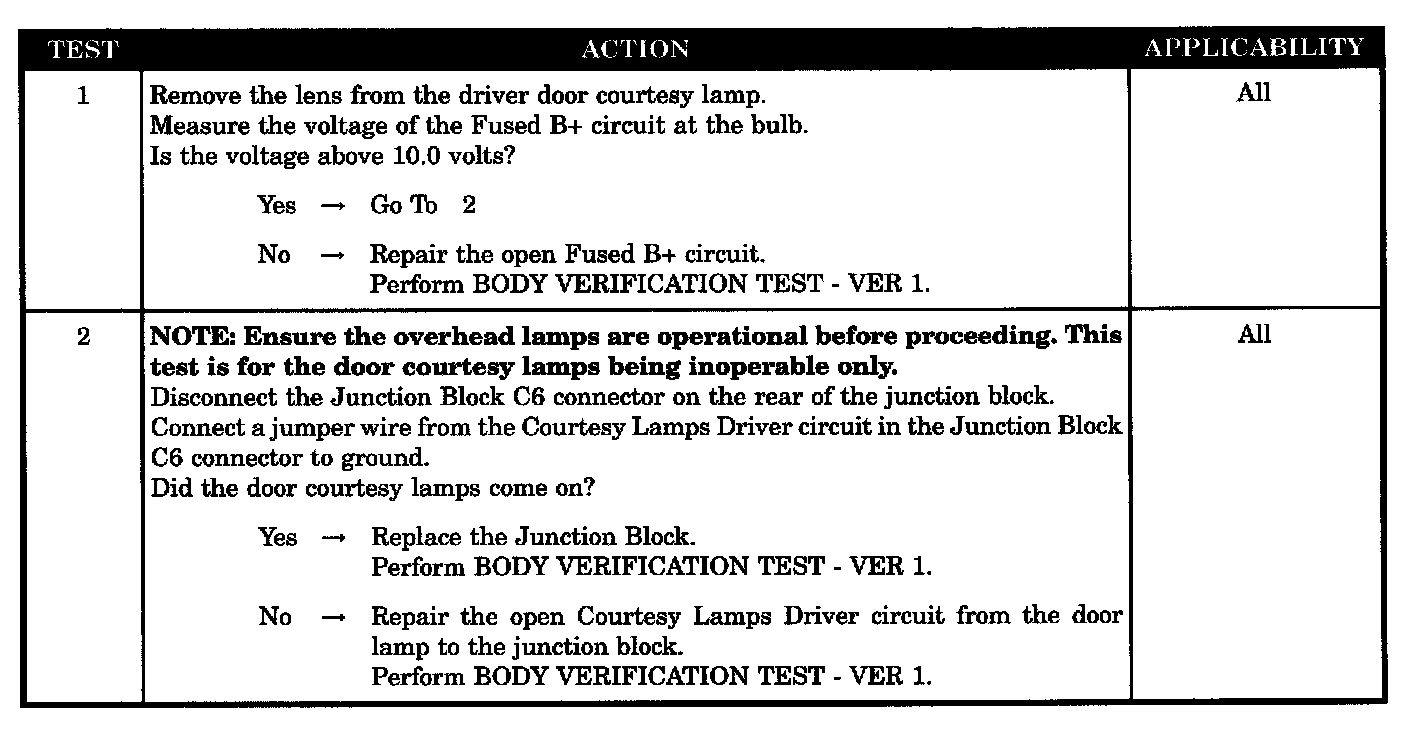

Test 1 - 2:






SYMPTOM
COURTESY LAMPS INOPERATIVE - DOOR LAMPS

POSSIBLE CAUSES
- Open fused B+ circuit
- Courtesy lamp driver circuit open
- Junction block
