Charging Indicator Not Operating Properly

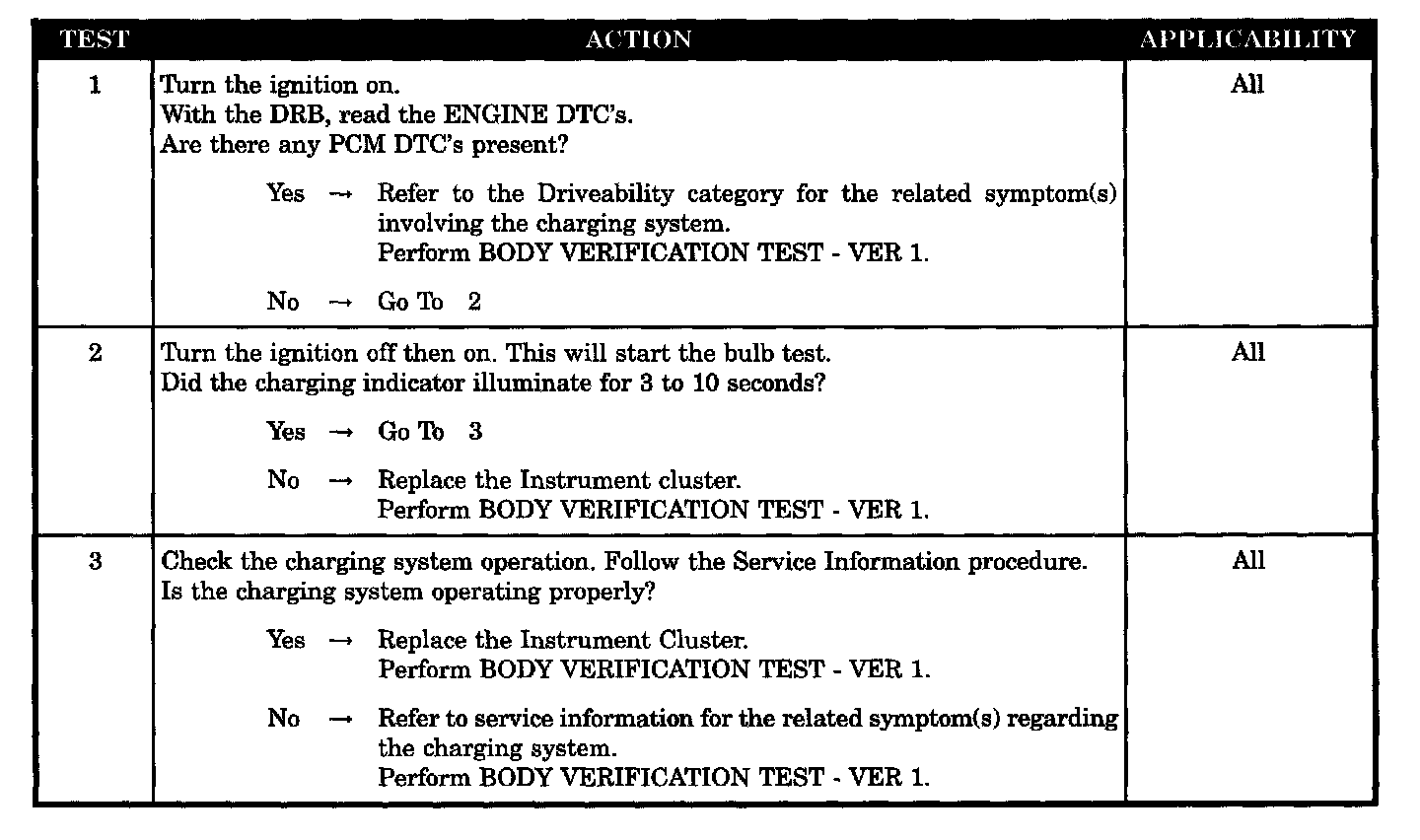

Test 1 - 3:






SYMPTOM
CHARGING INDICATOR NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Instrument cluster
- Check the charging system operation
- Engine trouble codes
- Perform instrument cluster self test
