Blend Door Inoperative

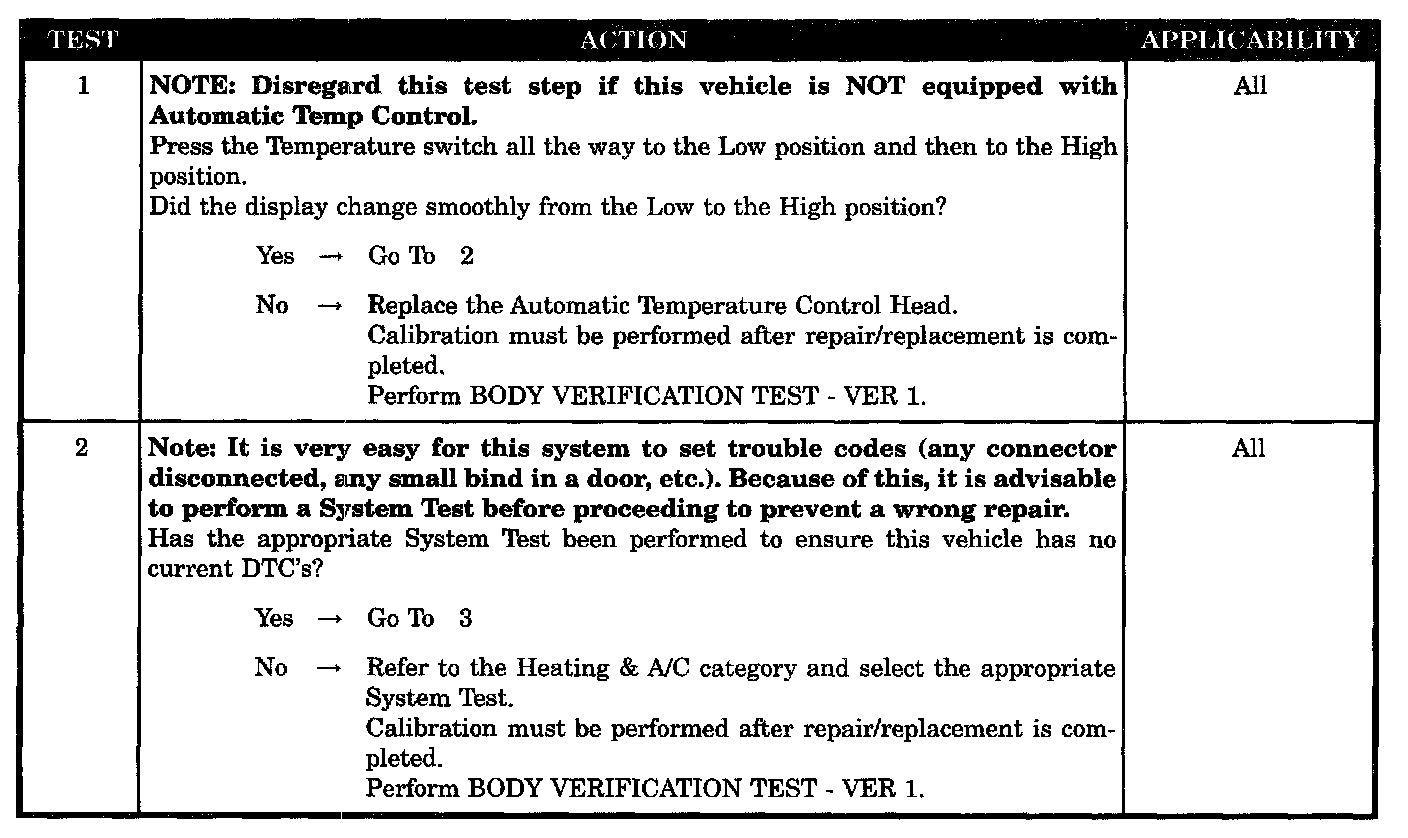

Test 1 - 2:

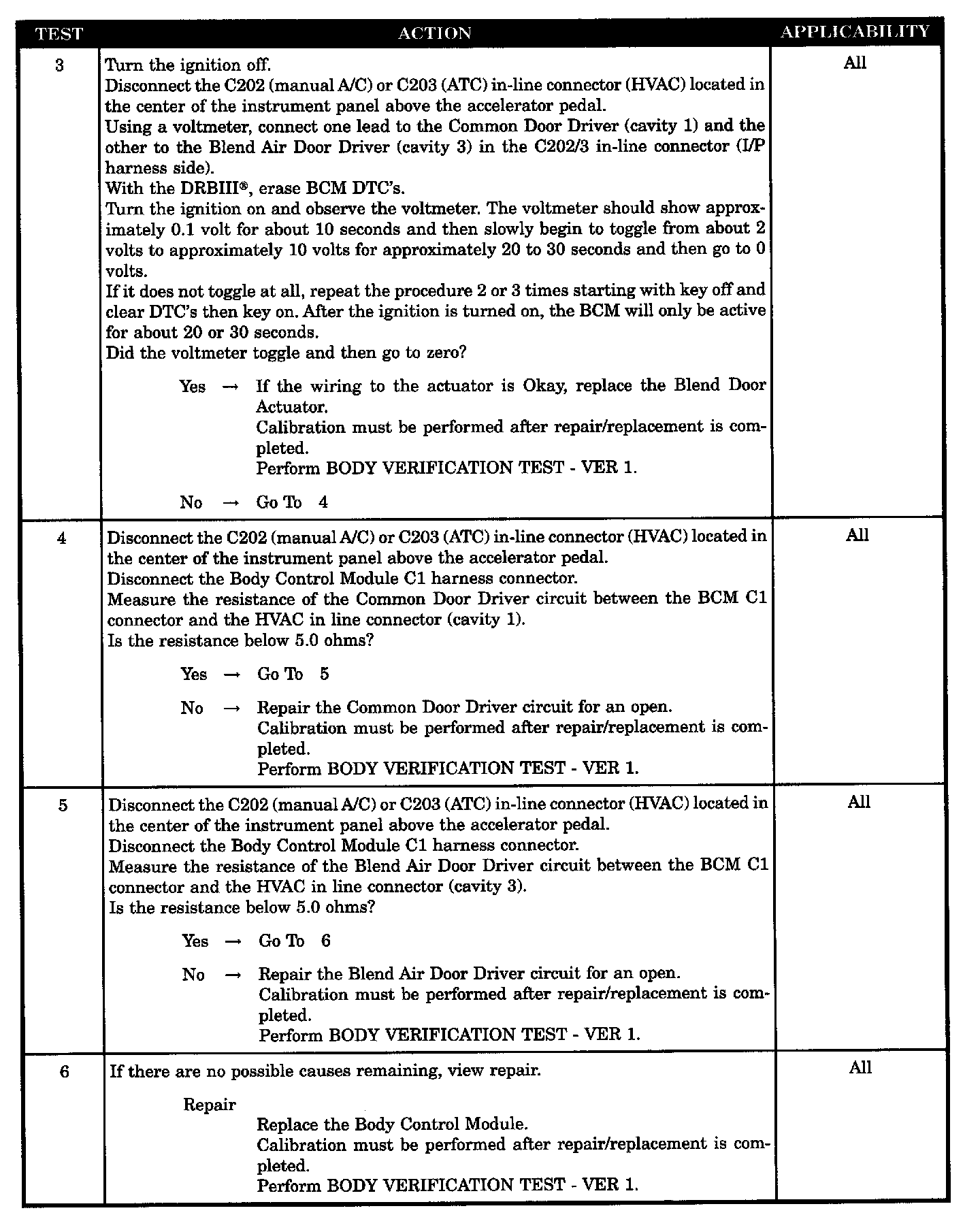

Test 3 - 6:

SYMPTOM
BLEND DOOR INOPERATIVE

POSSIBLE CAUSES
- ATC head blend door buttons open
- Blend door inoperable pre test
- Blend door actuator check
- Common door driver circuit open
- Blend air door driver circuit open
- Body control module
