Power Distribution

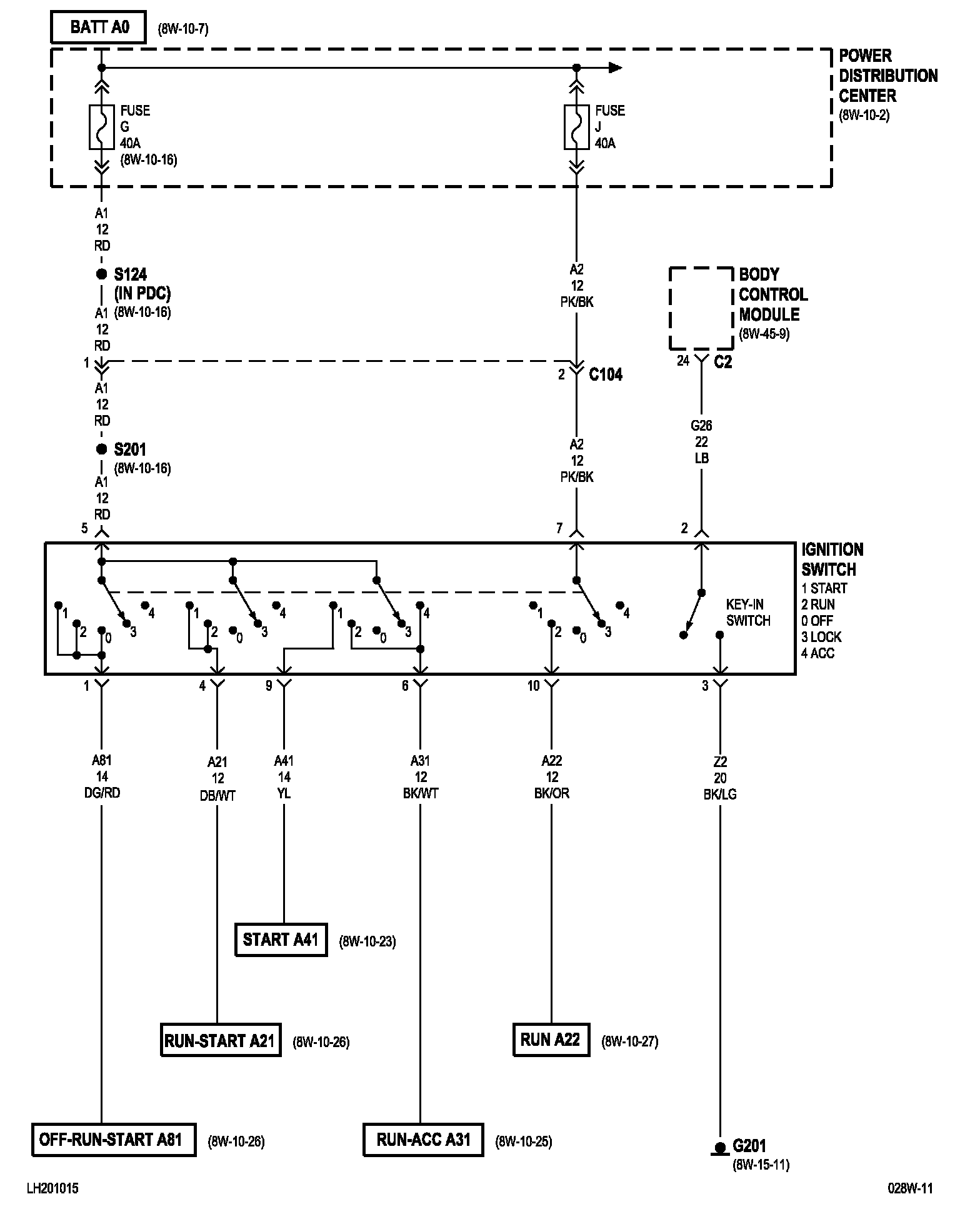

8w-10-7:

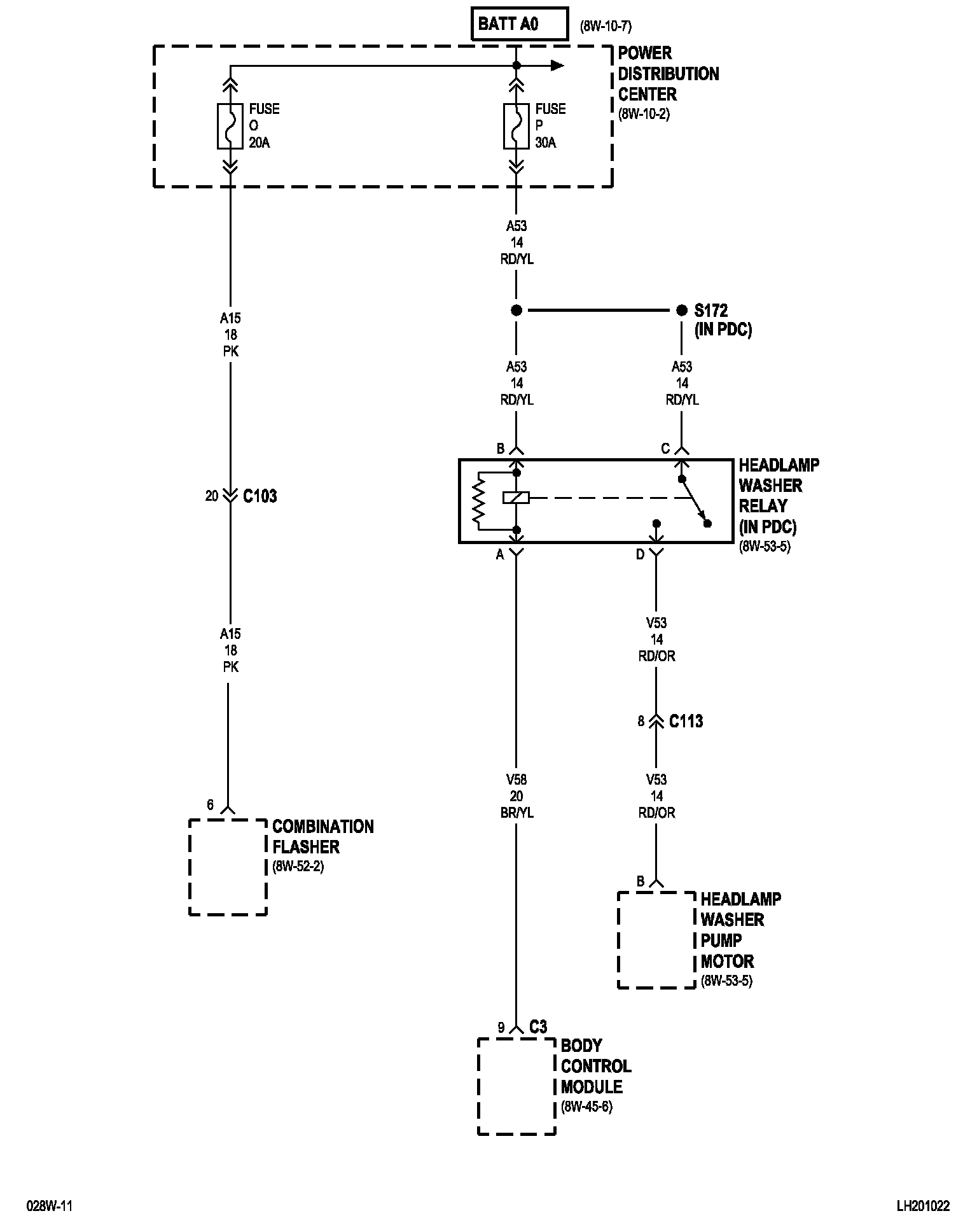

8w-10-8:

8w-10-9:

8w-10-10:

8w-10-11:

8w-10-12:

8w-10-13:

8w-10-14:

8w-10-15:

8w-10-16:

8w-10-17:

8w-10-18:

8w-10-19:

8w-10-20:

8w-10-22 (Built-Up-Export):

8w-10-23:

8w-10-24 (Built-Up-Export):

8w-10-25:

8w-10-26:

8w-10-27:

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
