Turn Signal Lamp Unit Replacement

REMOVAL
1. Open hood, disconnect and isolate the battery negative cable.
2. Remove headlamp unit to access lamp housing.
3. Rotate and pull socket from lamp unit.

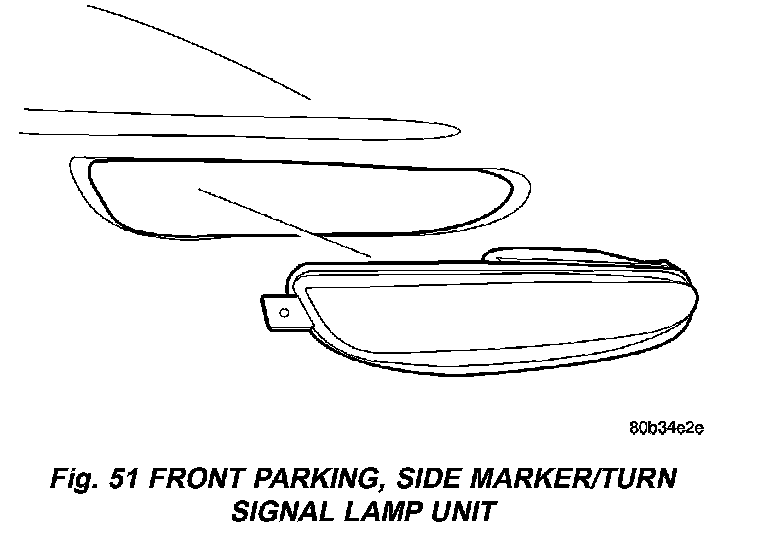

Fig. 51 Front Parking, Side Marker/Turn Signal Lamp Unit:

4. Disconnect fastener attaching lamp unit to fascia.
5. Remove lamp unit from vehicle.

INSTALLATION
1. Place lamp unit in position on fascia.
2. Install lamp unit fastener.
3. Install bulb socket in lamp unit.
4. Connect the battery negative cable.
5. Verify lamp operation.
6. Install headlamp unit.
7. Close hood.
