Park/Turn Signal Lamp Replacement

REMOVAL
Intrepid
1. Open Hood, disconnect and isolate the battery negative cable.
2. Remove headlamp.
3. Rotate and pull socket from lamp housing.

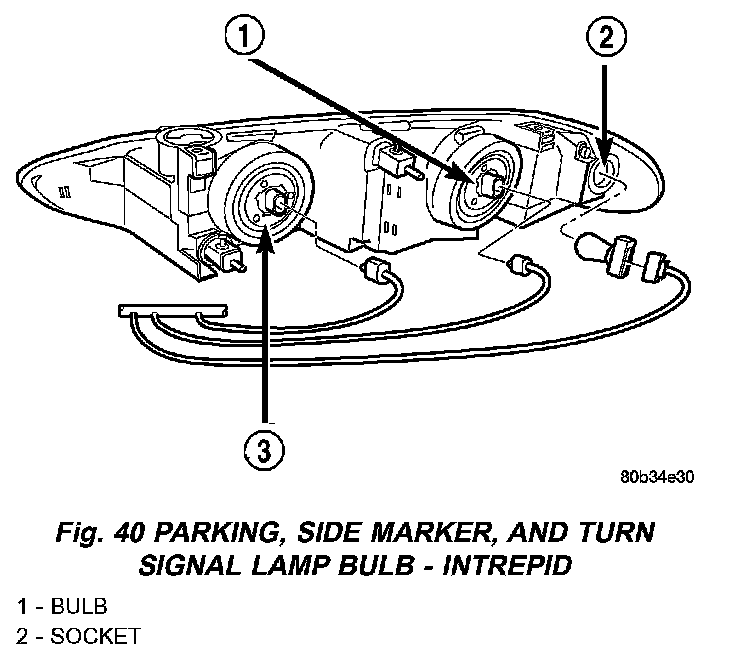

Fig. 40 Parking, Side Marker, And Turn Signal Lamp Bulb - Intrepid:

4. Pull bulb from socket.

300M
1. Open Hood, disconnect and isolate the battery negative cable.

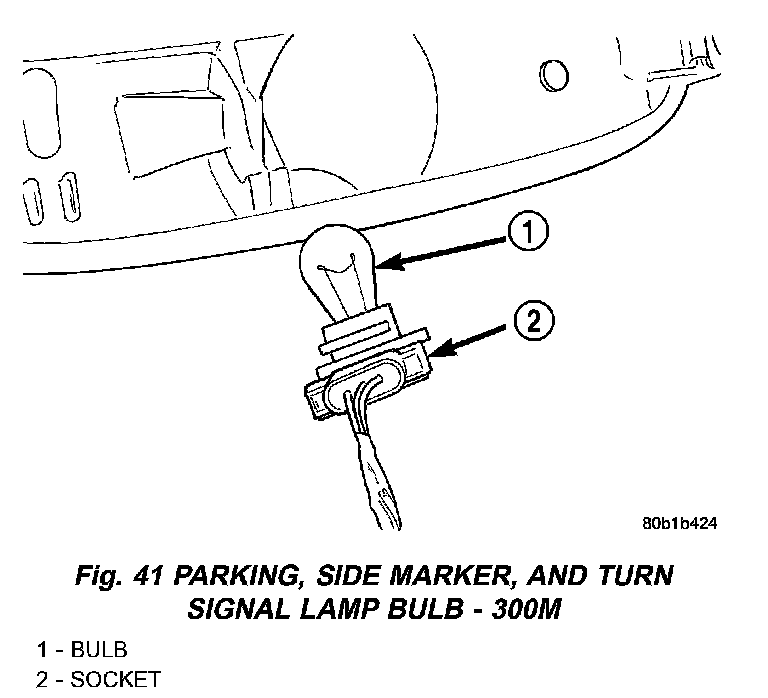

Fig. 41 Parking, Side Marker, And Turn Signal Lamp Bulb - 300M:

2. Reach under the fascia and remove the socket from the lamp housing.
3. Rotate and pull socket from lamp housing.
4. Pull bulb from socket.

Concorde
1. Remove headlamp housing from vehicle.
2. Disconnect wire connector from back of lamp socket(s).
3. Rotate socket and pull lamp socket from headlamp housing.
4. Remove bulb from lamp socket.


INSTALLATION
Intrepid
1. Push bulb into socket.
2. Install the lamp socket into lamp housing.
3. Install the lamp housing.
4. Install the jack screws attaching headlamp to crossmember.
5. Connect the negative battery cable and close hood.

300M
1. Push bulb into socket. Rotate socket.
2. Reach under the fascia and place the socket into the lamp housing and rotate to lock.
3. Connect and the battery negative cable and close hood.

Concorde
1. Push bulb into lamp socket.
2. Place lamp socket into headlamp housing and rotate to the lock position.
3. Connect wire connector to lamp socket(s).
4. Verify headlamp operation.
5. Install headlamp housing.
6. Verify headlamp operation and alignment.
