Side Repeater Lamp Unit - Export

REMOVAL
1. Working in the appropriate front wheel well, remove the rear most fasteners from the front wheelhouse liner

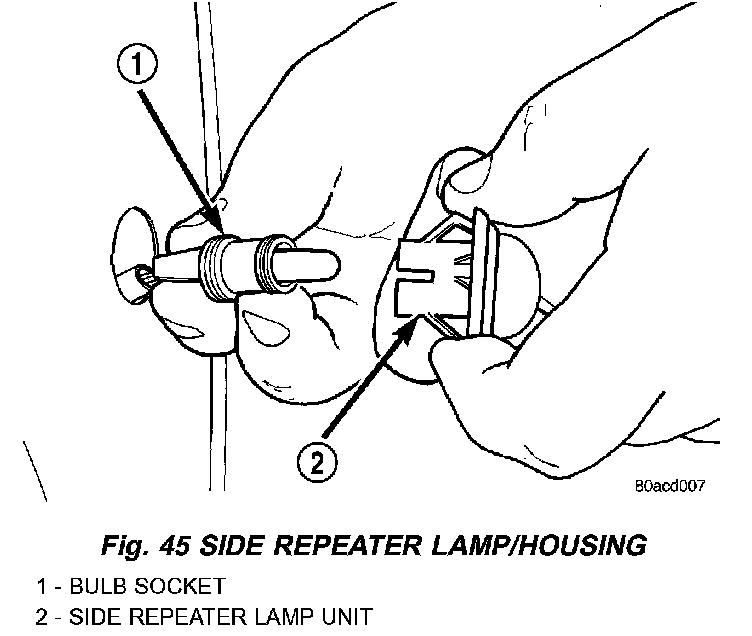

Fig. 45 Side Repeater Lamp/Housing:

2. Reach up behind the side repeater lamp and depress the two lamp housing retaining tabs. Remove the side repeater lamp unit from the fender opening.
3. Rotate the side repeater lamp unit counterclockwise and remove the lamp socket from the lamp unit.

INSTALLATION
1. Install the side repeater lamp socket into the lamp unit.
2. Install the side repeater lamp in the front fender. Be certain lamp is secure within the fender.
3. Install the front wheelhouse liner.
4. Verify lamp operation.
