Trunk Lamp: Service and Repair

DECKLID/TRUNK LAMP

REMOVAL
1. Open hood disconnect and isolate the battery negative cable

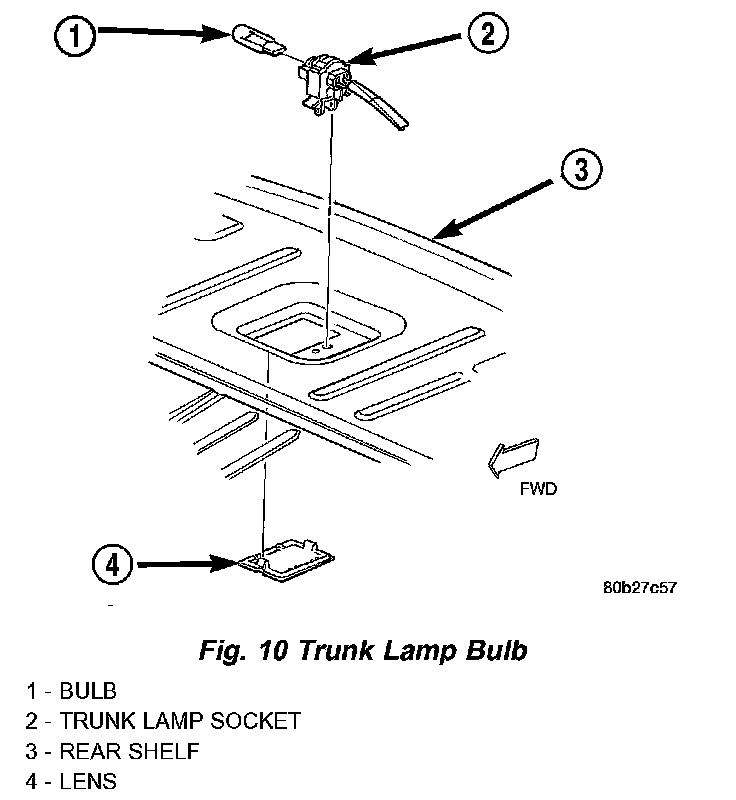

Fig. 10 Trunk Lamp Bulb:

2. Remove lens from lamp from the rear shelf.
3. Pull bulb from socket.

INSTALLATION
1. Insert bulb into socket.
2. Install lamp lens.
3. Connect the battery negative cable and close hood.
