Tail Lamp Unit Replacement
REMOVAL1. Release decklid latch and open decklid.
2. Remove fasteners attaching trunk lining to lower rear trunk panel.
3. Move the trunk lining to access the tail lamp unit fasteners.

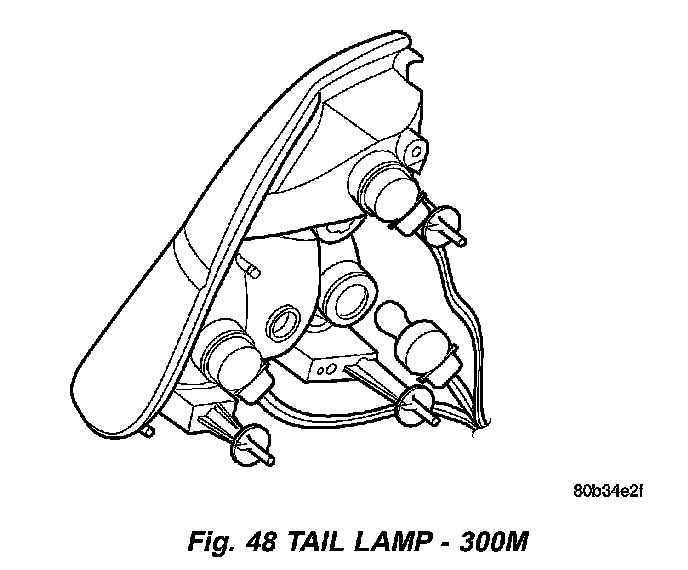

Fig. 48 Tail Lamp - 300M:

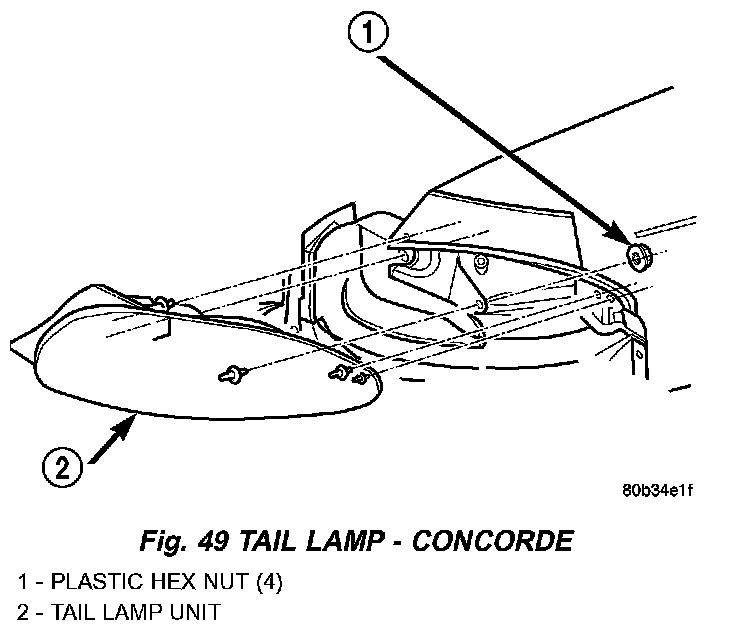

Fig. 49 Tail Lamp - Concorde:
Fig. 50 Tail Lamp - Intrepid:
4. Remove nuts attaching tail lamp unit to lower trunk and quarter panel (Fig. 49), (Fig. 50) and (Fig. 48).
5. Remove tail lamp unit from vehicle.
6. Disconnect tail lamp unit wire connector from body wire harness.
INSTALLATION
1. Connect tail lamp unit wire connector to body wire harness.
2. Place tail lamp unit in position on vehicle.
3. Install nuts to attach tail lamp unit to lower trunk and quarter panel.
4. Place trunk lining in position on lower trunk panel.
5. Install fasteners to attach trunk lining to lower rear trunk panel.
6. Verify lamp operation.
