Tail Lamp Replacement

REMOVAL
1. Release decklid latch and open decklid.
2. Remove trunk lining from rear closure panel as necessary to gain access to tail lamp fasteners.
3. Remove nuts attaching tail lamp to rear closure panel.
4. Remove tail lamp from rear closure panel.

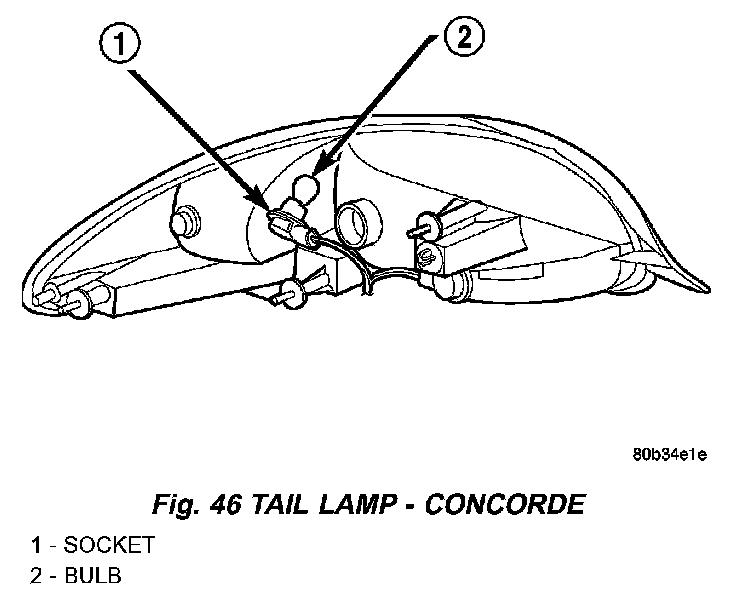

Fig. 46 Tail Lamp - Concorde:

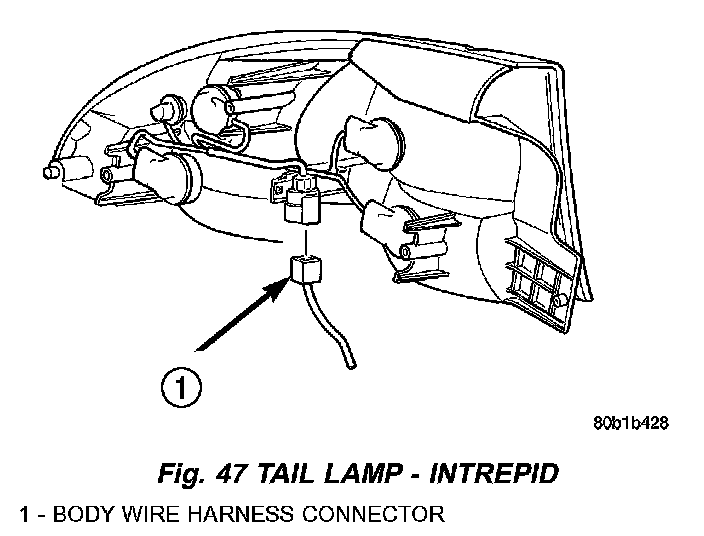

Fig. 47 Tail Lamp - Intrepid:

Fig. 48 Tail Lamp - 300M:

5. Remove socket(s) from tail lamp unit (Fig. 46), (Fig. 47), and (Fig. 48).
6. Pull lamp from socket.

INSTALLATION
1. Push lamp into socket.
2. Install socket(s) in tail lamp unit.
3. Place tail lamp unit in position on rear closure panel.
4. Install nuts attaching tail lamp unit to rear closure panel.
5. Install trunk lining.
6. Connect the battery negative cable and close hood.
7. Verify lamp operation.
