Marker Lamp Unit Replacement

REMOVAL
1. Loosen fascia as necessary to access lamp.
2. Remove bulb socket from lamp.

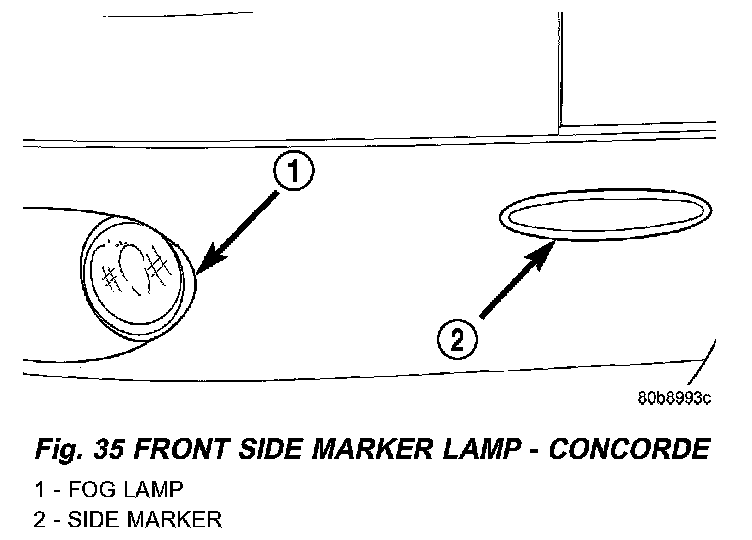

Fig. 35 Front Side Marker Lamp - Concorde:

3. Disconnect fasteners attaching side marker lamp to fascia (Fig. 35).
4. Remove attaching fasteners.
5. Remove lamp unit from vehicle.

INSTALLATION
1. Place lamp in position on fascia.
2. Install lamp fasteners.
3. Install bulb socket in lamp.
4. Connect wire harness connector.
5. Verify lamp operation.
6. Attach fascia to vehicle.
