Headlamp Replacement
REMOVALConcorde/300M
NOTE: Headlamp lens fogging is a normal condition and does not require service unless excessive or continual. Moisture will vent from tubes or vents located on the back of the lamp.
1. Remove headlamp unit. Refer to Electrical, Lamps/Lighting - Exterior, Headlamp Unit, REMOVAL.

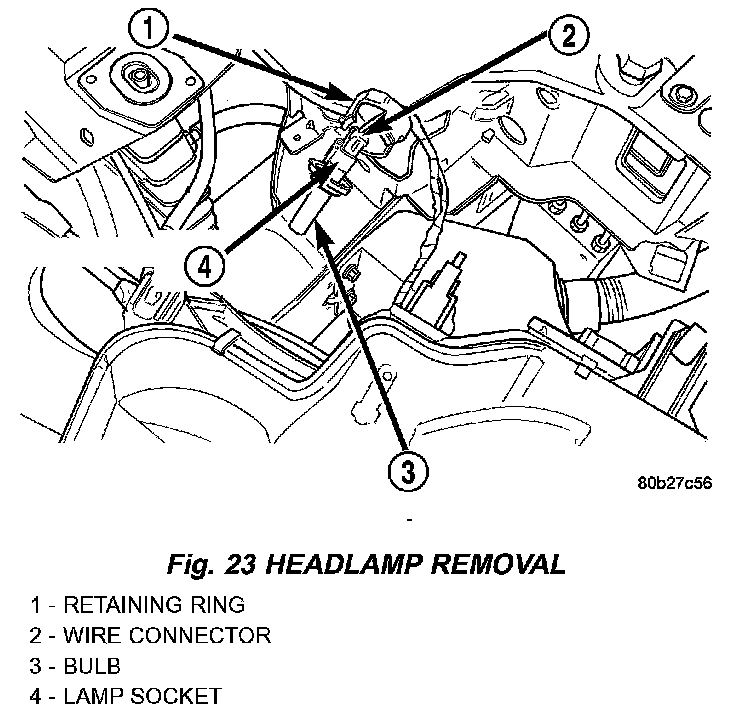

Fig. 23 Headlamp Removal:
2. Rotate retaining ring (High beam or Low beam) and pull lamp socket from headlamp housing (Fig.23).
CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.
3. Remove bulb from lamp wiring connector.
Intrepid
NOTE: Headlamp lens fogging is a normal condition and does not require service unless excessive or continual. Moisture will vent from tubes or vents located on the back of the lamp.
1. Release hood latch and open hood.
2. Disconnect and isolate the battery negative cable.
3. Remove jackscrews attaching headlamp unit to crossmember and remove to access the lamp(s).

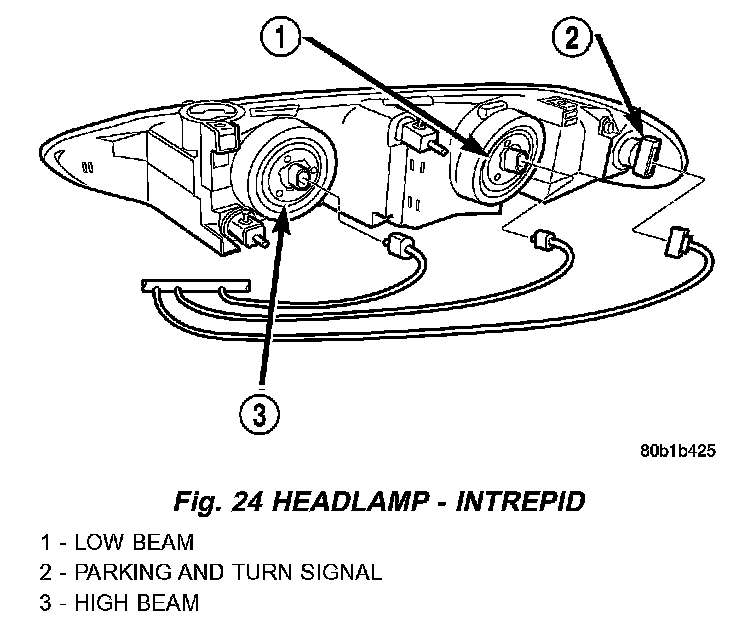

Fig. 24 Headlamp - Intrepid:
4. Disconnect wire connector from back of lamp socket.
CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.
5. Rotate bulb (High beam or Low beam) and pull from headlamp unit.
INSTALLATION
Concorde/300M
CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.
1. Install the headlamp wiring connector.
2. Place lamp into socket and rotate retaining ring (High beam or Low beam) to headlamp housing.
3. Install the headlamp unit. Refer to Electrical, Lamps/Lighting - Exterior, Headlamp Unit, INSTALLATION.
Intrepid
CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.
1. Rotate bulb (High beam or Low beam) and push into headlamp unit.
2. Connect wire connector to the back of lamp socket.
3. Install the jackscrews attaching headlamp unit to crossmember.
4. Connect the battery negative cable.
5. Close the hood.
