Headlamp Switch Test

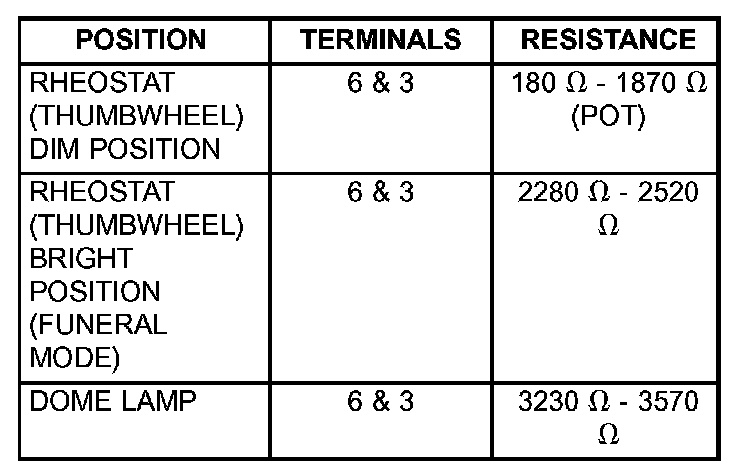

Headlamp Switch Resistance (Part 1 Of 2):

Headlamp Switch Resistance (Part 2 Of 2):

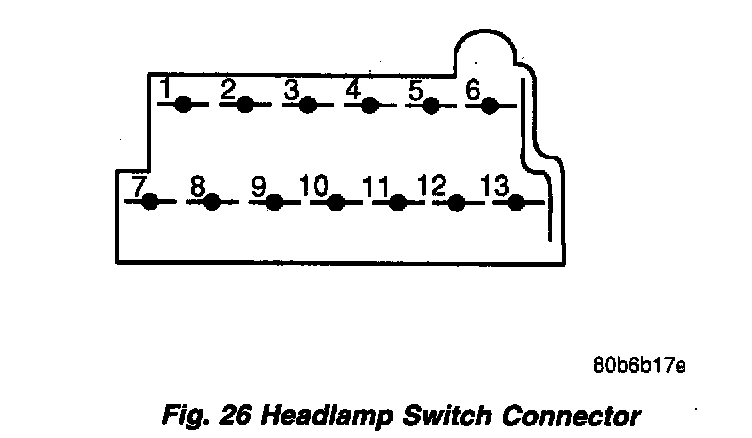

Fig.26 Headlamp Switch Connector:

Using an ohmmeter, test for resistance values between the terminals of the switch as shown in the Headlamp Switch Resistance table and.
