Home >> Chrysler >> 2002 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Motor >> Diagrams

Headlamp Motor: Diagrams

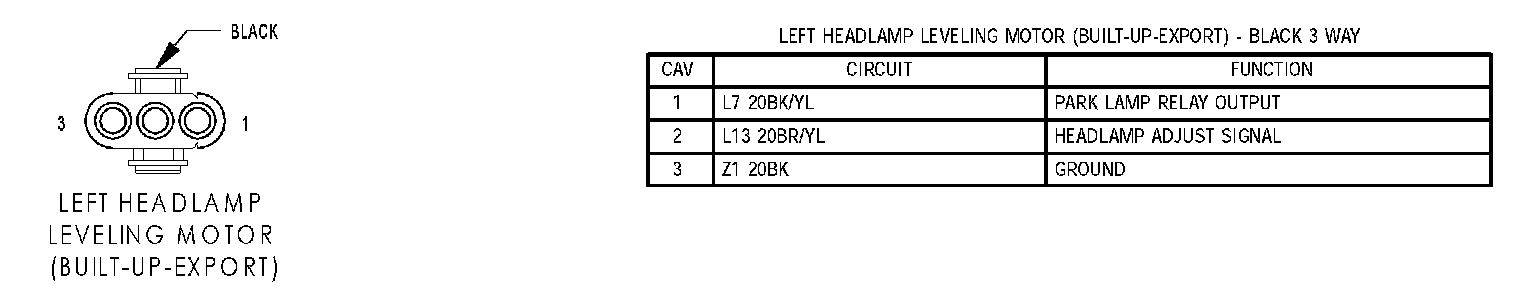

Left Headlamp Leveling Motor (Built-Up-Export):

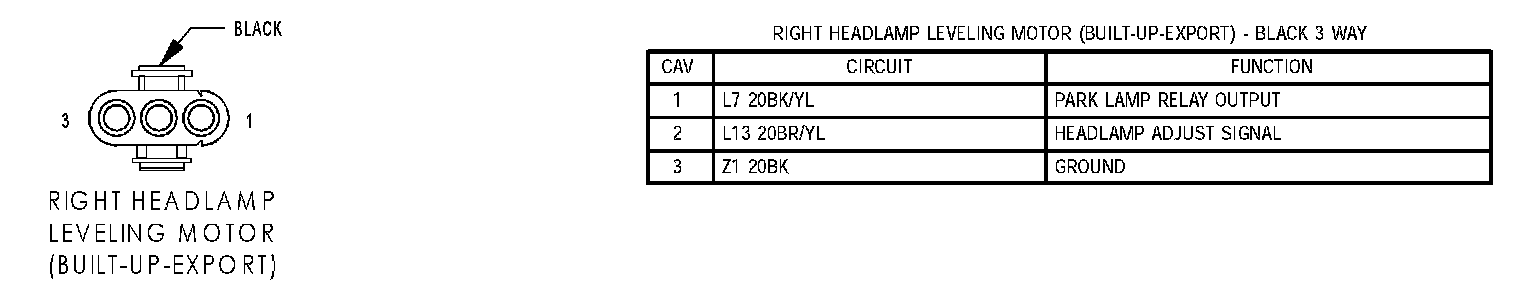

Right Headlamp Leveling Motor (Built-Up-Export):
