Rear Fog Lamp Replacement - Export

REMOVAL
1. Remove the tail lamp from the vehicle.

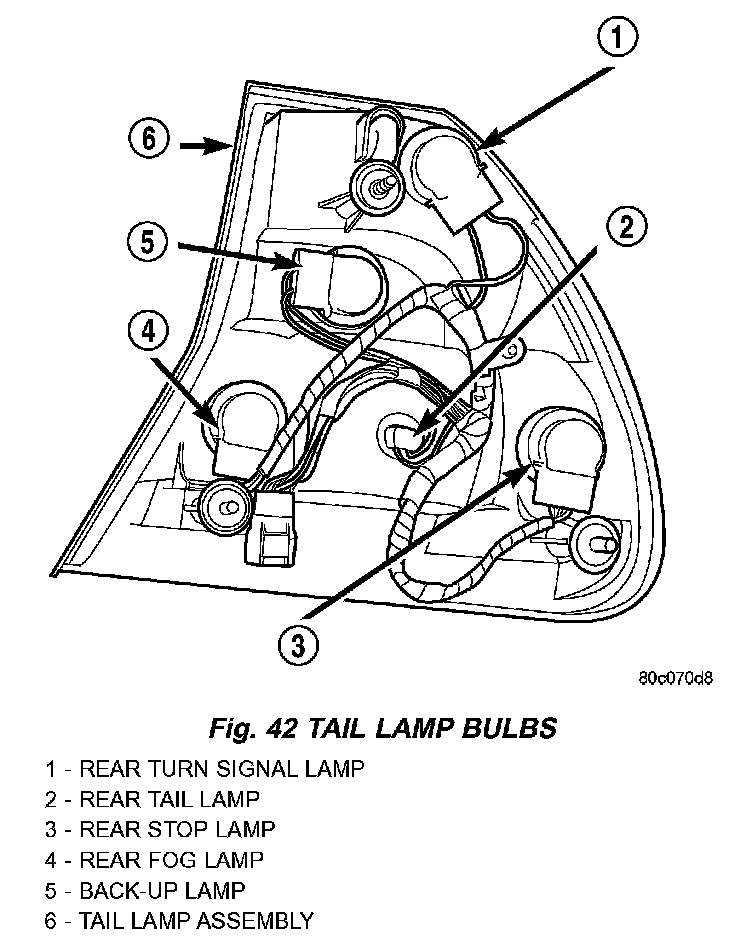

Fig. 42 Tail Lamp Bulbs:

2. Rotate the rear fog lamp socket one-third turn and pull from lamp housing (Fig. 42).
3. Pull the rear fog lamp bulb straight from its socket.

INSTALLATION
1. Install the rear fog lamp bulb and socket in the lamp housing (Fig. 42).
2. Verify lamp operation.
3. Install the tail lamp assembly in the vehicle.
