Fog Lamp Replacement

REMOVAL
Intrepid/300M
1. Remove fog lamp housing screw in front fascia and pull lamp housing from the fascia.
2. Remove rear cover from fog lamp housing.
3. Disengage wire clip holding bulb in fog lamp.
4. Hinge wire clip out of bulb removal path.

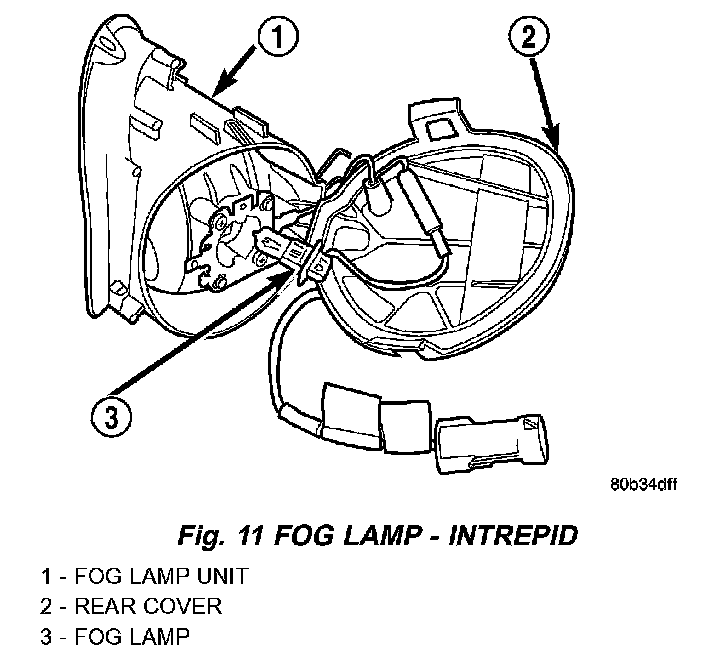

Fig. 11 Fog Lamp - Intrepid:

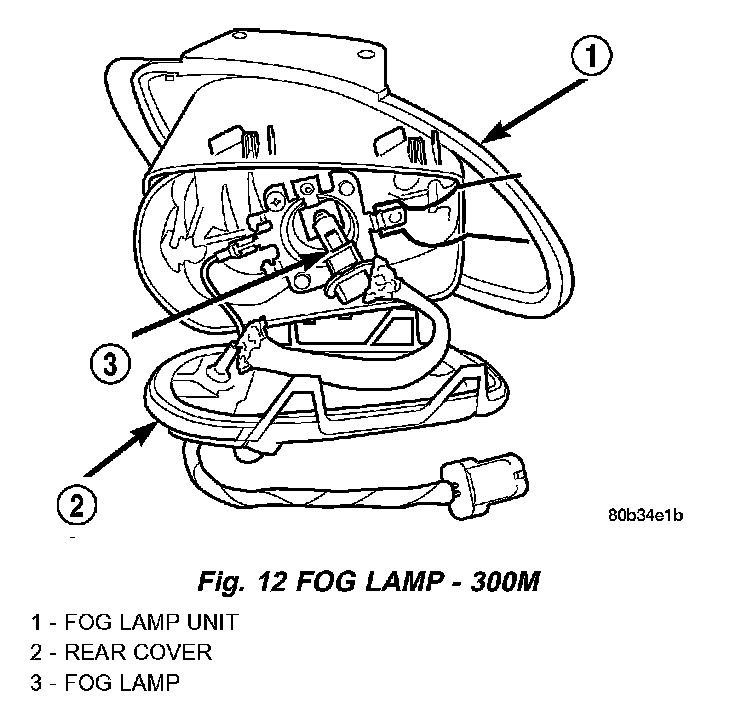

Fig. 12 Fog Lamp - 300M:

5. Pull bulb from lamp housing or.
6. Disengage wire connector from fog lamp wire harness.

Concorde
1. Remove fog lamp housing screw in front fascia and pull lamp housing from the front fascia.

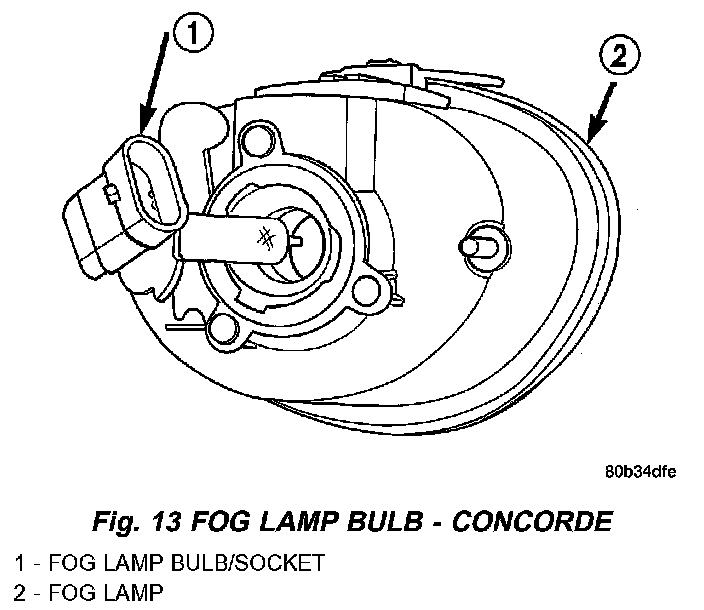

Fig. 13 Fog Lamp Bulb - Concorde:

2. Disconnect wire connector from fog lamp socket.
3. Rotate socket and pull bulb/socket from lamp housing.

INSTALLATION
Intrepid/300M

CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.

1. Connect wire connector to fog lamp wire harness.
2. Cover exposed terminal with teflon coated sleeve.
3. Insert bulb into lamp housing.
4. Hinge wire clip over bulb base.
5. Engage wire clip to hold bulb in fog lamp.
6. Install rear cover to fog lamp housing.
7. Verify fog lamp operation and alignment.
8. Install fog lamp housing screw to the front fascia.

Concorde

CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.

1. Install socket into fog lamp housing and rotate to the lock position.
2. Connect wire connector to the socket.
3. Verify fog lamp operation and alignment.
4. Install fog lamp housing into fascia.
5. Install fog lamp screw to the front fascia
