Fog/Driving Lamp: Application and ID

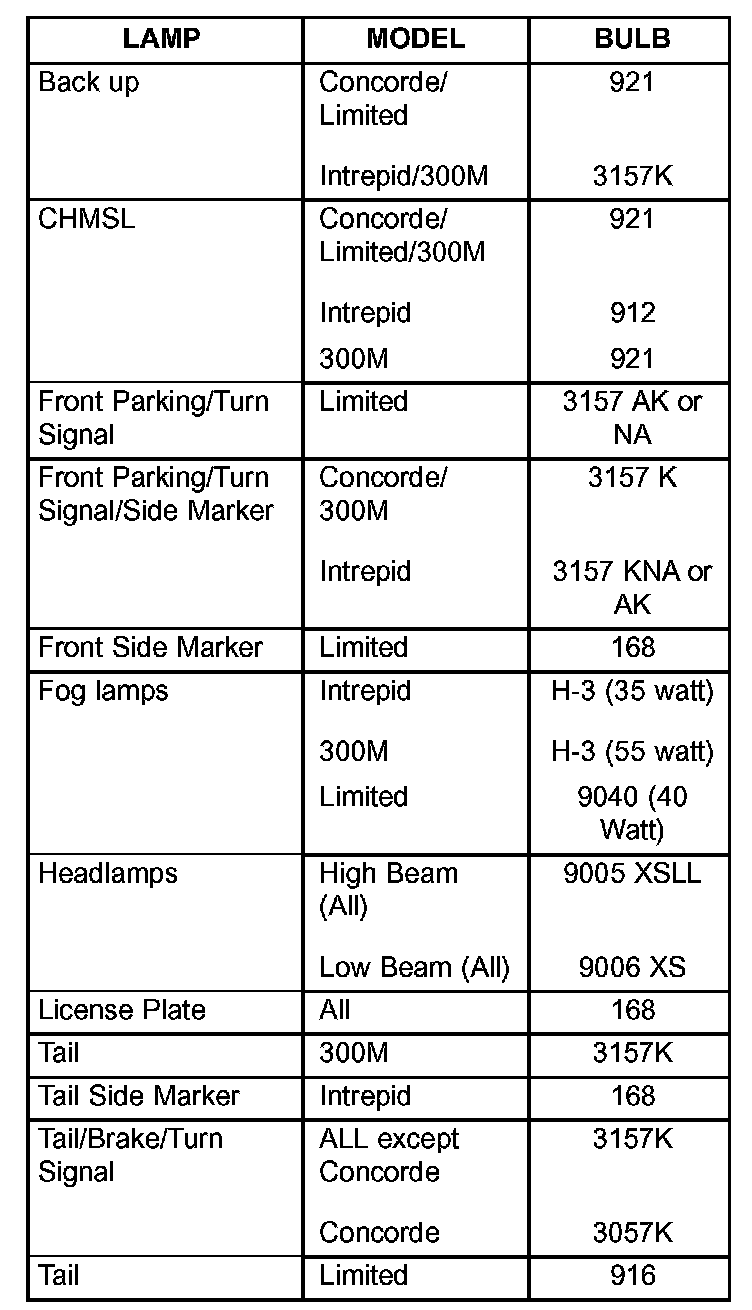

Bulb Application Table:





CAUTION:
- Do not use bulbs other than those listed in the Bulb Application Table. Damage to lamp can result.
- Do not touch halogen bulbs with fingers or other oily surfaces. Bulb life will be reduced.

Bulb Application Table
Fog Lamps
Intrepid H3 (35 watt)
300M H3 (55 watt)
Limited 9040 (40 watt)
Front Fog (Export) H3 (55 watt)
Rear Fog (Export) P2717W
