Fog/Driving Lamp: Adjustments

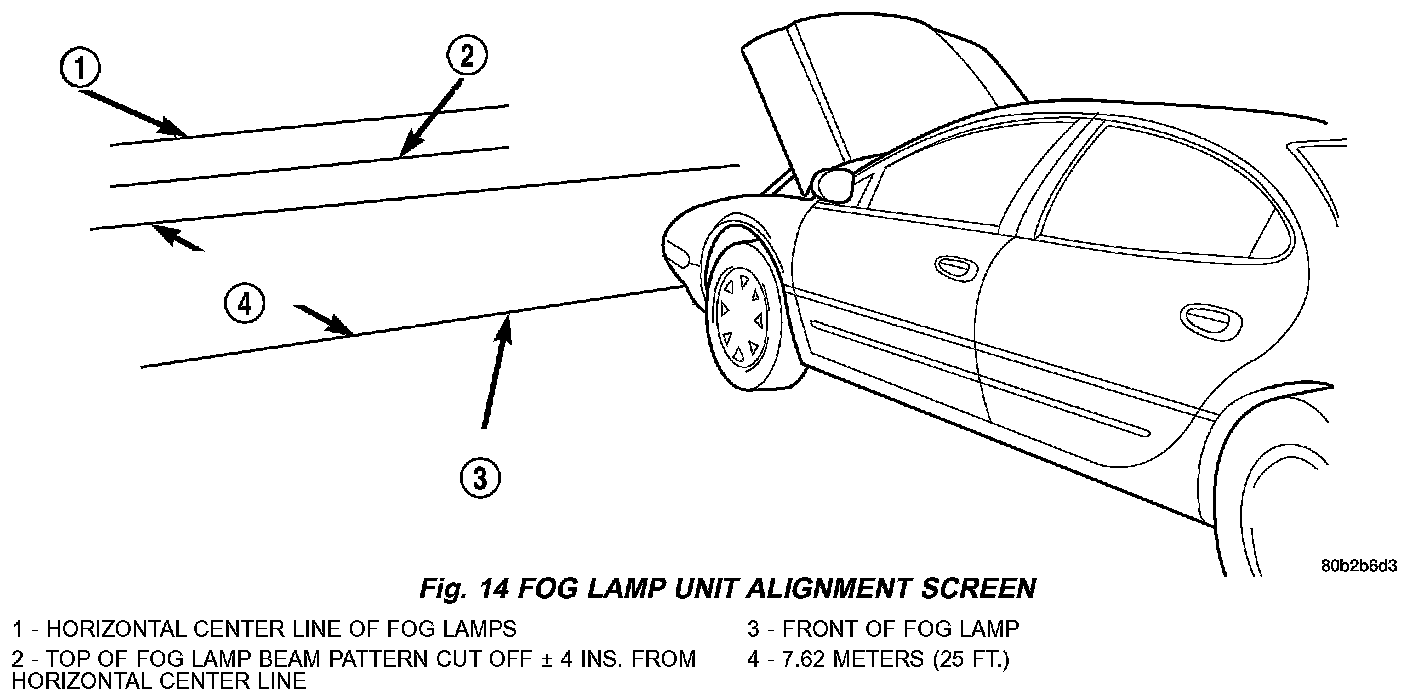

Fig. 14 Fog Lamp Unit Alignment Screen:

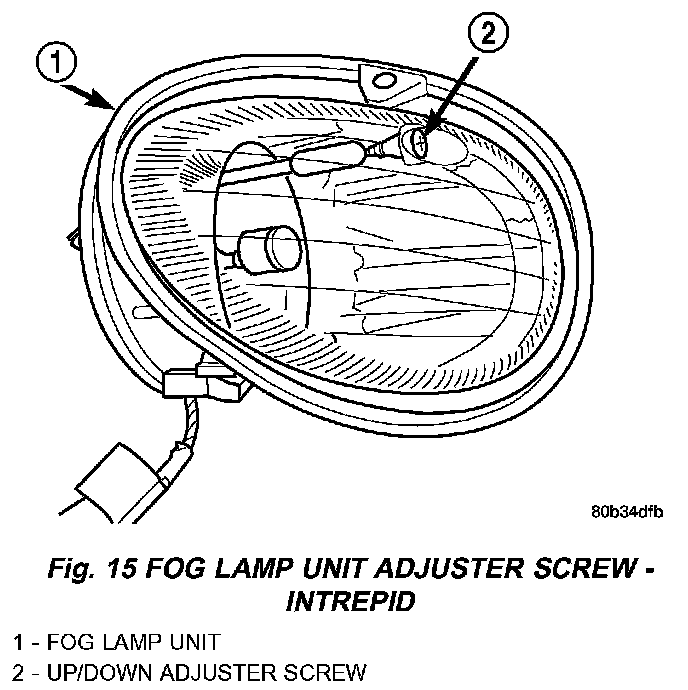

Fig. 15 Fog Lamp Unit Adjuster Screw - Intrepid:

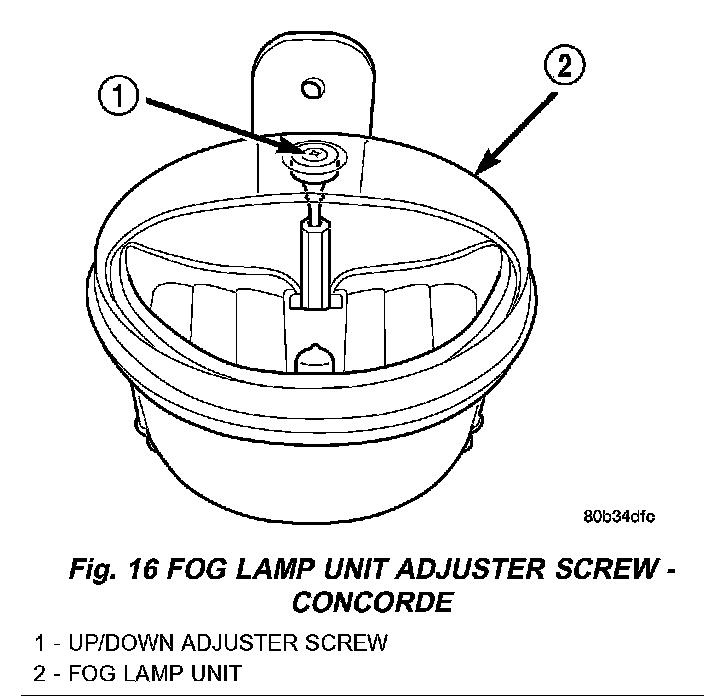

Fig. 16 Fog Lamp Unit Adjuster Screw - Concorde:

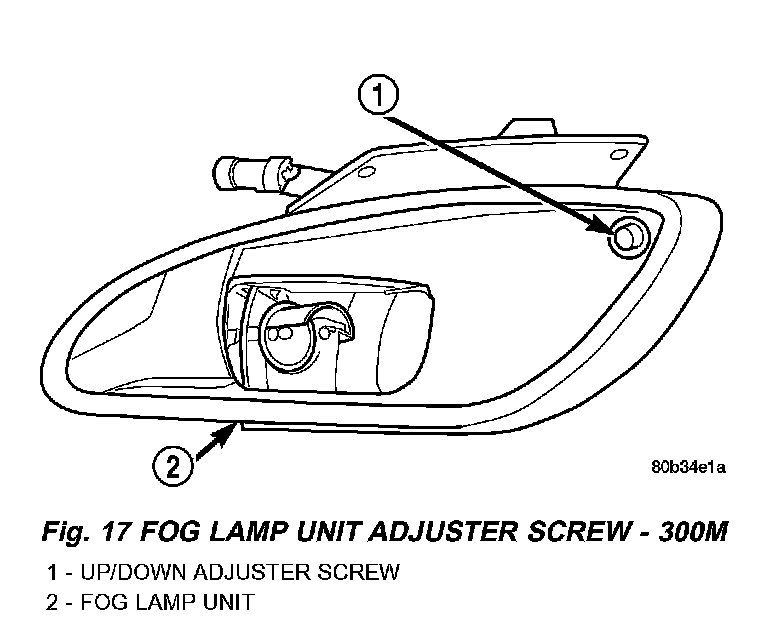

Fig.17 Fog Lamp Unit Adjuster Screw - 300M:

STANDARD PROCEDURE - FOG LAMP UNIT ALIGNMENT
Prepare an alignment screen. Refer to Electrical, Lamps/Lighting - Exterior, Headlamp, Adjustments for Alignment Screen Preparation. A properly aligned fog lamp will project a pattern on the alignment screen 100 mm (4 in.) below the fog lamp center line and straight ahead. To adjust fog lamp alignment, rotate the alignment screw, or.
