Center Mounted Brake Lamp Replacement
REMOVALConcorde
1. Open hood, disconnect and isolate the battery negative cable.
2. Release decklid latch and open decklid.

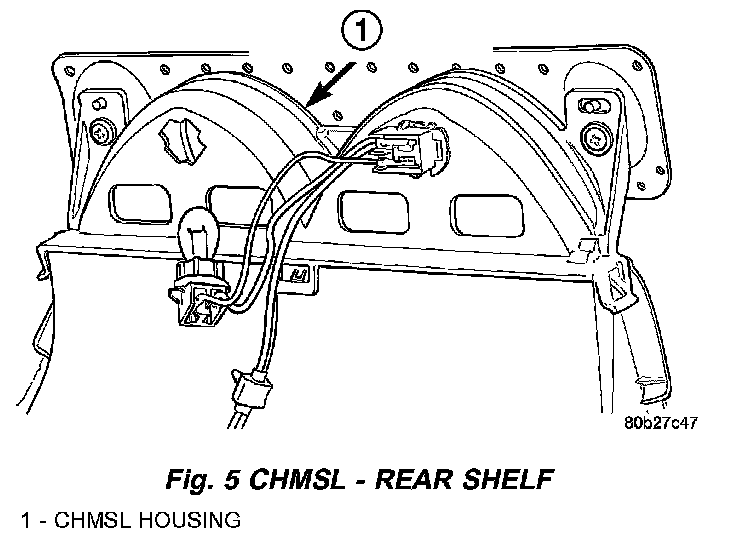

Fig. 5 CHMSL - Rear Shelf:
3. From under rear shelf panel, disconnect the lamp socket from the CHMSL housing.
4. Remove bulb from the socket.
Intrepid
1. Open hood, disconnect and isolate the battery negative cable.
2. Release decklid latch and open decklid.
3. Remove decklid cover.
CHMSL:
4. Disconnect lamp socket from housing.
5. Remove bulb from socket.
300M
1. Open hood, disconnect and isolate the battery negative cable.
2. Release decklid latch and open decklid.
3. Remove decklid cover.
CHMSL:
4. Disconnect lamp socket(s) from housing (Fig.7).
5. Remove bulb(s) from socket(s).
INSTALLATION
Concorde
1. Install the bulb into the socket.
2. Install socket into CHMSL housing.
3. Connect the battery negative cable and close the hood.
4. Verify CHMSL operation.
Intrepid
1. Install bulb into socket.
2. Install socket into housing.
3. Connect negative battery cable and close hood.
4. Verify CHMSL operation.
5. Install decklid cover.
300M
1. Install bulb(s) in socket(s).
2. Install socket(s) into housing.
3. Connect battery negative cable and close hood.
4. Verify CHMSL operation.
5. Install decklid cover.
