Center High Mounted Stop Lamp Unit (CHMSL) Replacement

REMOVAL
Concorde
1. Open hood, disconnect and isolate the battery negative cable.
2. Release decklid latch and open decklid.
3. From under rear shelf panel, disconnect CHMSL wire connector from body harness.
4. Remove rear shelf upper panel.

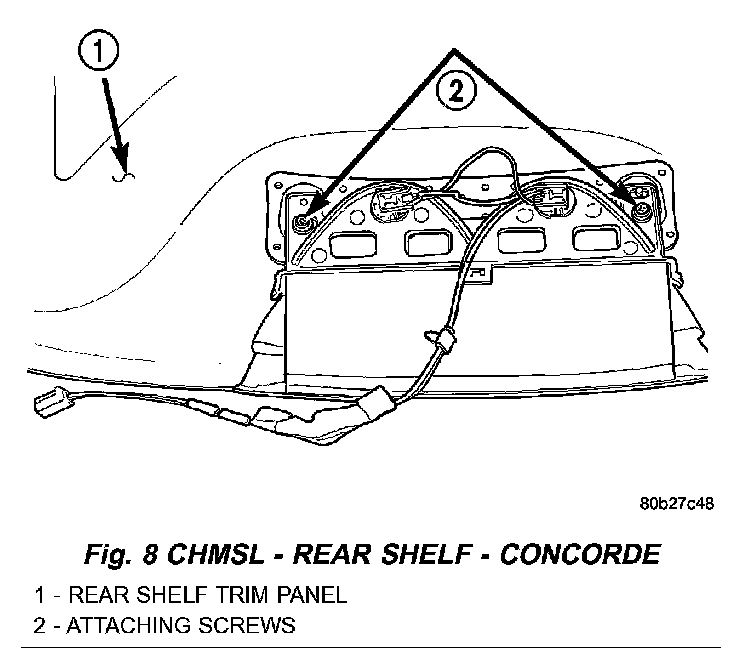

Fig. 8 CHMSL - Rear Shelf - Concorde:

5. Remove fasteners attaching the CHMSL to rear shelf upper panel.
6. Remove CHMSL from rear shelf upper panel.

Intrepid
1. Release decklid latch and open decklid.
2. Remove decklid cover.

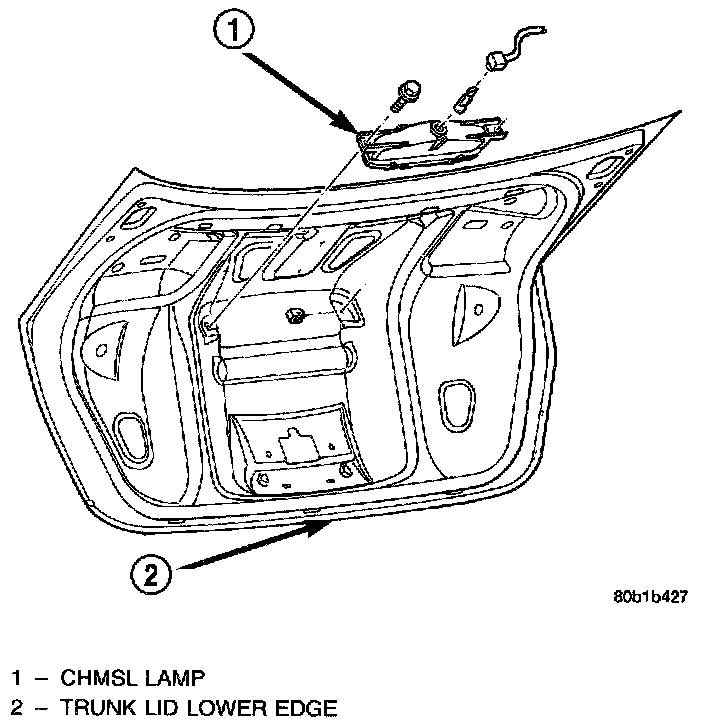

CHMSL:

3. Disconnect CHMSL wire connector from body harness.
4. Remove fasteners attaching CHMSL and applique to the decklid.
5. Remove CHMSL from decklid.

300M
1. Release decklid latch and open decklid.
2. Remove decklid cover.

CHMSL:

3. Disconnect CHMSL wire connector from body harness.
4. Remove fasteners attaching CHMSL to the decklid.
5. Remove CHMSL from decklid.

INSTALLATION
Concorde
1. Place CHMSL in position on rear shelf upper panel.
2. Install fasteners to attach CHMSL to rear shelf upper panel.
3. Install rear shelf upper panel.
4. Connect CHMSL wire connector to body harness.
5. Connect the battery negative cable and close hood.
6. Verify CHMSL operation.

Intrepid
1. Place CHMSL in position on decklid.
2. Install fasteners attaching CHMSL and applique to decklid.
3. Connect CHMSL wire connector to body harness.
4. Verify CHMSL operation.
5. Install decklid cover.

300M
1. Place CHMSL in position on decklid.
2. Install fasteners attaching CHMSL to decklid.
3. Connect CHMSL wire connector to body harness.
4. Verify CHMSL operation.
5. Install decklid cover.
