Instrument Panel Bulb: Service and Repair

CLUSTER LAMPS

REMOVAL
To service instrument cluster lamps, the cluster must be removed from the instrument panel (Refer to ELECTRICAL/INSTRUMENT CLUSTER - REMOVAL).

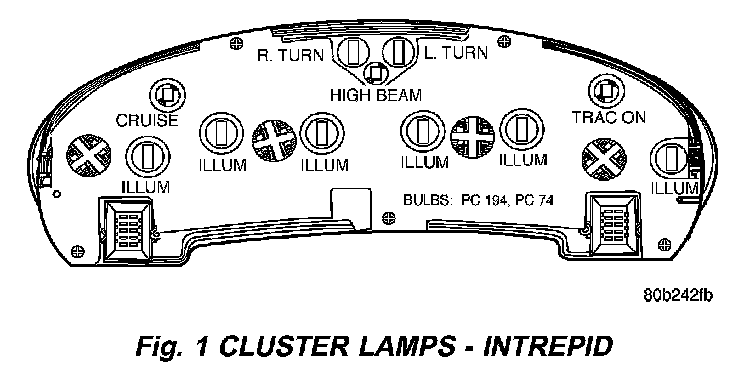

Fig. 1 Cluster Lamps - Interpid:

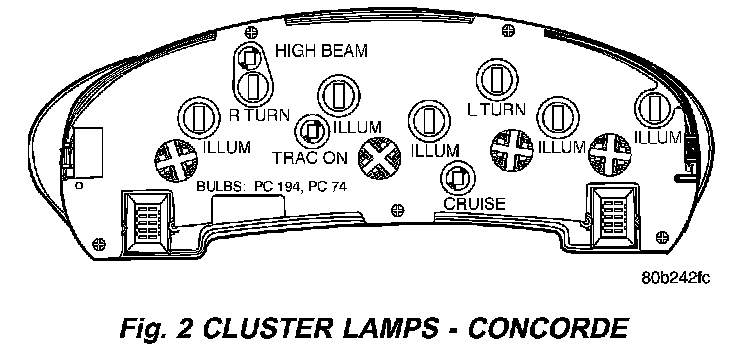

Fig. 2 Cluster Lamps - Concorde:

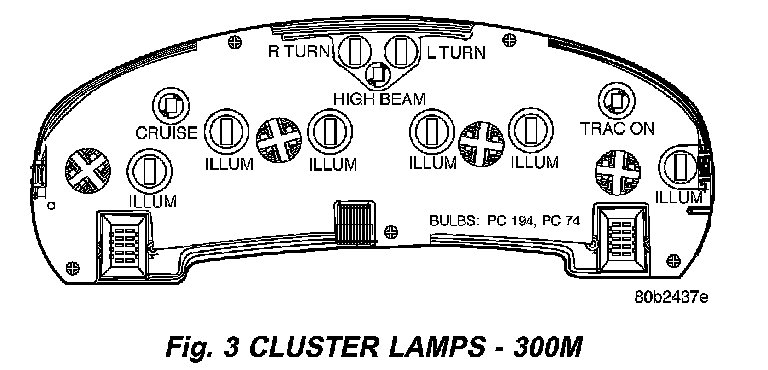

Fig. 3 Cluster Lamps - 300M:

Refer to (Fig. 1), (Fig. 2), and (Fig. 3) for cluster lamp locations.

Fig. 1 Cluster Lamps - Intrepid:

Fig. 2 Cluster Lamps - Concorde:

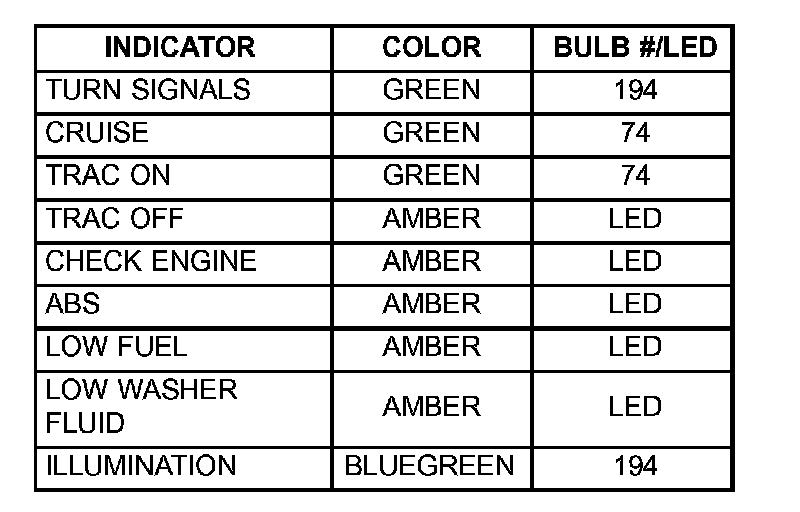

The illumination/indicator lamps that ARE replaceable are called out on the back cover of the instrument cluster. All other indicators are Light Emitting Diodes (LED's), and are serviced with the cluster assembly. If a LED is non-functional, the entire instrument cluster must be replaced. Refer to the INDICATORS - BULBS table for applications.

INSTALLATION
(Refer to ELECTRICAL/INSTRUMENT CLUSTER - INSTALLATION).
